Description:

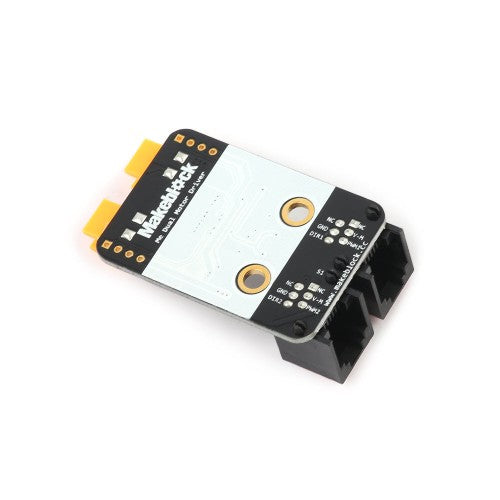

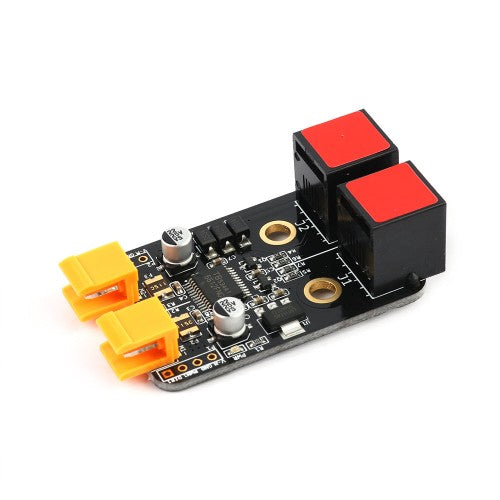

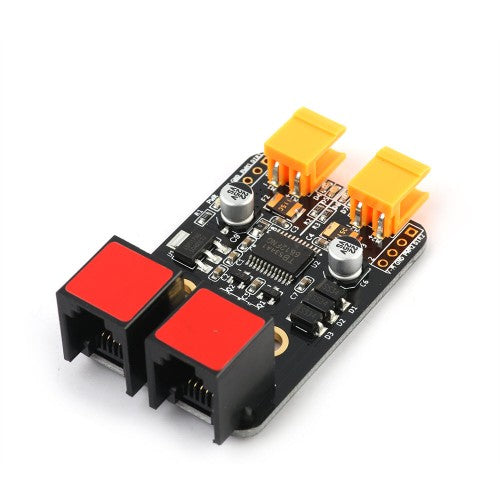

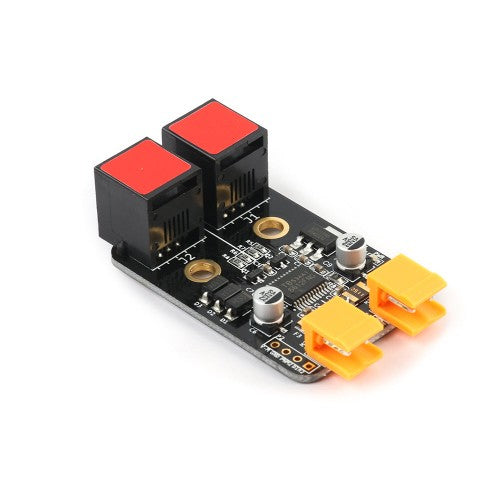

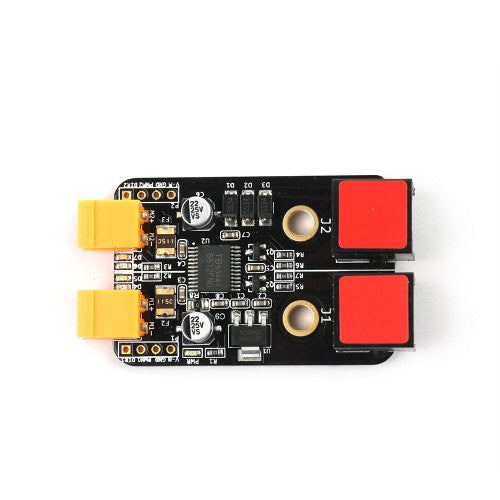

Makeblock Me Dual DC Motor Driver is the improvement version of Me Motor Driver V2.1. With on board RJ25 ports, you can drive two DC motors at a constant current of 1A (2A peak). The motor driver IC on the board is TB6612, TB6612 is a high efficiency MOSFET driver, with low heat dissipation. Over current protection included to stop the driver IC burned out. This is the DC Motor Driver, get encoder motor driver here.
Features:
- TB6612PNG motor driver IC with High efficient MOSFET-based H-bridges
- Comes with Arduino library for easy programming
- 6 V to 12 V motor supply range
- 1 A maximum continuous current per motor (2 A peak)
- Over-current protection
- Easy wiring with RJ25 interface
- Labeled with red tag and compatible with Me BaseShield or Me Baseboard
- 2.54mm breakout pins for connecting with jumper wires
General specifications:
- Motor channels: 2
- Minimum operating voltage: 6 V
- Maximum operating voltage: 12 V
- Continuous output current per channel: 1 A
- Peak output current per channel: 2 A
For more information about this product, please visit our wiki page.
If you have any questions about this product or you need technical support, please post it in our forum.
- Reviews
- Questions
AustraliaME Auriga and DC Motor Driver
I am experimenting with building a robot for P-6 Sumo events and these two items, along with a light sensor, are the base for this. These components are easy to use and very convenient.
