Description:

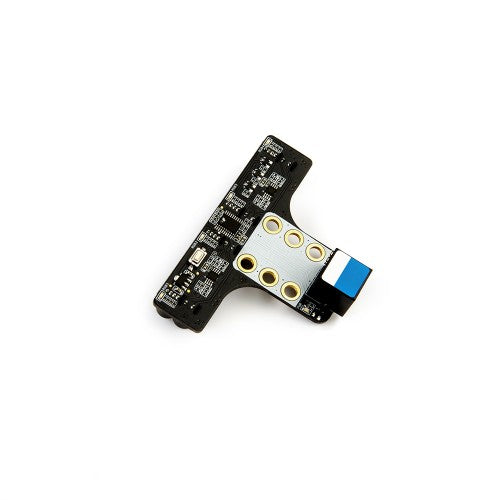

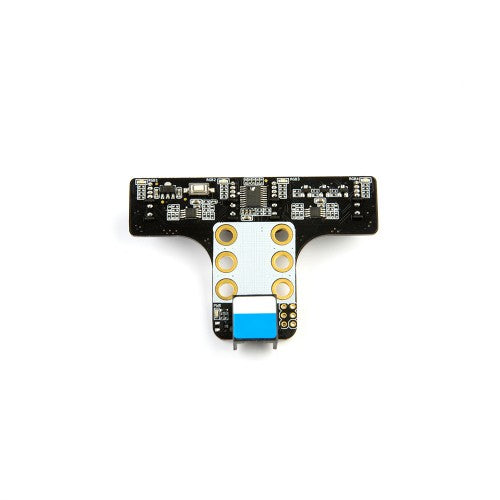

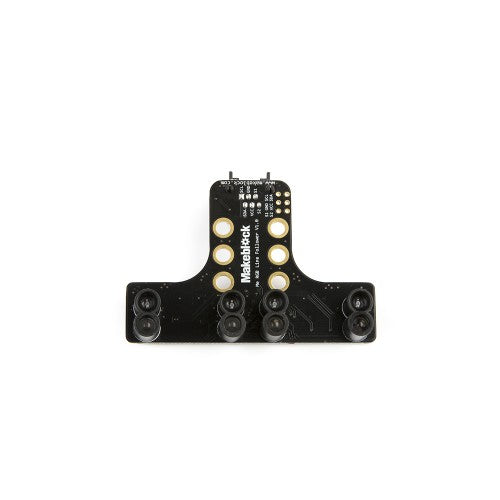

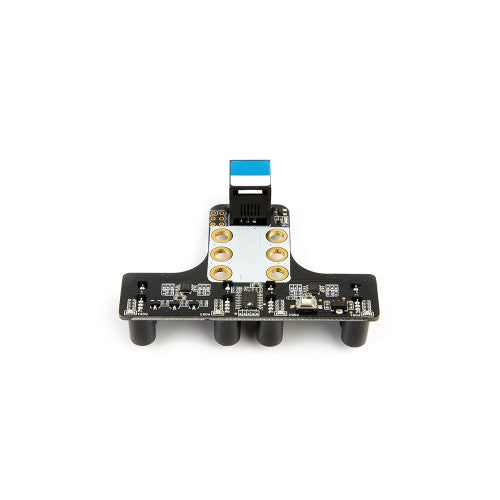

RGB Grayscale Sensor is specially designed for line detect competition. It contains 4 RGB fill flashes and 4 photodiodes. This sensor can be used to detect line on deep background with light color track and light background deep color track as well. RGB Grayscale Sensor can detect line when grey value is greater than threshold value.( It is advised that the threshold value is greater than 30, that the effect is better.) This module has the functions of fast detection, learn court via button and the advantage of well adapted. The color code of the sensor’s port is blue and white, it means double digital, I2C port, and it needs to link to the port which has blue and with color code on the main board.
Features:
- Support Arduino IDE programming, and supply runtime library to simplify programming.;
- It has 4 LED which are used to line detect feedback and new environment learning;
- Used RJ25 port which can connect easily;
- Suitable for Makeblock DIY platform metal parts: the white area on the sensor can contact with metal parts;
Specification:
- Operating Voltage: 5V DC;
- Detecting Height: As the differences of material and light condition of the track, it is advised that the distance between probe and track is from 5mm to 15mm;
- Operating Temperature: 0℃~70℃;
- Signal Mode: I2C communication( blue and white color code);
- 48 x 72 x 26.5 mm
Pack List:
- 1*Me RGB Line Follower V1
- Reviews
- Questions
AustraliaRGB line follower
The product works well enough for a high contrast line and background. I was a bit disappointed that the sensors across the array are not well matched, with significant differences in the white background readings across the array (this was true for red, green and blue LEDs).
Pakronics®
Can you please send an email to order@pakronics.com.au for the issue. Will try to get developer clarify things for you.
