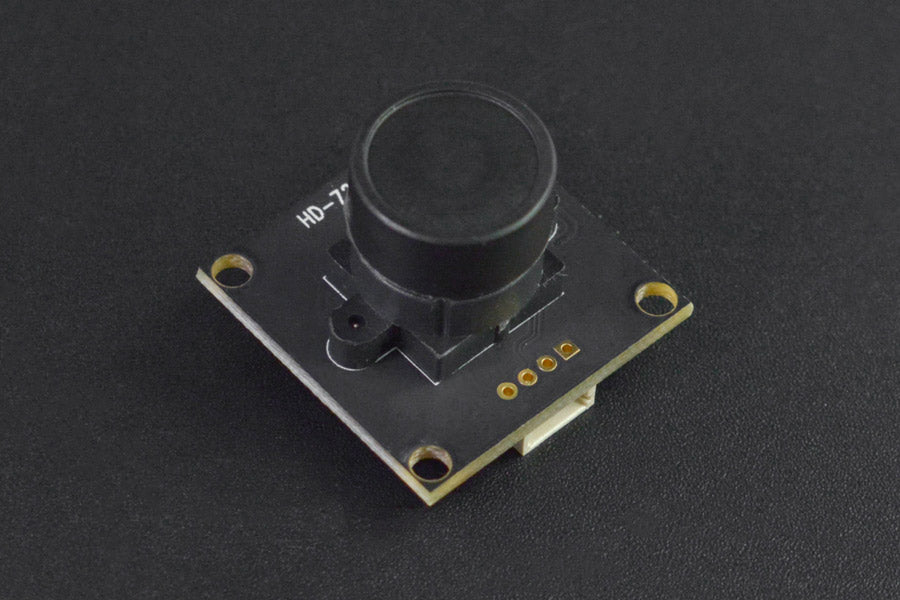

Megapixel 720p USB Wide-angle Camera for Raspberry Pi and NVIDIA Jetson Nano
Megapixel 720p USB Wide-angle Camera for Raspberry Pi and NVIDIA Jetson Nano

Megapixel 720p USB Wide-angle Camera for Raspberry Pi and NVIDIA Jetson Nano

Price:
A$37.47   Inc. GST
SKU:
DF-FIT0892
198 units Ships in 7 to 10 days

This megapixel USB wide-angle camera with a resolution of 1280*720 supports a 140-degree viewing angle and standard UVC communication protocol.

Plug and play, it is compatible with Raspberry Pi and NVIDIA Jetson Nano series. The wide viewing angle provides you with a better photo experience.

The module has a very small size of 38mm*38mm, which can be embedded in various devices for face recognition, image recognition, security, remote teaching, and other projects.

Megapixel 720p USB Wide-angle Camera

Features:

  • Plug and play
  • Compatible with Raspberry Pi and NVIDIA Jetson Nano

    • Applications:

  • Face recognition
  • Image recognition
  • Security
  • Remote teaching

    • Specification:

  • Lens Size: 1/4 inch
  • Pixel Size: 3μm x 3μm
  • Maximum Effective Pixels: FULL HD 1280(H)*720(V)
  • Field of View (FOV): 140°
  • Output Image Format: MJPEG/YUV2 (YUYV)
  • Supported Resolutions:
                320*240 MJPEG@30fps;
                352*288 YUV2@30fps;
                352*288 MJPEG@30fps;
                640*480 YUV2@25fps;
                800*600 MJPEG@30fps
                320*240 YUV2@30fps;
                1280*720 MJPEG @25fps;
                800*600 YUV2@15fps;
                640*480 MJPEG@25fps;
                1280*720 YUV2@10fps
  • Special Function: Lens correction/Defective pixel correction/Black sun cancellation
  • Minimum Illumination: 0. 051lux
  • Shutter Type: Electronic rolling shutter / Frame exposure
  • USB Protocol: USB2.0 HS/FS
  • Interface Type: USB2.0 High Speed
  • Support OTG Protocol: USB2.0 OTG
  • Support Driver-free Protocol: USB Video Class (UVC)
  • Automatic Exposure Control AEC: support
  • Automatic White Balance AEB: support
  • Automatic Gain Control AGC: support
  • Adjustable Parameters: brightness / contrast / color saturation / hue / sharpness / gamma / white balance / backlight / contrast / exposure
  • Night Vision Function: support, need to cooperate with infrared lens 850 or 940nm, and infrared light board
  • Infrared Light Board-Power Supply Interface: support, 2P-2.0mm socket
  • Power Supply Mode: USB BUS POWER 4P-2.0mm socket
  • Working Voltage: DC 5V
  • Working Current: 120mA~220mA
  • Working Temperature: 060
  • Storage Temperature: -2075
  • Size/Weight: 38x38mm/1.50x1.50 inch (Compatible with 32x32mm/1.26x1.26 inch) / about 30g
  • Support Operating System: Windows, iOS, Android, Linux, etc.

    • Product Includes:

  • Megapixel 720p USB Wide-angle Camera x1
  • USB Cable x1
