Buy micro:Maqueen Plus V2 (18650 Battery) with micro:Maqueen Mechanic and micro:bit V2
micro:Maqueen Plus V2 (18650 Battery) with micro:Maqueen Mechanic and micro:bit V2
micro:Maqueen Plus V2 (18650 Battery) with micro:Maqueen Mechanic and micro:bit V2
Buy micro:Maqueen Plus V2 (18650 Battery) with micro:Maqueen Mechanic and micro:bit V2
micro:Maqueen Plus V2 (18650 Battery) with micro:Maqueen Mechanic and micro:bit V2
micro:Maqueen Plus V2 (18650 Battery) with micro:Maqueen Mechanic and micro:bit V2

micro:Maqueen Plus V2 (18650 Battery) with micro:Maqueen Mechanic and micro:bit V2

Age 8+
Skill level - BeginnerSkill level - IntermediateSkill level - Advanced
Price:
A$253.68   Inc. GST
SKU:
DF-MBT0021-EN-18650-4
264 units Ships in 7 to 10 days
Age 8+
Skill level - BeginnerSkill level - IntermediateSkill level - Advanced
Assembly Required
Visual-based ProgrammingText-based Programming
Programming Device - Computer

Note: This product includes micro: Maqueen Plus v2, micro:Maqueen Mechanic (Forklift, Push, Beetle, and Loader), and micro: bit board.



The micro: bit board V2.

Batteries are not included.


What’s new in Maqueen Plus V2?

1. Two versions to choose from: 4 AA battery and 18650 battery

2. New plastic box with a deeper base, enough room for the assembled car

3. Frosted acrylic protective plate at the bottom, more durable and reliable

4. The number of Line-tracking sensors has changed from 6 to 5, more convenient to program and optimize line-tracking codes

5. Employs the motors whose parameters are the same as previous Maqueen, running steadily and smoothly

6. Changes ultrasonic sensor to SR04, easier to install

7. Add 4 RGB ambient lights at the base, RGB car lights have been changed to LEDs

8. Delete the less usable magnetic encoder

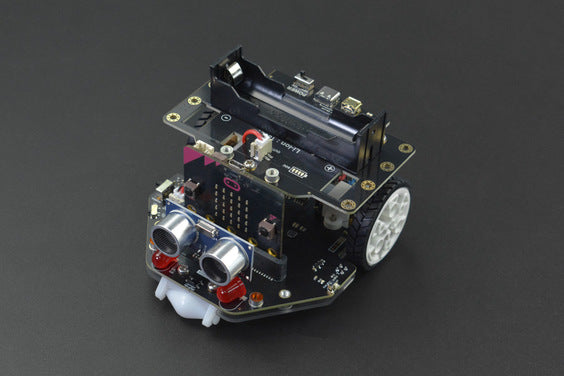

Maqueen Plus V2 is the latest version of the STEAM educational robot Maqueen Plus. Optimized with more expansion ports, larger capacity power supply, and larger body, it is fully compatible with more peripheral components like HuskyLens AI camera, Maqueen Mechanic Kits, which makes it an accessible STEAM robot teaching tool for primary and secondary students. Maqueen Plus V2 is not only suitable for classroom teaching, but also can be used for after-school extended exercises and robot competitions.

Besides all the functions of Maqueen Lite, it offers richer and more flexible functions and stronger performance. Whether you have ever used Maqueen Series products or not, you’ll find it very easy to get started.

micro:Maqueen Plus V2

Features:

  • No complex assembly, get started in minutes
  • More IO expansion ports: 3.3V IO x7, 5V IO x3, I2C x3
  • 5 line-tracking sensors, reliable and flexible
  • Larger body, more flexible expansion methods
  • Two versions to choose from: AA battery and 18650 battery
        AA battery version supports 1.2V Ni MH battery or 1.5V alkaline battery, while 18650 battery version supports 3.7V 18650 battery
  • Works well with HuskyLens AI camera
  • Rich peripherals: IR receiver, LED car lights, RGB ambient lights, buzzer, ultrasonic sensor, etc.
  • Frosted acrylic protective plate at the bottom
  • Storage box with a deeper base to provide enough room for the assembled Maqueen Plus car

    Applications:

  • STEM Education

    • Specification:

  • Power Supply: MBT0021-EN-18650: 18650 Lithium battery (3.6V or 3.7V) x 1, onboard charging circuit, MicroUSB and TYPE-C charging interfaces, 4 hours to charge fully
  • Support micro:bit V1 and V2
  • N20 All-metal Gear Motor x 2
  • Motor Reduction Ratio: 1:150
  • Motor Rated Rotation Speed: 133 rpm
  • Buzzer x 1
  • 5V IO (P0 P1 P2) x 3
  • 3.3V IO (P0 P1 P2 P8 P9 P12 P16) x 7
  • 3.3V I2C x 2
  • 5V I2C x 1
  • Large Size LED Car Lights x 2
  • RGB Ambient Lights x 4
  • Line-tracking Sensor x 5
  • Line-tracking Sensor with One-key Calibration
  • IR Receiver x 1
  • SRO4 Ultrasonic Module x 1
  • Dimension: 136mm×65mm/5.35×2.56"
  • Programming Platform: Mind+, MakeCode
  • Wiki Address:
  • MakeCode Library Address: https://github.com/DFRobot/pxt-DFRobot_MaqueenPlus_v20

    • Documents:



  • Product wiki

    • Product Includes:

    Maqueen Plus V2 (18650 battery):



  • Maqueen Plus V2 (18650 battery) Vehicle body x 1

    • (Note: the motor, vehicle wheel, support wheel, and battery panel have been installed before delivery)

  • H-SR04 Ultrasonic Sensor x 1
  • Line-tracking Map x 1


    • micro: Maqueen Mechanic (Forklift, Push, Beetle, and Loader):

  • Loader Servo Panel x 1
  • Loader Bucket x 1
  • Pan-tilt-zoomMount Plate x 2
  • Trolley Plate x 1
  • Ultrasonic MountHolder x 1
  • Arm Servo Base x 1
  • Arm Baseplate x 1
  • Arm Linkage x 3
  • Arm Plate x 1
  • Servo Arm Linkage x 1
  • Forklift Plate x 1
  • Gripper Upper Arm x 2
  • Gripper DrivenForearm x 1
  • Gripper ServoForearm x 1
  • Gripper Panel x 1
  • M3*35mm Copper Bolt x 2
  • M3*25mm Copper Bolt x 2
  • M3*15mm Copper Bolt x 6
  • M3*17mm Copper Bolt x 3
  • 9g servo x 2
  • M2.5*5mm nut x 12
  • M3*5mm nut x 45
  • Installation Manual x 1

    •


  • micro:bit board x1

    •

  • Flat Noodle Micro USB Cable x1
