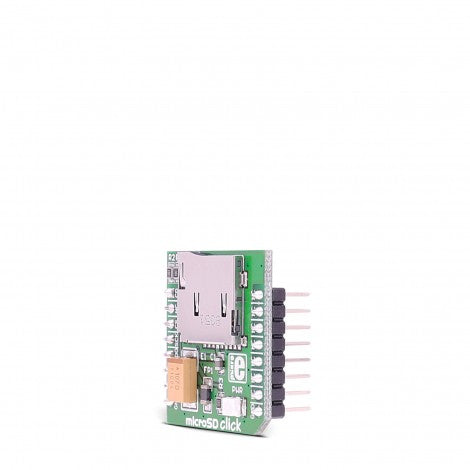

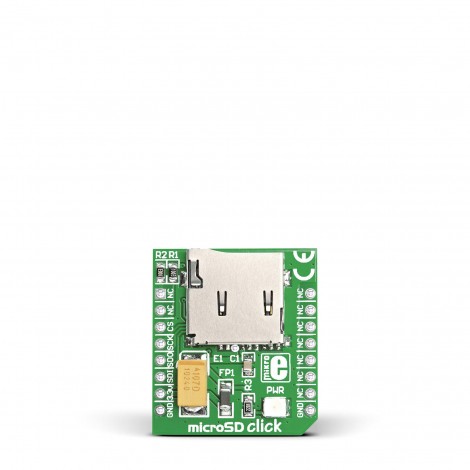

Need more additional memory? We’ve got just the thing for you - microSD click. It features a microSD card slot for microSD cards used as a mass storage media for portable devices. microSD click is designed to run on 3.3V power supply. Industry standard SPI interface ensures simple communication at high data rates. Use it for reading or storing data like music, text files, videos and more.
Using microSD cards

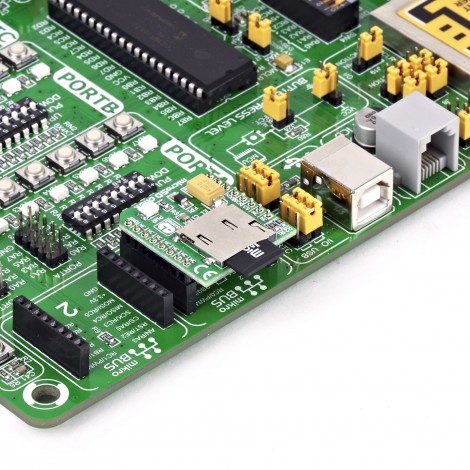

Board contains the slot for standard microSD cards. Once power is turned on, power LED will indicate that board is in operation. Data is read and written to the card using industry standard SPI interface.
Power supply – 3.3V only
Board is designed to use 3.3V power supply only. If you need to add MMC/SD feature to your 5V prototype or development board, we recommend you to use other boards such as the MMC/SD Accessory Board.
Specifications
Type microSD Applications microSD click is ideal for storing and reading acquisition data, images, music, video and data files, or any other application where fast mass storage is needed. On-board modules microSD card slot Key Features microSD card slot for microSD cards used as a mass storage media for portable devices Interface SPI Compatibility mikroBUS Click board size S (28.6 x 25.4 mm) Input Voltage 3.3V
Pinout diagram

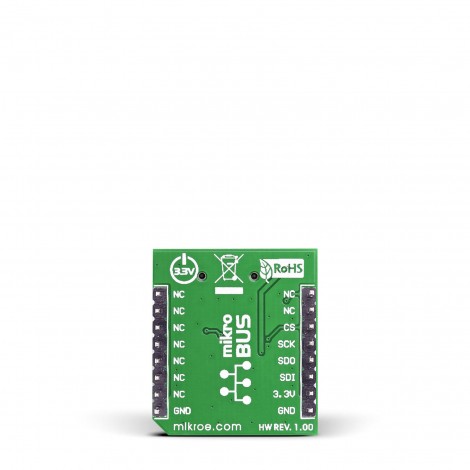

This table shows how the pinout on microSD click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).
| Notes | Pin |  | Pin | Notes | |||
|---|---|---|---|---|---|---|---|
| NC | 1 | AN | PWM | 16 | NC | ||
| NC | 2 | RST | INT | 15 | NC | ||
| SPI chip select | CS | 3 | CS | TX | 14 | NC | |
| SPI clock | SCK | 4 | SCK | RX | 13 | NC | |
| Serial data output | SDO | 5 | MISO | SCL | 12 | NC | |
| Serial data input | SDI | 6 | MOSI | SDA | 11 | NC | |
| Power supply | +3.3V | 7 | 3.3V | 5V | 10 | NC | |
| Ground | GND | 8 | GND | GND | 9 | GND | Ground |
Programming
Code examples for microSD click, written for MikroElektronika hardware and compilers are available on Libstock.
Code snippet
The following code snippet shows part of the code that is responsible for microSD click initialization.
01 void main() {02 const char FILL_CHAR = 'm';03 unsigned int i, SectorNo;04 char mmc_error;05 bit data_ok;06 07 ANCON0 = 0; // Configure ports as digital I/O08 ANCON1 = 0;09 ANCON2 = 0;10 11 Mmc_Card_Detect_Direction = 1; // Set card detection pin to be input12 13 UART1_Init(19200); // Initialize UART1 module14 Delay_ms(10);15 UART1_Write_Line("Insert microSD Card");16 17 while(Mmc_Card_Detect) // Loop until card is detected18 ;19 20 Delay_ms(500);21 22 UART1_Write_Line("microSD Card inserted"); // microSD Card present report23 24 // Initialize SPI1 module25 SPI1_Init_Advanced(_SPI_MASTER_OSC_DIV4, _SPI_DATA_SAMPLE_MIDDLE, _SPI_CLK_IDLE_LOW, _SPI_LOW_2_HIGH);26 27 // Initialize MMC card28 mmc_error = Mmc_Init();29 if(mmc_error == 0)30 UART1_Write_Line("MMC Init-OK"); // If MMC present report31 else32 UART1_Write_Line("MMC Init-error"); // If error report
