 | What is Mini Pan-Tilt Kit?Mini Pan-Tilt Kit is easy-to-use DIY kit which will suit all you need for creating a project. This kit enables your project to rotate 180-degree both in horizontal and vertical direction. With this kit, you are able to explore more in robotic world. | |
Features? Small in size and lightweight; ? Bracket at two ends of this kit for easy assembling; ? Perfect for DIY projects, add more sensors to create more interesting projects. | ||
How to Create a Project with This Kit?1) Add a gripper on this kit to create a small gripping robot; 2) Add a ultrasonic sensor or a IR detector to let your robot detect obstacle freely in a maze; 3) Add a camera or other sensors to create your own interactive projects. You can DIY more unique projects.
We provide manual for assembling the Mini Pan-Tilt Kit, click the link below to view: Guide for Assembling the Mini Pan-Tilt Kit | ||

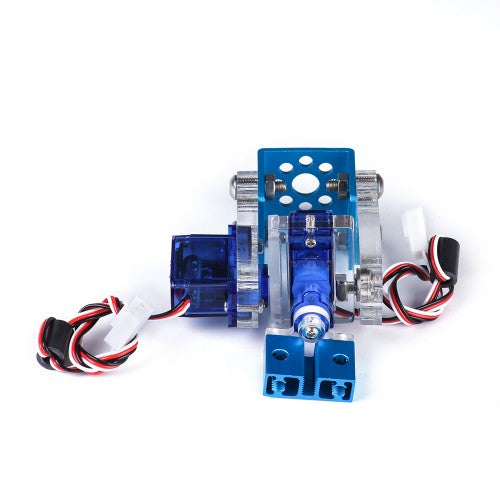

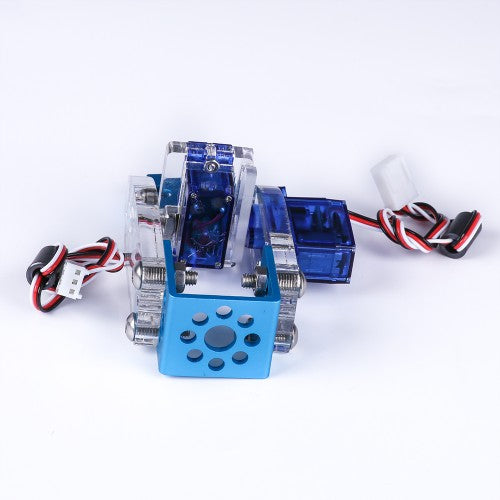

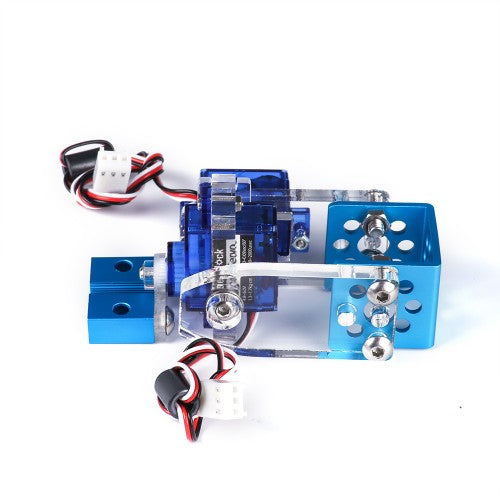

Building Examples:
| ||
Specifications | |
|---|---|
| Product Dimension (LxWxH) | 83.8 x 56.5 x 32mm (Assembled) (3.29 x 2.22 x 1.25inch) |
| Net Weight | 65g (2.29oz) |
| Gross Weight | 65g (2.29oz) |

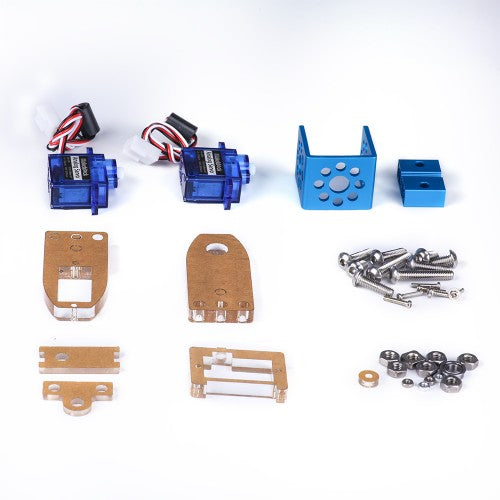

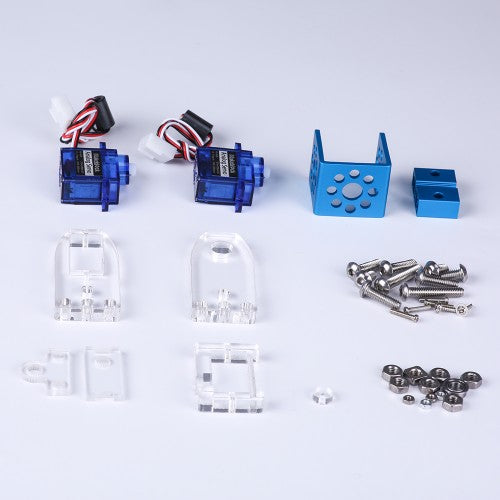

Part List | |
|---|---|
| 1 x Mini Pan-Tilt Kit-A Acrylic Bracket 24 x 50 x 5.5mm | 1 x Mini Pan-Tilt Kit-B Acrylic Bracket 24 x 50 x 5.5mm |
| 1 x Mini Pan-Tilt Kit-C Acrylic Bracket 24 x 34 x 5.5mm | 1 x Mini Pan-Tilt Kit-D Acrylic Bracket 13 x 28 x 2.3mm |
| 1 x Mini Pan-Tilt Kit-E Acrylic Bracket 17 x 24 x 2.3mm | 1 x Mini Pan-Tilt Kit-F Acrylic Bracket D7.5 x 2.3 |
| 1 x 9g Servo Screw Pack | 1 x Magnetic Ring RH7.8 x 12.7 x 4.5mm |
| 1 x 9g Plastic Servo FCC | 3 x Screw M4 x 8mm |
| 4 x Screw M4 x 14 | 2 x Screw M4 x 22mm |
| 6 x Nut M4 | 1 x Nut M4 6.8 x 6.8 x 3mm |
| 1 x Flange Bearing 4 x 8 x 3 | 1 x Beam0824-016-Blue |
| 1 x Bracket U1-Blue | |
Specifications | |
|---|---|
| Product Dimension (LxWxH) | 83.8 x 56.5 x 32mm (Assembled) (3.29 x 2.22 x 1.25inch) |
| Net Weight | 65g (2.29oz) |
| Gross Weight | 65g (2.29oz) |
Part List | |
|---|---|
| 1 x Mini Pan-Tilt Kit-A Acrylic Bracket 24 x 50 x 5.5mm | 1 x Mini Pan-Tilt Kit-B Acrylic Bracket 24 x 50 x 5.5mm |
| 1 x Mini Pan-Tilt Kit-C Acrylic Bracket 24 x 34 x 5.5mm | 1 x Mini Pan-Tilt Kit-D Acrylic Bracket 13 x 28 x 2.3mm |
| 1 x Mini Pan-Tilt Kit-E Acrylic Bracket 17 x 24 x 2.3mm | 1 x Mini Pan-Tilt Kit-F Acrylic Bracket D7.5 x 2.3 |
| 1 x 9g Servo Screw Pack | 1 x Magnetic Ring RH7.8 x 12.7 x 4.5mm |
| 1 x 9g Plastic Servo FCC | 3 x Screw M4 x 8mm |
| 4 x Screw M4 x 14 | 2 x Screw M4 x 22mm |
| 6 x Nut M4 | 1 x Nut M4 6.8 x 6.8 x 3mm |
| 1 x Flange Bearing 4 x 8 x 3 | 1 x Beam0824-016-Blue |
| 1 x Bracket U1-Blue | |
