Miniware MHP30 Mini Hot Plate Preheater

Price:
Sale price A$269.04   Inc. GST
SKU:
DF-FIT0888
35 units Ships in 7 to 10 days

Here comes an ultra-mini smart constant temperature heating station-MHP30. It eliminates redundancy, retains sufficient effective heating area, greatly saves energy and heating time. MHP30 condenses the large desktop heating station into pocket size, and with popular PD power input, making it possible for the heating station to become a portable tool.

Mini Hot Plate Preheater

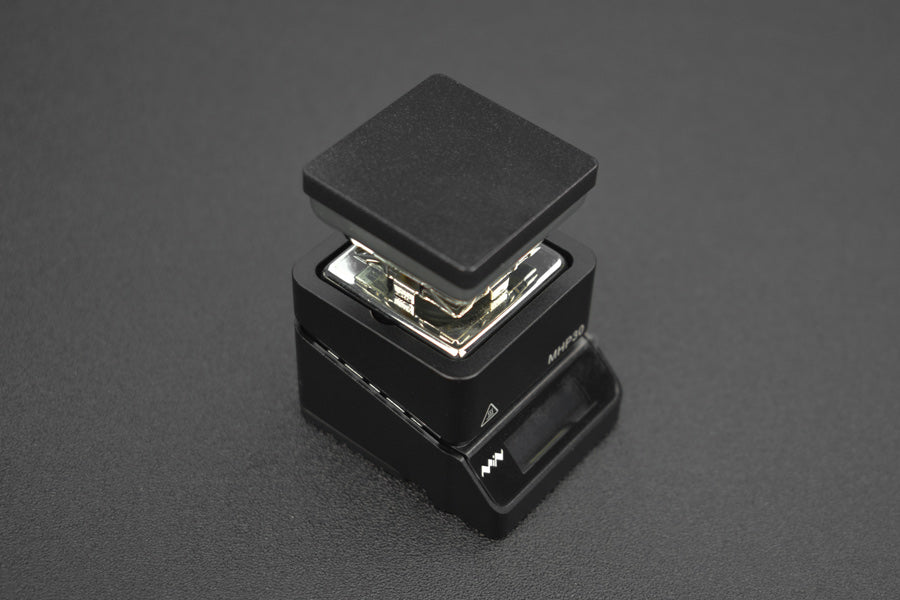

MHP30 has a small and exquisite appearance, with a square tower shape and a total height of only 5.2cm (2 inches), a heating area of 3cm*3cm. The simple and compact design could greatly improve your work efficiency. It is a good helper for preheating and desoldering.

Mini Hot Plate Preheater

The high-efficiency heating area can effectively reduce unnecessary energy loss. The LED screen can display the current temperature of the heating element in real time to help you better control the heating temperature.

Mini Hot Plate Preheater

With PD power input, the MHP30 offers a maximum power of 60W. And it only takes 150 seconds to heat from room temperature (26°C) to 300°C.

Mini Hot Plate Preheater

With a separable design, the MHP30 controller and hot plate can be flexibly separated and replaced. The hot plate’s heating body is made of brass with nano-ceramic coating, smooth on the surface, and evenly heated. A futuristic stainless steel hollow bracket connects the heating part with the circuit board that can be directly inserted into the controller.

Mini Hot Plate Preheater

The controller has a built-in true color LED that changes color with the rises and falls of the temperature, letting you know the warm and cold at a glance.

Mini Hot Plate Preheater

A pair of support feet at the bottom can be spread out to better support the whole station, providing anti-slip and stable support.

Mini Hot Plate Preheater

In addition to the upgradeable firmware function, MHP30 also has smart modes such as preset temperature, tilt protection, power wake-up, and automatic sleep. Users can set to turn on or off these functions according to their needs.

Mini Hot Plate Preheater

Mini Hot Plate Preheater

Features:

  • Small and exquisite appearance
  • High-efficiency heating area
  • With separable design
  • Providing anti-slip and stable support
  • Applications:

  • Portable tool
  • Specification:

  • Heating Element Model: BS30
  • Heating Area: 30mm*30mm/1.18 * 1.18 inch
  • Temperature Range: 100-350
  • Temperature Stability: 3%
  • Ground Resistance: 2Ω
  • Power: 60W (maximum)
  • Power Input: PD protocol (20V maximum)
  • Size: controller: 43mm*35mm*31mm(L*W*H)/1.69*1.38*1.22inch;

              heating element: 31mm*31mm*28mm /1.22*1.22*1.10 inch

  • Weight: 82g
  • Product Includes:

  • MHP30 Controller x1
  • Mini Hot Plate (BS30) x1
  • Type-C Data Cable x1
  • PD Power Supply (American standard) x1
  • Conversion Plug (European standard) x1
  • Safety Instruction x1
