Features
- Brand new, high quality.
- With 4-ohm impedance and 5-watt power output, it delivers clear sound quality.
- Built-in mounting holes allow for quick installation in various projects.
Specification
General
ITEM | SPECIFICTION |

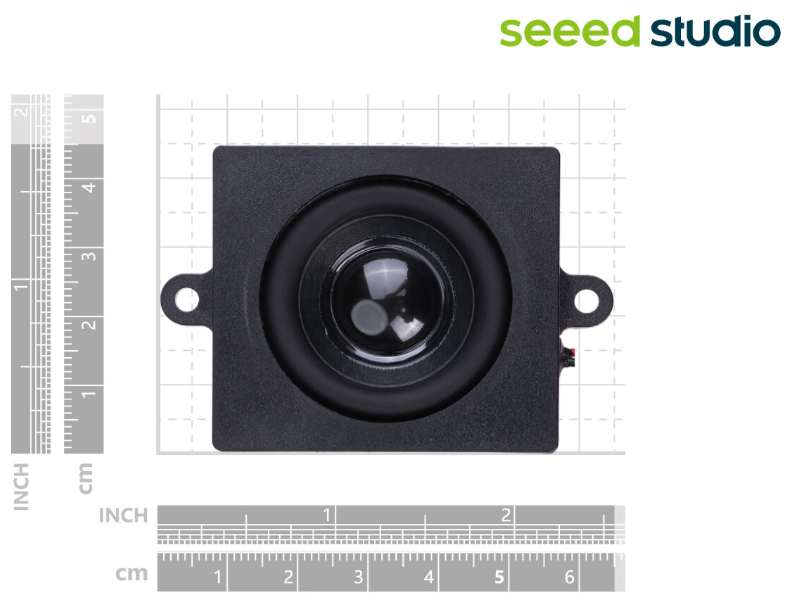

Size | 50*45*22mm |
Rated Impedance | 4ohm±15% |
Rated Input Power | at 5.0W |
Max. Input Power | at 6.0W |
Resonant Frequency | Fb：125Hz±20% Fo：500Hz±20% |
Output S.P.L | 88±3dB |
Frequency Range | FO----20kHz |
Distortion | 10% Max |
Operating Temperature | -20℃ to +30℃ |
Storage temperature | -40℃ to +65℃ |
Hardware overview
Application
This Mono Enclosed Speaker can be used as an output device for the ReSpeaker Lite or ReSpeaker Lite Voice Assistant Kit, and it is suitable for smart home audio systems, DIY audio projects, robot voice output, educational electronic projects, and portable audio devices.
Mono Enclosed Speaker - 4R 5W | 1 |
ECCN/HTS
| HSCODE | 8518290000 |
| USHSCODE | 8518108040 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |
