- Multi-Depth measurements: Soil Moisture, temperature and electrical conductivity measurements at 10cm (4 in), 20cm (8 in), 30cm (12 in) and 40cm(16 in).
- High Precision and Sensitivity: High measurement accuracy, less affected by soil salinity, suitable for all kinds of soils.
- Universal Protocol: MODBUS-RTU RS485
- Durable Design: High-quality plastic housing with IP68-rated and protection against corrosion.
- Easy Integration and Versatile Application: This sensor can be seamlessly integrated with the SenseCAP Sensor Hub 4G Data Logger for efficient data collection and management.
Soil electrical conductivity (EC) is the level of salts in soil (salinity). These parameters are vital indicators of soil fertility and health and ultimately affect the plants. When there is a high soil salinity, the salt will make it difficult for the plants to consume water even though there is a high moisture level in the soil. This situation will ultimately "burn" the plants. Plants grow best in their preferred environment, within the optimal ranges of soil moisture, temperature, and EC level. Growers need to have data on these parameters and understand what actions need to be taken to ensure plant health and higher yield.
The RS485 Multi-Depth Soil Moisture, Temperature, and EC Sensor has been designed in accordance with industry standards, offering high precision, high sensitivity, and durability. It provides highly accurate and reliable three-dimensional monitoring of soil conductivity, humidity, and temperature by means of sensor nodes installed at different depths.
The sensor can be permanently inserted into the measured soil, and calibrated once for long-term stable real-time detection. The high-quality plastic housing provides the sensor with IP68 protection and excellent corrosion resistance. It is suitable for water-saving agricultural irrigation, meteorological monitoring, environmental monitoring, greenhouse, flowers and vegetables, grass pasture, soil quick test, plant culture, scientific experiments, and other fields.
We offer the SenseCAP Sensor Hub 4G Data Logger suitable for RS485 sensors. You can transmit the sensor data to to the SenseCAP server or the client's private server.
General Parameters | |
Interface | RS485 |
Protocol | MODBUS-RTU RS485 |

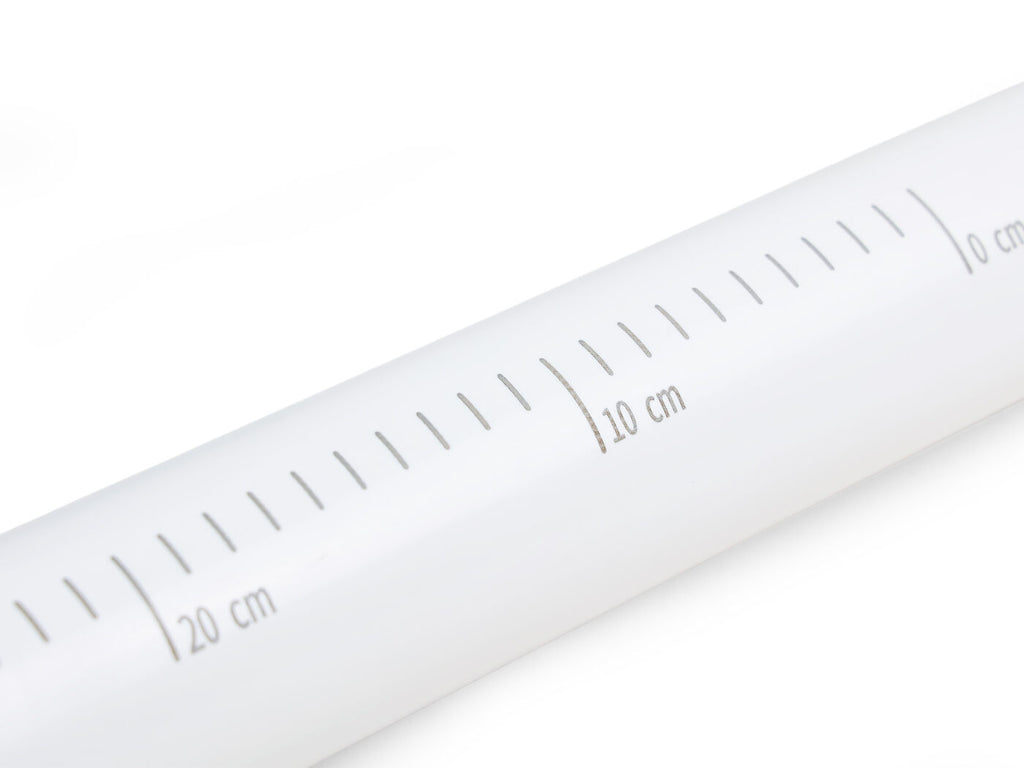

Measurement Point | 10cm (4 in) 20cm (8 in) 30cm (12 in) 40cm (16 in) |
Measurement Area | Within 10cm outside the surface |
Response Time | <100ms |
Start-up Time | 10 seconds after powering on |
Power Supply | 12V~24V DC |
Current Consumption | 12V /40mA 24V /20mA |
Operating Temperature | -10℃～55℃ |
IP Rating | IP68 |
Cable Length | 10 meters |
Device Weight | 1505g |
Soil Temperature | |
Range | -30～70℃ |
Accuracy | ±0.5℃ |
Resolution | 0.1℃ |
Soil Moisture | |
Range | 0～70% |
Accuracy | ±3% |
Resolution | 0.1% |
Electrical Conductivity | |
Range | 0～5000 μs/cm Extensible customization range: 0～20000 μs/cm |
Accuracy | ±10% |
Resolution | 10 μs/cm |
Probe Dimensions
Wiring Diagram

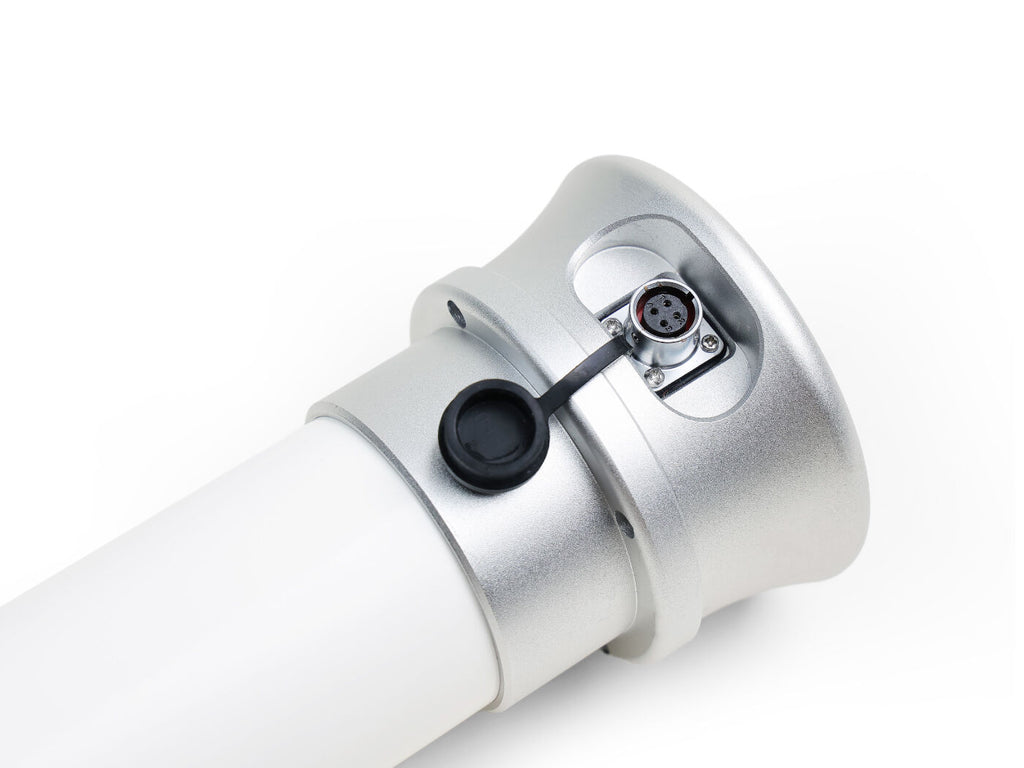

 | Aviation Connector Pin | Sensor Wire Pin | Description |
1 | VCC+ | DC 12 - 24V | |
2 | NC | No connect | |
3 | RS485 A | - | |
4 | RS485 B | - | |
5 | GND | Ground |
- Greenhouse: Such as growing blueberries, strawberries and other crops.
- Irrigation: Integrated with irrigation system to achieve fully automatic planting management.
- Geological Research: Long-term monitoring of soil temperature and humidity over large areas
Multi-Depth Soil Moisture & Temperature & EC Sensor User Manual V1.0
Sensor | x1 |
Waterproof connection cable - 10m | x1 |
| HSCODE | 9025800090 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
