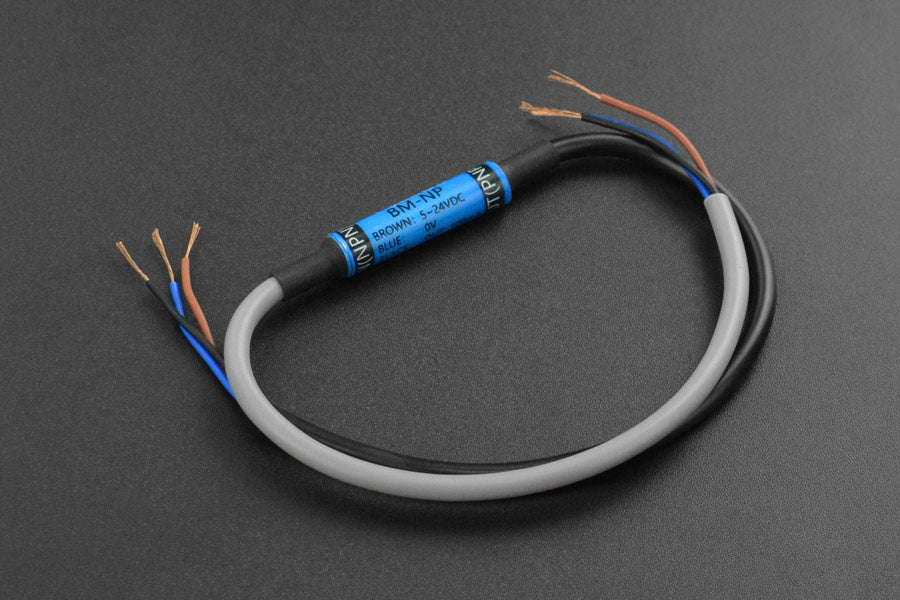

NPN to PNP Signal Converter / Adapter Module

Save 3% Regular price A$17.60
Price:
Sale price A$17.16   Inc. GST
SKU:
DF-FIT0850
3 units Ships in 24 hours
27 units Ships in 7 to 10 days

If sensors are used in your equipment or control systems, having these signal converter modules like this NPN to PNP converter readily available could effectively eliminate the last-minute problems that you encounter when your controller and the type of sensor you are using have a mismatched signal.

This signal converter is designed to convert NPN signal to PNP and is equipped with surge absorption and over-current protection to further protect your device.

Adapter from NPN to PNP

Pinout

Adapter from NPN to PNP

Connection Diagram

Specification:

  • Working Voltage: 5~24V DC
  • Current Protection: Overcurrent protection, surge absorption
  • Load Current: 100mA max
  • Operating Temperature: -20~70
  • Operating Humidity: 35~85%RH
  • Response Time: 1us
  • Model: BM-NP
  • Conversion: NPN.NO-PNP.NO
  • Documents:

  • Product wiki
  • Product Includes:

  • NPN to PNP Converter x1
  • Wire Connector x1
