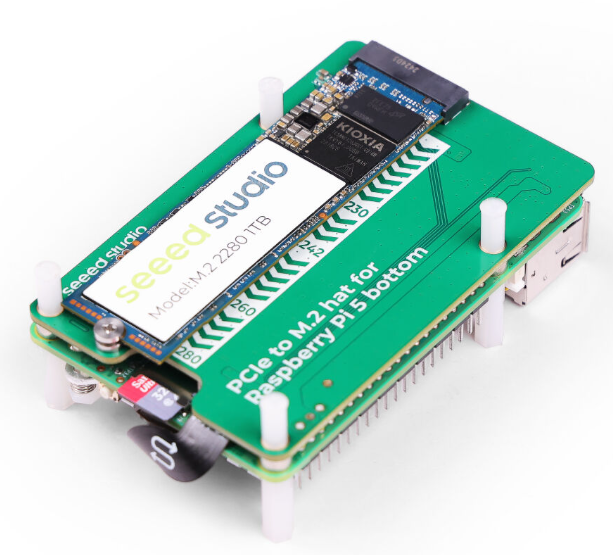

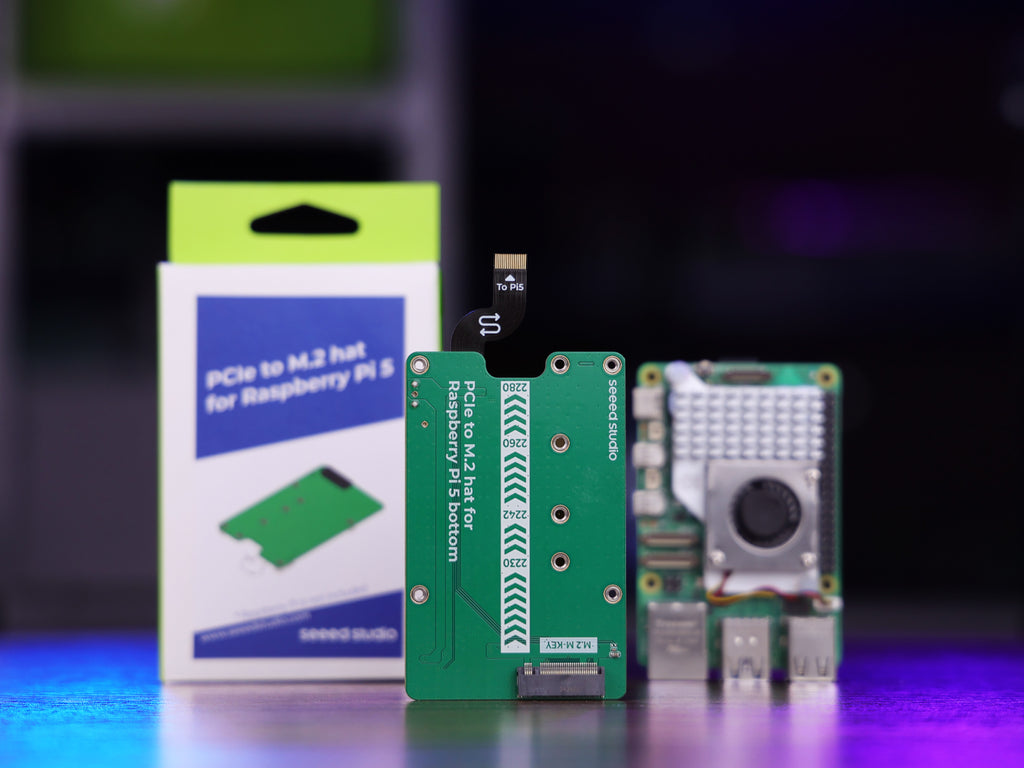

- High-speed expansion: Seeed Studio PCIe to M.2 hat compatible with Raspberry Pi 5, supporting PCIe Gen2 x1 and PCIe Gen3 x1 speeds. It can be used to expand high-speed storage with NVMe SSDs and Hailo8/8L NPU AI accelerators.

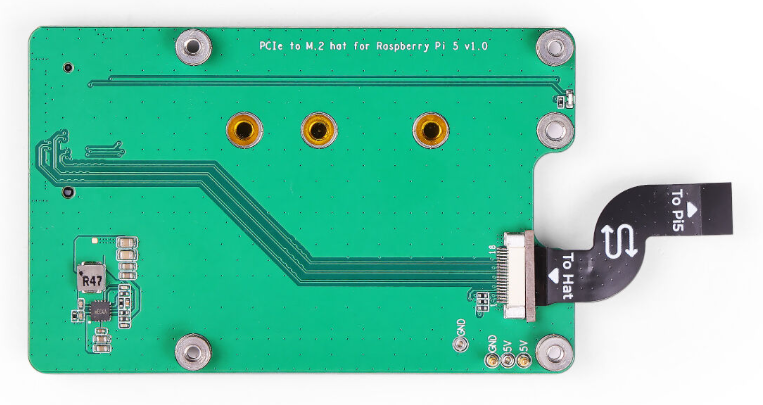

- Stable Connection: Additional Pogo Pins for extra power supply to ensure a stable high-speed connection.

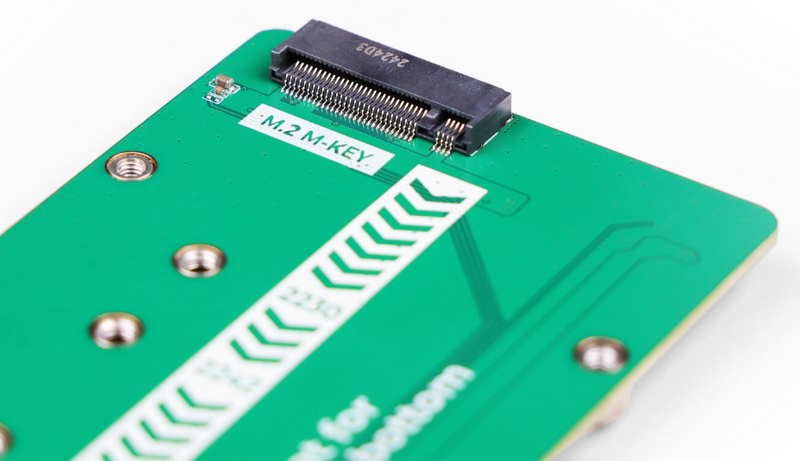

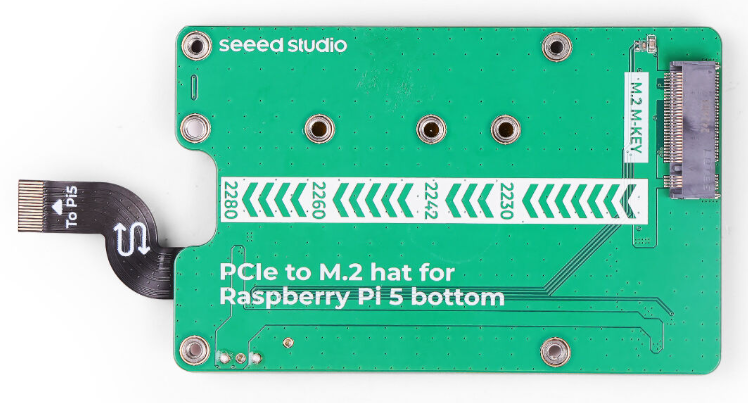

- Multiple size support: 2230/2242/2260/2280 compatible.

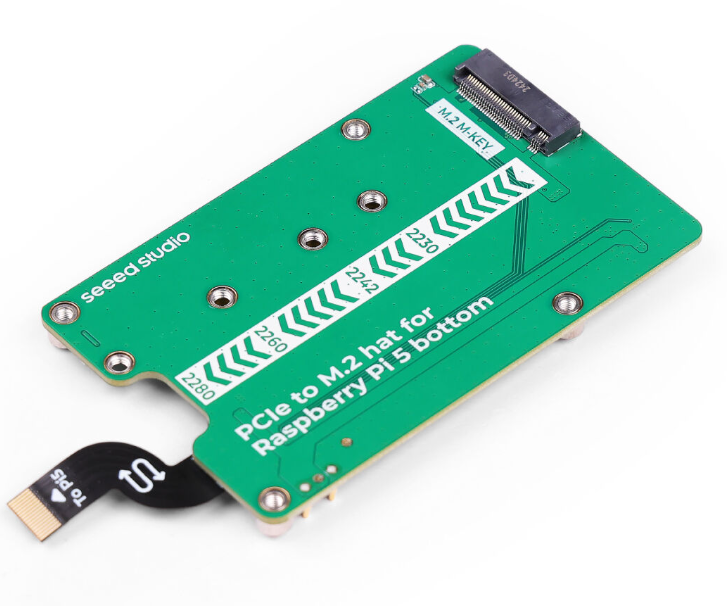

- Back-mounted design: This hat features a back-mounted design, allowing users to freely use the 40-pin GPIO and can be used in conjunction with other hats. Additionally, it does not obstruct official Raspberry Pi heatsinks and fans, providing better airflow and cooling efficiency.

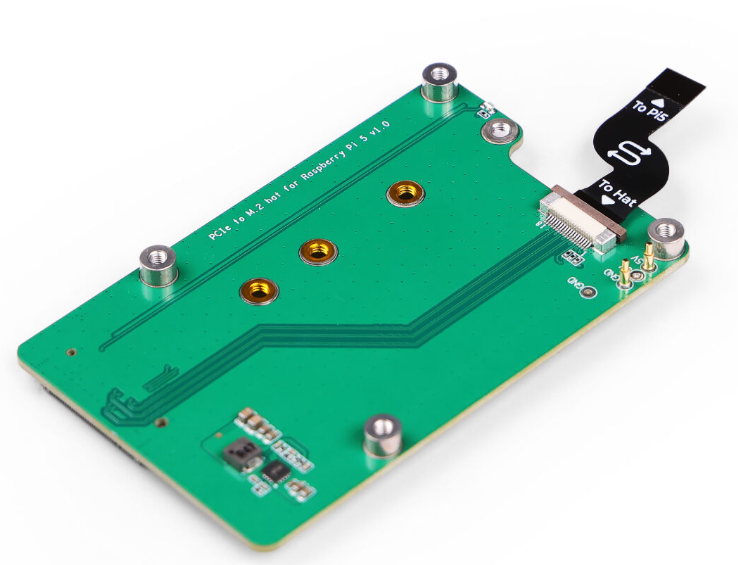

- User-friendly Design: S-shaped FPC cable design that does not obstruct the micro SD card.
- Open source shell：We have designed a 3D-printed case that fits the official Raspberry Pi fan and also supports easy installation of an SSD card. Customers who need it can download the file by clicking 3D-printed case stp file. Additionally, for users who do not have a 3D printer but still want this case, feel free to leave a comment in the section below. If there is enough demand, we will sale this 3D-printed case in our online shop.
Due to compatibility issues with Raspberry Pi's PCIe, not all NVMe SSDs are supported. Raspberry Pi's official developers are continuously updating the system to support more NVMe SSD controllers and models. Especially if booting from an SSD is required, we strongly recommend updating to the latest Raspberry Pi firmware and bootloader. For detailed instructions, please refer to the Seeed wiki.Note: SATA SSD is not compatible with this hat.
Many excellent suppliers, such as Pimoroni, provide detailed compatibility lists. We are sorry that at this stage we have not tested enough SSD models to provide a detailed SSD compatibility list. Currently, on the Seeed homepage of pibenchmarks, there are several verified SSDs that can be used for storage and system boot disks. We will try to improve this list as much as possible in the future. Users are also welcome to share compatibility information in the comments section or via email. For now, you can refer to the compatibility lists of other SSD with Raspberry Pi 5 in the community. If you are unsure which SSDs are compatible, you can purchase SSDs sold on the Seeed website, all of which are verified. Among them, 128GB, 256GB, and 512GB are from Foresee, and 1TB is from Kioxia.
NVMe M.2 2280 SSD 1TB-Seeed Studio
512GB NVMe M.2 PCle Gen3x4 2280 Internal SSD - Seeed Studio
PCIe speed | PCIe Gen2.0 x1/PCIe Gen3.0 x1 |
Power Supply | 5V/ 2A(max 2A: Pogo pin 1A+PCIe connector 1A) |

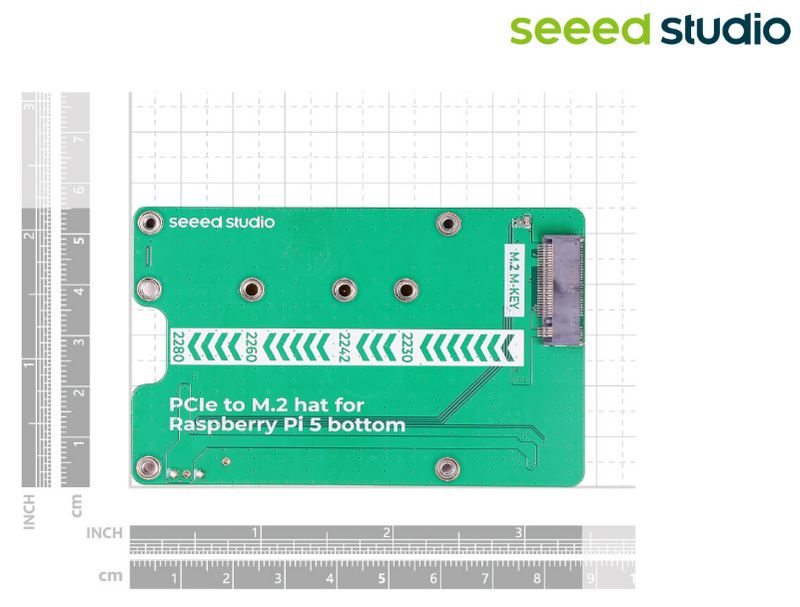

M.2 size | 2230/2242/2260/2280 |
- Support Hailo8/8L AI NPU acceleration
- Raspberry Pi large-capacity storage
- Booting a Raspberry Pi from the SSD
- 3D print case stp file
