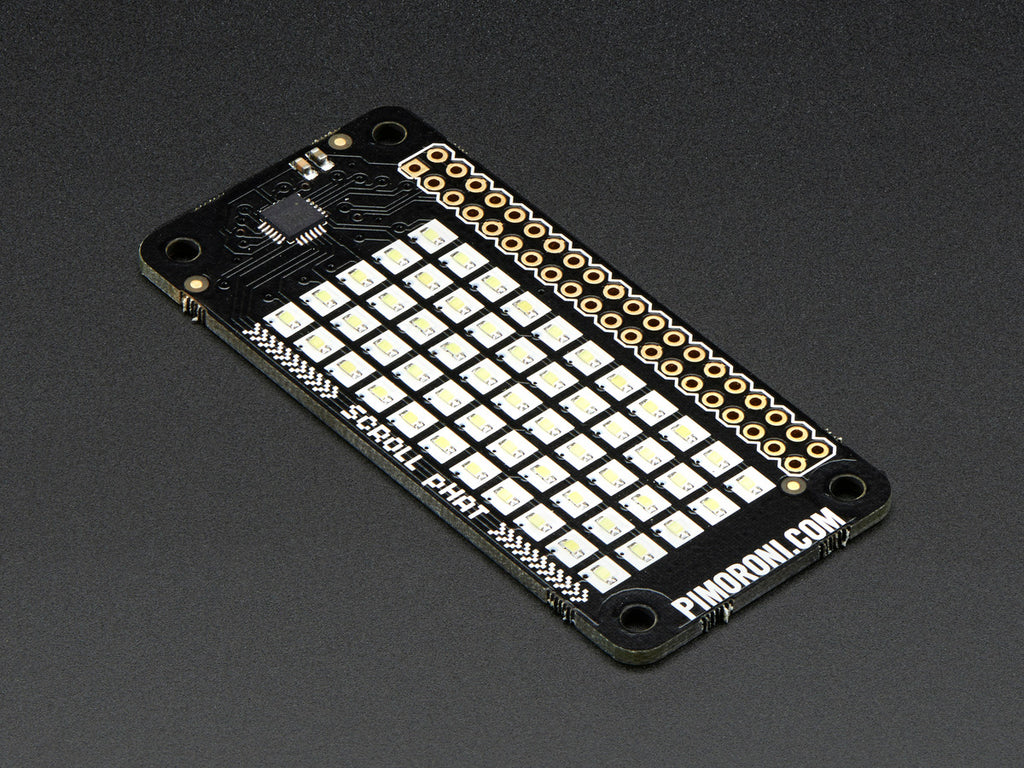

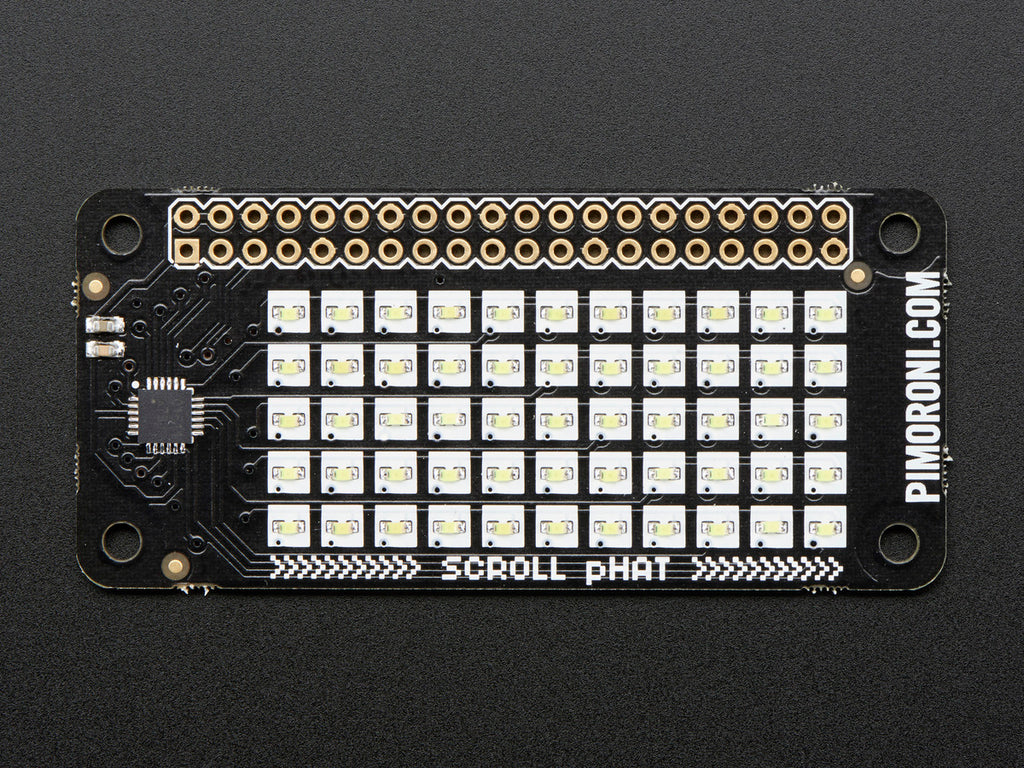

Let your Pi talk back with this slick little 11x5 LED matrix Scroll pHAT! The Scroll pHAT provides a matrix of 55 white LED pixels that is ideal for writing messages, showing graphs, and drawing pictures. Use it to output your IP address, show CPU usage, or just play very-low-rez pong!

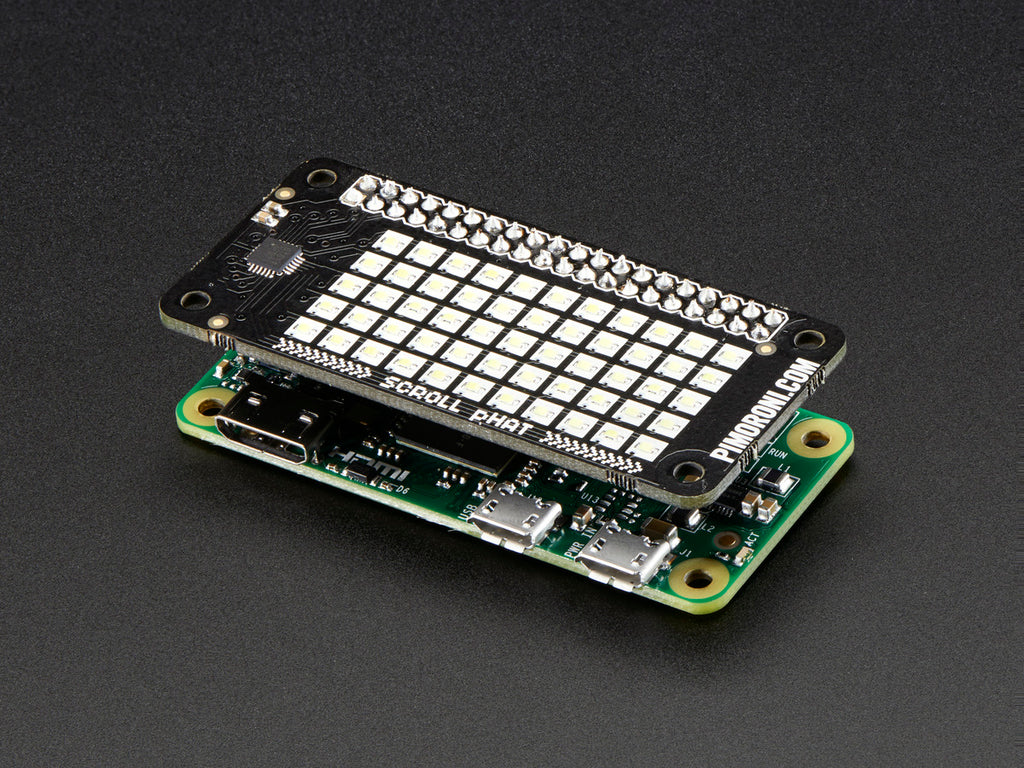

Though designed to match the format of the Raspberry Pi Zero it is compatible with all 40-pin GPIO Raspberry Pi variants (2/B+/A+).
Features:
- 55 white LEDs
- Brightness control
- Python API
- pHAT format board
- Communicates with the Pi over I2C interface

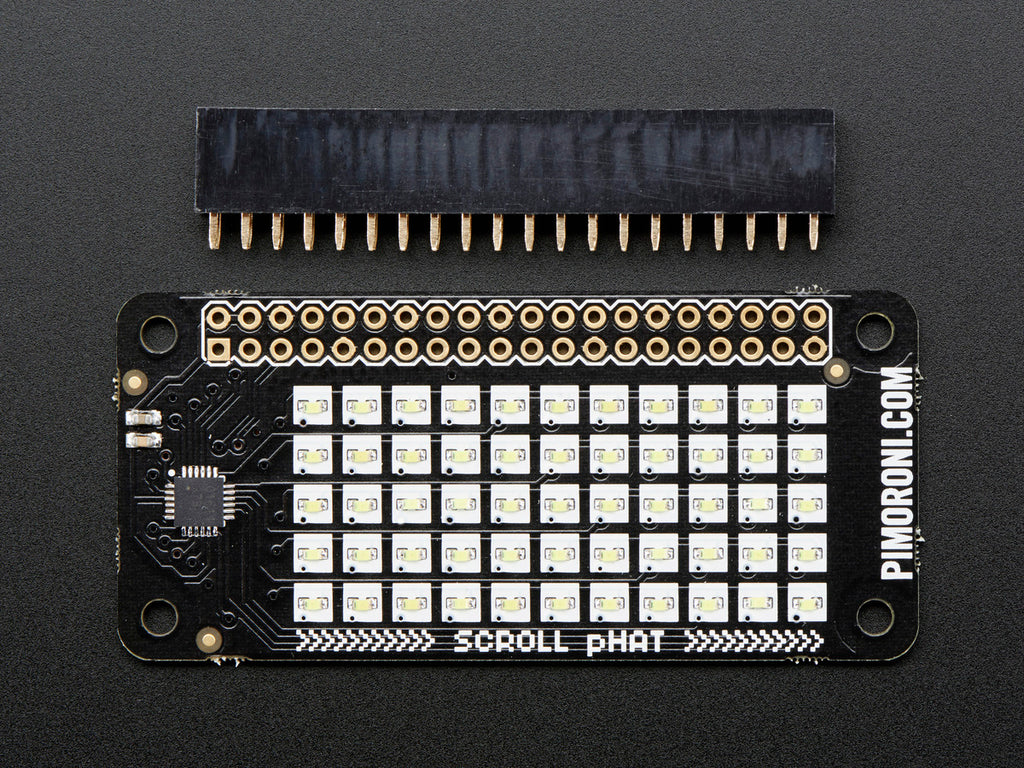

Kit includes: Assembled Scroll pHAT PCB & 2x20 0.1" female GPIO header, some light soldering is required to attach the header on, or you can of course solder the pHAT right onto the Pi Zero
At the heart of Scroll pHAT is ISSI's IS31FL3730 matrix LED driver chip. It can drive multiple LED matrix and segment display formats and also supports controllable display brightness. You can find the Python library on Github.
Raspberry Pi not included!
Technical Details
- IS31FL3730 Datasheet
- 65mm x 30mm x 2.2mm / 2.56" x 1.18" x 0.09"
- Weight (assembled): 10.7g
For product support, replacement parts and warranty for Pimoroni products visit the Pimoroni forum or contact Pimoroni directly.
