PRODUCT DETAILS

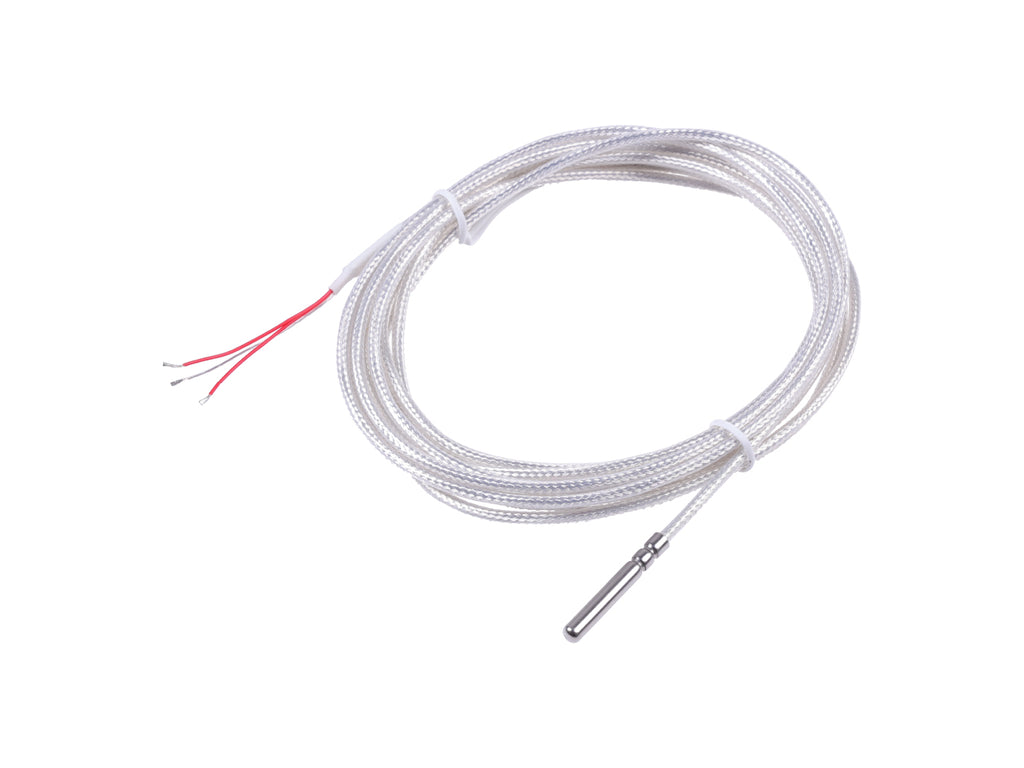

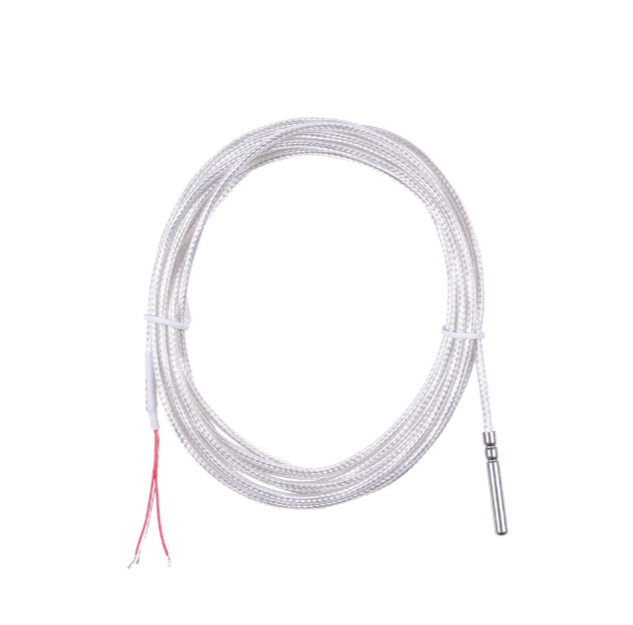

The highly accurate PT1000 sensor, capable of measuring temperatures within a wide range of -50°C to 300°C, is commonly used in various industrial applications, especially in liquid detection, food monitoring, storage cold chain, industrial boilers, and aquaculture solutions. PT1000 sensors, also known as 1000-ohm temperature sensors, represent the most prevalent type of platinum resistance thermometer.
Feature
- High-performance: anti-interference and long-term stability
- Easy to install: small size, lightweight, easy to install
- Fast response: sensitive to temperature changes and responds quickly
- Wide temperature range: a wide range of -50°C to 300°C
Description
Direct contact temperature is an important indicator in many scenarios, especially in liquid detection, food monitoring, storage cold chain, industrial boilers, and aquaculture solutions. PT1000 can offer a wide range of direct contact temperatures between -50°C to 300°C.
We also provide wireless DTU of PT1000: LoRaWAN Temperature Sensor S2107, which supports a three-wire circuit for PT1000 sensors and allows for the connection of up to three sensors simultaneously. S2107 is a battery-powered IP66 wireless PT1000 temperature sensor, equipped with built-in Bluetooth and APP service for OTA configuration and remote device management.
Seeed also provides the SenseCAP Portal and SenseCAP Mate App to help users better manage and check data remotely.
Add 3 PT1000 sensors to S2107:
Application
- Liquid detection
- Food monitoring
- Storage cold chain
- Aquaculture solutions
Specification
Temperature(PT1000) | |
Measuring element | RTD platinum resistance Pt1000 |
Measuring medium | Solid, liquid or gas (compatible with contact material) |
Range | -50 to 300 ℃ (For other range customization contact [email protected], MOQ 300pcs) |
Accuracy | Class B+ (@typical ±0.5℃) |

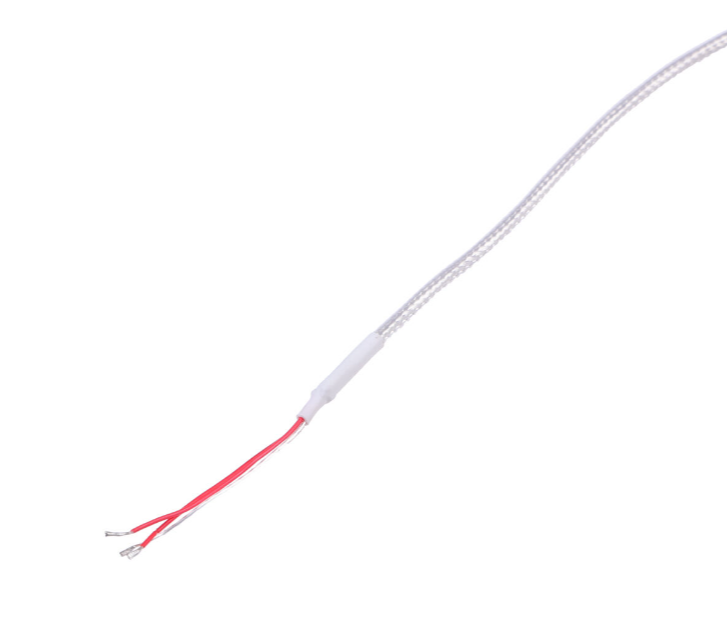

Wire material | PTFE silver-plated wire (3-wire) |

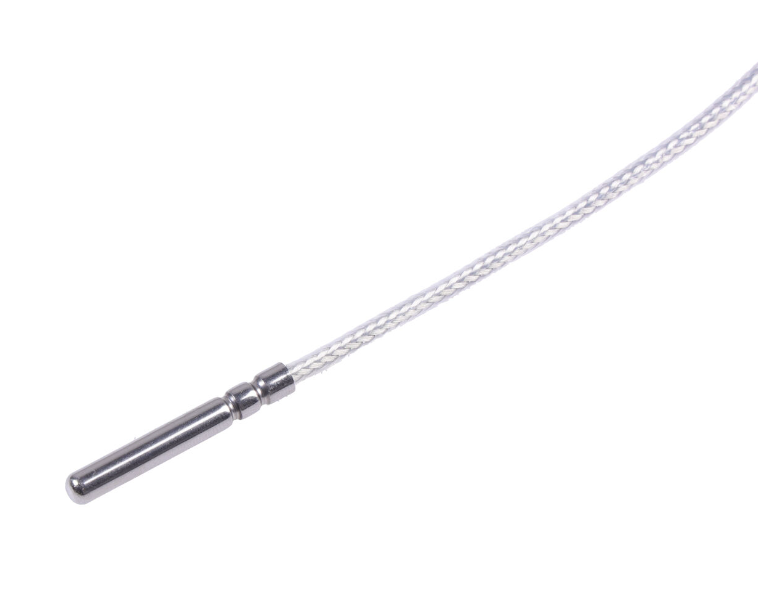

Probe Enclosure | 304 stainless steel |
Operating Temperature | -50 to 200℃(Cable); -50 to 300℃ (Probe) |
IP Rating | IP68 |
Probe length | 4 * 30mm |
Cable length | 3 meters |
ECCN/HTS
| HSCODE | 9025191010 |
| USHSCODE | 9026104000 |
| UPC | |
| EUHSCODE | 9013101000 |
| COO | CHINA |
