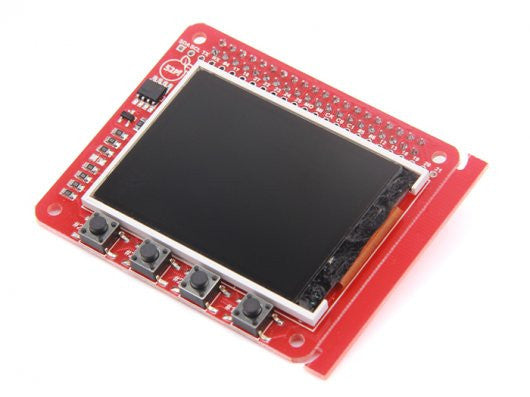

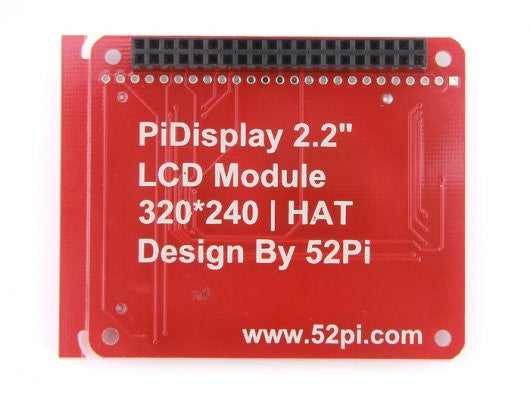

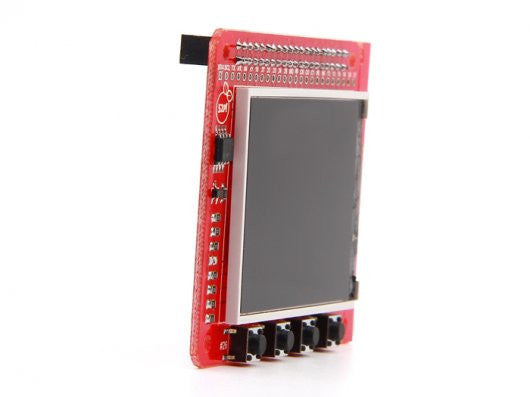

The PI-TFT22A module features a 2.2'display with 320x240 16-bit color pixels. This PI-TFT22A module refresh it's screen rapidly because the TFT module communicate with raspberry Pi in a high speed SPI interface ,this PI-TFT22A module can be used as Xwindow port ,displaying images or video etc. it plugs right in on top of your Model A+, B+ or Pi 2 and fits as HAT.
You can download configuration-free image or configurable packages, adjustable brightnes [level 0 -255], HAT compatible and Onboard buttons, you can load kernel modules to support GPIO KeyBoard function, almost all GPIO available on this board [non SPI 0,GPIO 18,GPIO 24,GPIO23],Very easily be other uses, IDROM has built initialization data to support Device Tree boot
Technical Details:
Technical Details: | type value |
| product name | RPI_2.2'TFT Display Module |
| character number | 320×240 |
| screen scale | 2.2' |
| refresh rate | >20fps |
| weight | 23.9g |
| module scale | 66x57x12(mm) |
| connect port | 2*20 Stacking Header |
| control interface | SPI |
| work voltage | 5V |
Part List:
- 1 x Display Module
