The Raspberry Pi M.2 HAT+ facilitates the connection of M.2 peripherals, including NVMe drives and AI accelerators, to Raspberry Pi 5's PCIe 2.0 interface. This allows for quick (up to 500 MB/s) data transfer between NVMe drives and other PCIe accessories.
Overview

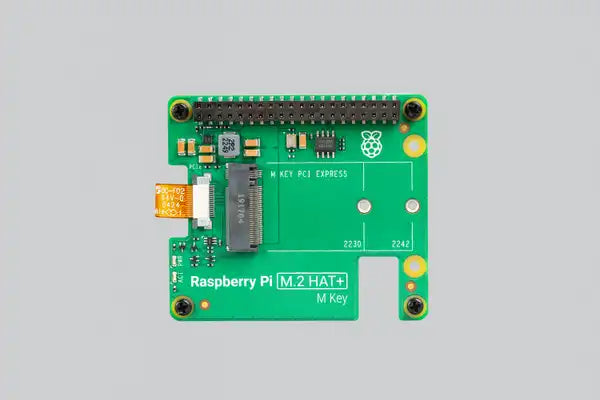

Raspberry Pi 5’s single-lane PCI Express 2.0 interface is exposed on a 16-pin, 0.5mm- pitch FPC connector; the M.2 HAT+ M Key is a mechanical adapter board that converts between this connector and a subset of the M.2 standard. It supports devices that have the M.2 M key edge connector, in the 2230 and 2242 form factors. It is capable of supplying up to 3A to connected M.2 devices.

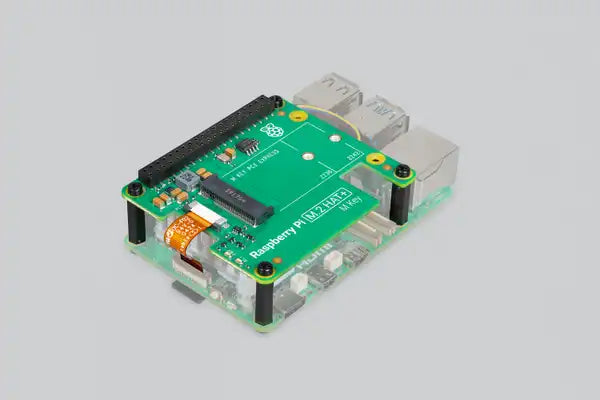

The Raspberry Pi M.2 HAT+ conforms to the Raspberry Pi HAT+ specification and is autodetected by the latest Raspberry Pi software/firmware. It is supplied with a 16mm stacking header and threaded spacers, so it can be fitted to a Raspberry Pi 5 with the Raspberry Pi Active Cooler in place.
Specifications
Supports single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
Supports devices that use the M.2 M key edge connector • Supports devices with the 2230 or 2242 form factor
Capable of supplying up to 3A to connected M.2 devices • Includes power and activity LEDs
Conforms to the Raspberry Pi HAT+ specification
Supplied with ribbon cable, 16mm stacking header, threaded spacers and screws, and knurled double-flanged screw to secure and support the M.2 peripheral
Obsolescence Statement
Raspberry Pi M.2 HAT+ will remain in production until at least January 2032
