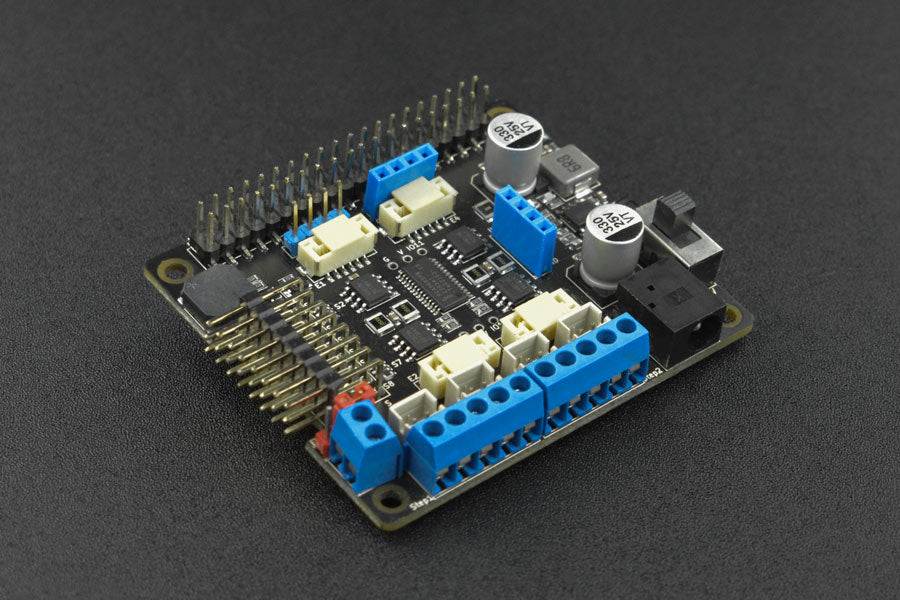

Raspberry Pi Motor Driving Expansion Board (Compatible with Raspberry Pi 4B / 3B+ / 3B / Zero)

Price:
Sale price A$50.69   Inc. GST
SKU:
DF-DRI0054
1 unit Ships in 24 hours
22 units Ships in 7 to 10 days

The multifunctional motor driver expansion board is designed for Raspberry Pi Zero/Zero W/A+/B+/2B/3B/3B+/4B. This fully-featured robot motor expansion board is capable of supporting multiple motors, stepper motors, and servos simultaneously. It also provides spare camera and DIP display screen ribbon interfaces and can be used in stack layers to expand more control interfaces. The control interface uses a simple I2C interface, compatible with 3.3V/5V levels, and also includes a UART interface for easy communication with external devices. Additionally, it features a built-in DC-DC voltage stabilizing circuit, ensuring a stable power supply for Raspberry Pi with a current reach of up to 3A.

This expansion board is particularly suitable for applications such as DIY robots, smart cars, robotic arms, intelligent cloud decks, and more.

Interfaces Diagram of the Raspberry Pi Motor Driver Expansion Board

Figure: Interfaces Diagram of the Raspberry Pi Motor Driver Expansion Board

Features:

  • Supports driving 8 servos simultaneously. 3Pin (black, red, blue GVS) standard interface wiring, convenient for connecting servos, servo power can switch to external independent power supply
  • 12-bit resolution, adjustable PWM frequency up to 1.6KHz, configurable push-pull or open-drain output
  • Supports 4-way 6~24V DC motors, PH2.0 interface or screw terminal
  • Suitable for Raspberry Pi Zero/Zero W/A+/B+/2B/3B/3B+/4B
  • Reserved camera and DIP display screen ribbon interface
  • The expansion board reserves 2 IIC expansion interfaces, 1 serial interface
  • Onboard passive buzzer, onboard infrared receiver
  • Applications:

  • DIY robots
  • Smart cars
  • Robotic arms
  • Intelligent cloud decks
  • Specification:

  • Power supply voltage: 6 ~ 25V
  • Power interface: DC2.1 interface or 3.5mm wiring column
  • PWM servo interface ×8
  • DC motor interface ×4
  • Encoder motor drive interface ×4 6 ~ 25V
  • The IIC address of the driver board is 0x60
  • Documents:

  • Product wiki
  • Tutorial
  • Schematic
  • Product Includes:

  • Raspberry Pi Driving Board × 1
