With any Raspberry Pi project you may reach a step that involves putting our products in out-of-the-way locations, where they act as a bridge between the network and the physical world. But the more out-of-the-way the location, the more challenging it is to get power.
PoE offers one solution to this problem, allowing you to send power from Power Sourcing Equipment (PSE) to a Powered Device (PD) over the same four-pair cabling used to carry Ethernet data. All Raspberry Pi single board computers since 2018 have been able to function as a PoE device, when equipped with an optional PoE or PoE+ HAT.
If you happen to have a all-in-one PoE switch, you could use that as the power and network supply for multiple devices. But if you don't want a switch, or if you just have one device, or maybe you can't change the upstream switch, then you can use a midspan injector like this one!

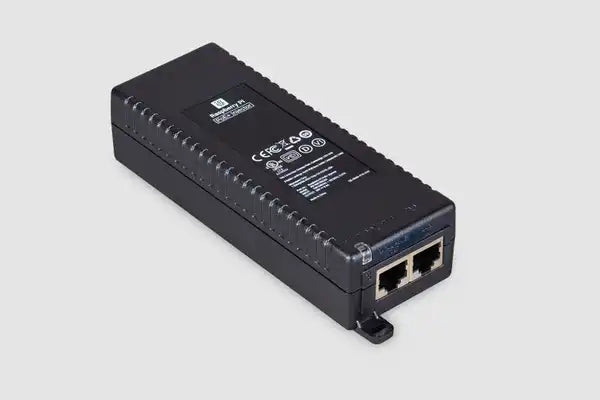

The new Raspberry Pi PoE+ Injector is the perfect way to power your networked Raspberry Pi projects (and other PoE devices) without needing a PoE switch. It supports both the IEEE 802.3af (PoE, 13W) and IEEE 802.11at (PoE+, 25W) standards, and mains voltages between 100V and 240V.
A 'standard' IEC power cable is not included, you almost certainly have many in your cable-box or in the IT department's cable collection. You'll also need an Ethernet cable!
Technical Details
Specifications:
- Data rate: 10/100/1000 Mbps
- Input voltage: 100 to 240 V AC
- Output power: 30W
- Power output on pins: 4/5 (+), 7/8 (–)
- Nominal output voltage: 55 V DC
- Dimensions: 159 mm (L) × 51.8 mm (W) × 33.5 mm (H)
- Data connectors: Shielded RJ-45, EIA 568A and 568B
- Power connector: IEC c13 mains power input (not included)
- Operating ambient temperature: –10⁰C to +50⁰C
- Operating humidity: Maximum 90%, non-condensing
- Storage temperature: –20⁰C to +70⁰C
- Storage humidity: Maximum 95%, non-condensing
- Operating altitude: –300m to 3000m
- MTBF: 200,000 hrs @ 25⁰C
