Note:
reComputer R1100 provides flexible IoT wireless communication(4G, LoRa®, Wi-Fi/BLE, Zigbee) and essential functional modules (GPS, UPS, TPM2.0, PoE, SSD, etc.).
Parameter | Description | |
Hardware Spec | ||
Product Series | R1100 Series | R1000 Series |
CPU | Raspberry Pi CM4, Quad-core Cortex-A72@ 1.5GHz | |
Operating System | Raspbian, Debian, Yocto, Buildroot | Raspbian, Debian, Yocto, Buildroot |
RAM | 1GB/2GB/4GB/8GB | |
eMMC | 8GB/16GB/32GB | |
System Spec | ||

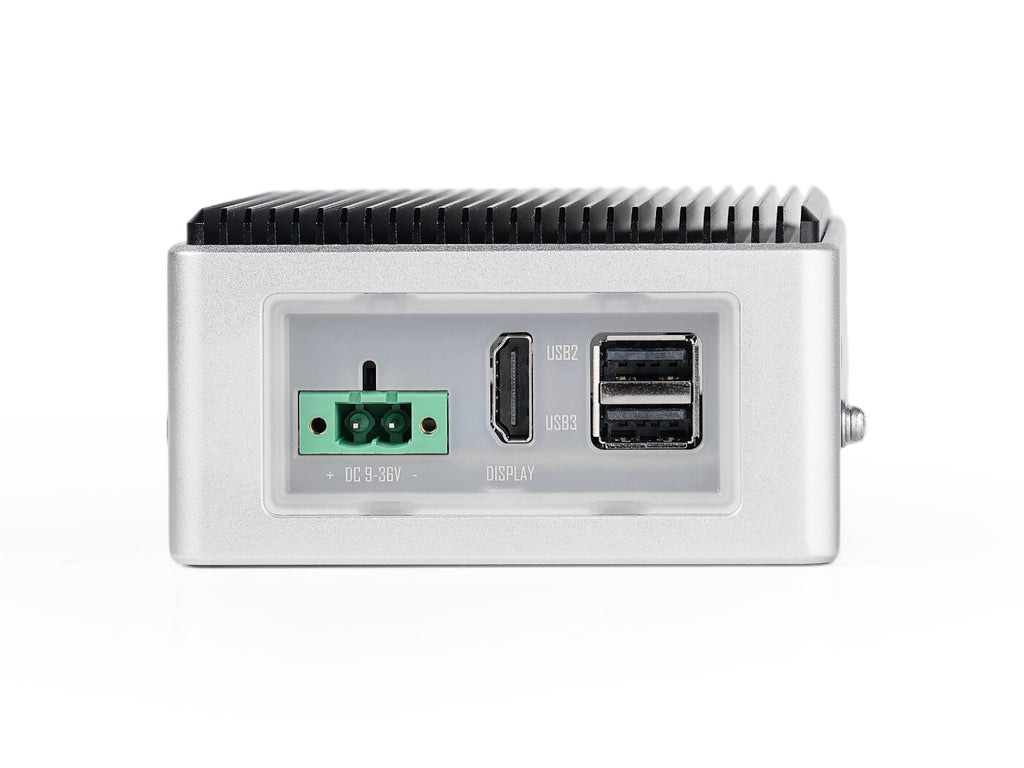

Power Input | DC 9V~36V, 2-pin Terminal Block | AC12~24V/ DC 9~36V, 2-pin Terminal Block |
PoE(as powered device) | IEEE 802.3af Standard 12.95W PoE* | |
Power Consumption | Idle:2.88W; Full Load:5.52W | |
Power Switch | No | |
Reboot Switch | Yes | |
Interface | ||

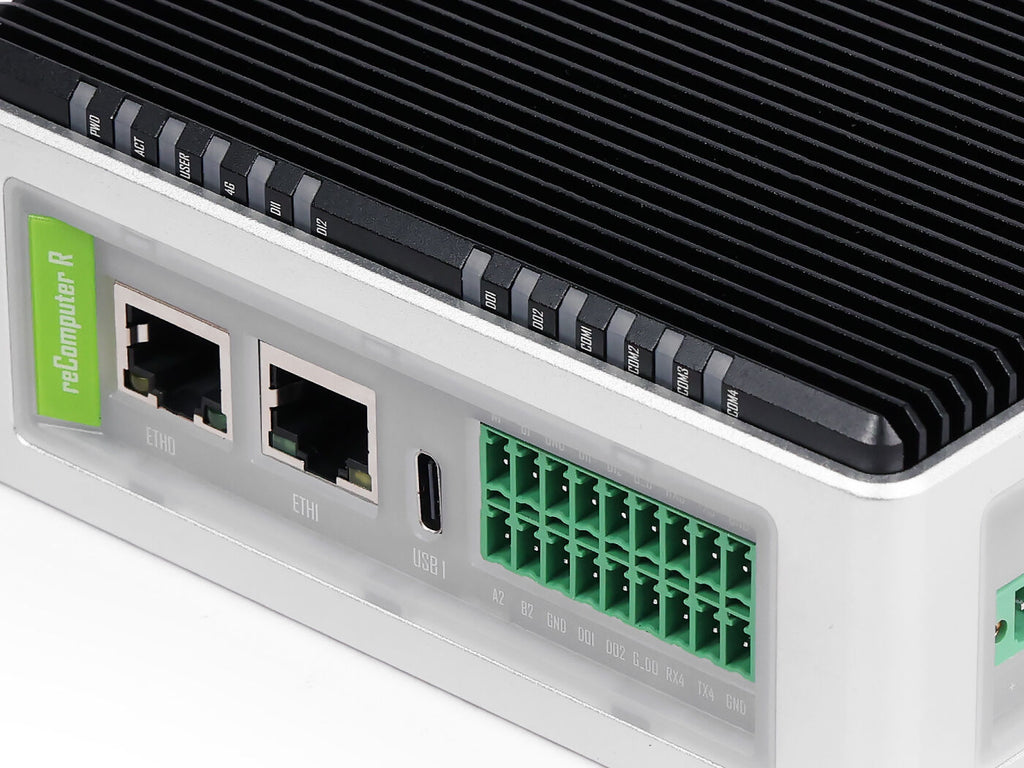

Ethernet | 1 x 10/100/1000 Mbps (Supports PoE*) | |
1 x 10/100 Mbps IEEE802.3/802.3u | ||
USB | 2 x USB-A 2.0 Host | |
1 x USB-C 2.0 (For flashing OS) | ||
RS485 | 2x RS485(Isolated) | 3x RS485(Isolated) |
RS232 | 2x RS232(Isolated) | / |
DI | 2 x Isolated DI Ports | / |
Input Voltage: 5~24V DC | ||
DO | 2 x Isolated DO Ports | / |
Output Voltage: <60V DC | ||
HDMI | 1 x HDMI 2.0 | |
SIM Card | 1x Nano SIM Card Slot（Internal） | 1x Standard SIM card slot |

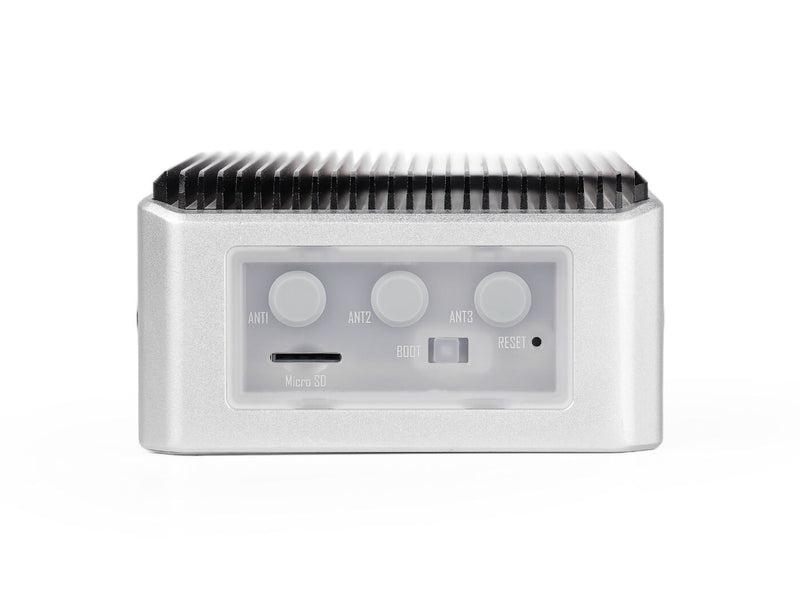

SD Card | 1x Micro SD Card Slot | / |
SSD Card | 1x M.2 NVMe SSD Slot 2280-M Key | |
LED | 12 x LED Indicators | 6 x LED indicators |
Buzzer | 1 | |
Reset Button | 1 | |
Wireless Communication | ||
Wi-Fi 2.4/5.0 GHz | On-chip Wi-Fi | |
BLE 5.0 | On-chip BLE | |
LoRa®* | USB LoRa®*/SPI LoRa®* | |
4G Cellular* | 4G LTE* | |
Zigbee* | Zigbee* Module | |
Standards | ||
EMC | ESD: EN61000-4-2, Level 3 | |
EFT: EN61000-4-4, Level 2 | ||
Surge: EN61000-4-5, Level 2 | ||
Certification | CE | |
FCC | ||
TELEC | ||
RoHS | ||
Ambient Conditions | ||
Ingress Protection | IP40 | |
Operating Temperature | -30~70 °C | |
Operating Humidity | 10~95% RH | |
Storage Temperature | -40~80 °C | |
Others | ||
Supercapacitor UPS* | SuperCAP UPS LTC3350 Module* | |
Hardware Watch Dog | 1~255s | |
RTC | High Accuracy RTC | |
Security | Encryption Chip TPM 2.0*/ATECC608A | |
Heat Dissipation | Fanless | |
Warranty | 2 years | |
Production Lifetime | Until December 2030 | |
Statement | Options marked with * require additional purchase according to the accessories list. | |
The application of the reComputer R1100 spans five key areas
reComputer R1100 Schematic Design, PCB Design

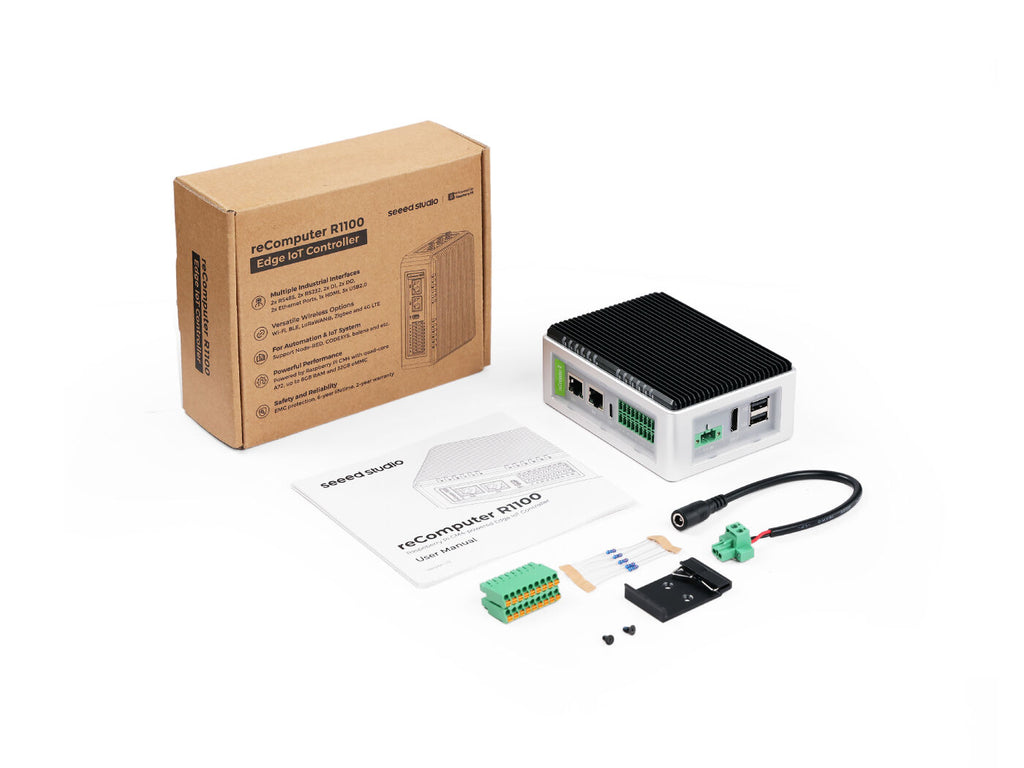

| reComputer R1100 | x1 |

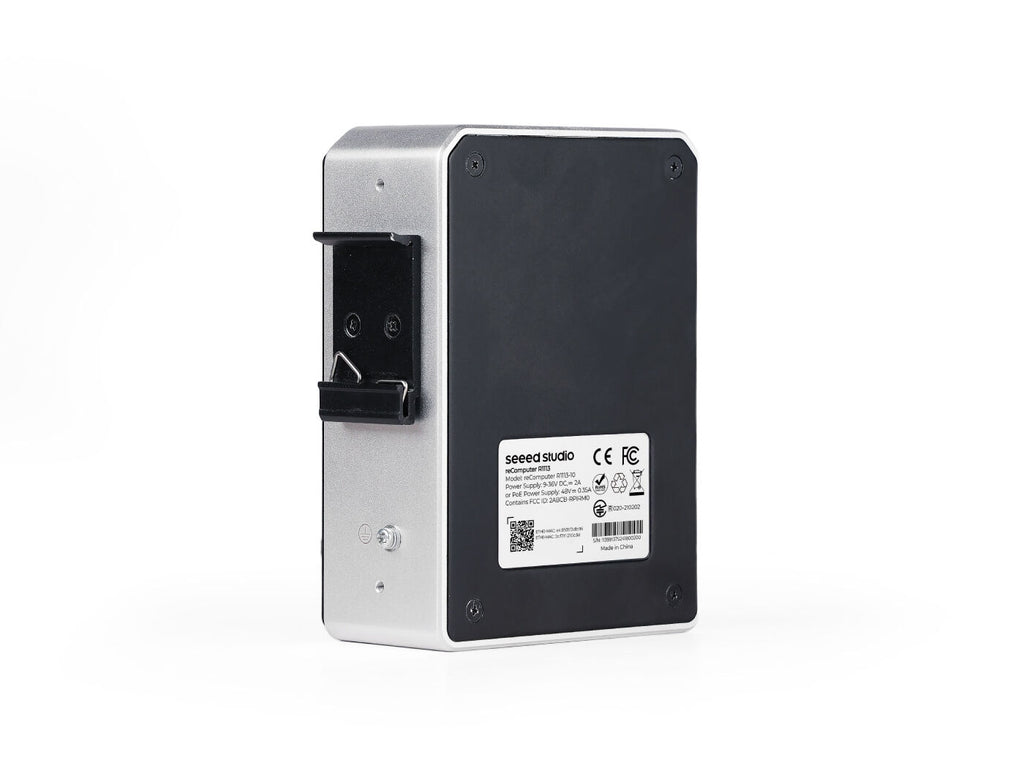

| DIN-rail clip | x1 |
| Screw Pack | x1 |
| DC Power Female Jack to Screw Terminal Adapter | x1 |
| 9*2-pin Terminal Block Connector (Male) | x1 |
| 120Ω Resistor | x1 |
| User Manual | x1 |
| HSCODE | 8537109090 |
| USHSCODE | 8471490000 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
