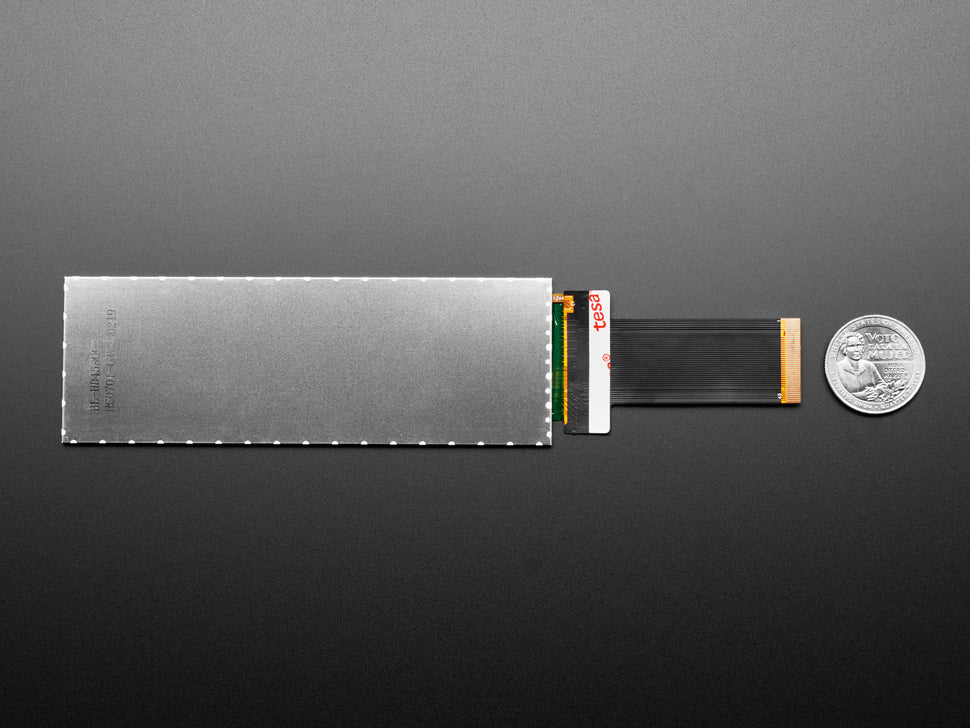

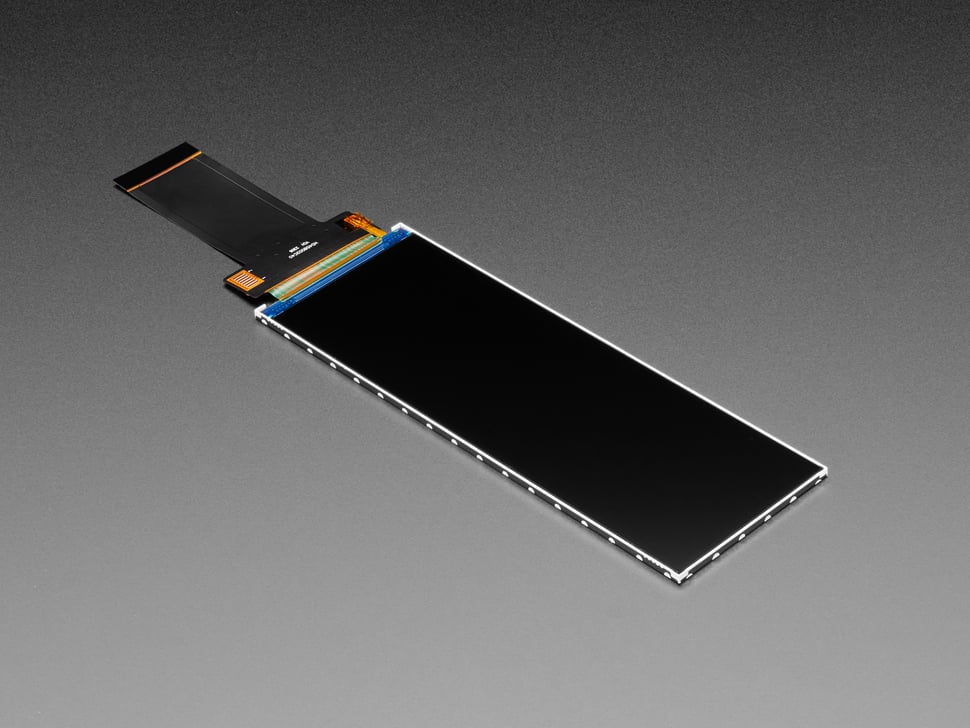

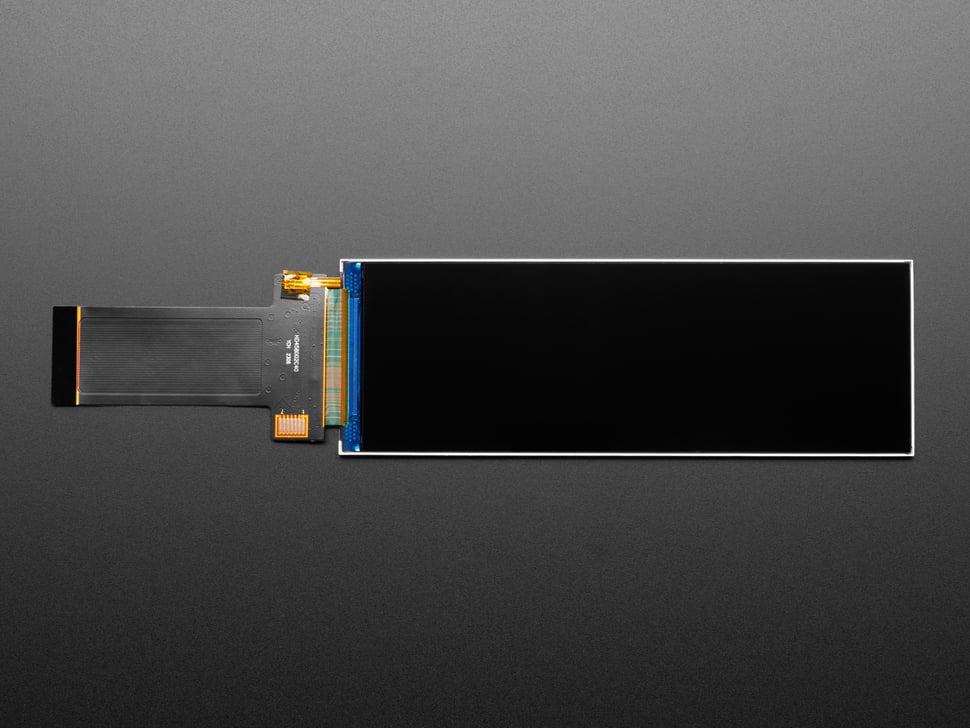

This rectangular bar TFT display, measuring 4.58" in length and with 360x960 16-bit full-color pixels, is ideal for experienced users with high expectations. An IPS panel ensures great color fidelity up to 80° off-axis in any direction.
This version does not have a touchscreen.
The driver for this TFT display is the ST7701S, using both SPI and TTL RGB 'dot clock' formats. It is not possible to draw pixels over SPI - the SPI is designed only for configuration. Furthermore, the 40-pin connector does not follow the expected pinout of the standard 'rectangular' 800x480 (4.3", 5" or 7") or 480x272 (4.3") displays, making this 4.58" TFT display unique.
For an immersive lighting experience, a powerful microcontroller such as the ESP32-S3 with octal PSRAM or a computer like a Raspberry Pi must be used to perform the TTL RGB TFT driving. This display also features an internal memory of 400x960 pixels, with the leftmost 80 pixels blacked out for overscan. This Rectangle Bar RGB TTL TFT Display - 4.58" 360x960 No Touchscreen cannot be simply wired up to a Feather or Arduino.
This is just the display module! No PCB is included.
You cannot use these with an everyday microcontroller unless it specifically has support for RGB-666 displays so please do not purchase unless you know for sure that it can plug into a driver board with the correct pinout as well. Check out the Adafruit Qualia ESP32-S3 for TTL RGB-666 Display!
