Note
The LTE Cat 4 EC25 for North American operators and EMEA and Thai operators is available now

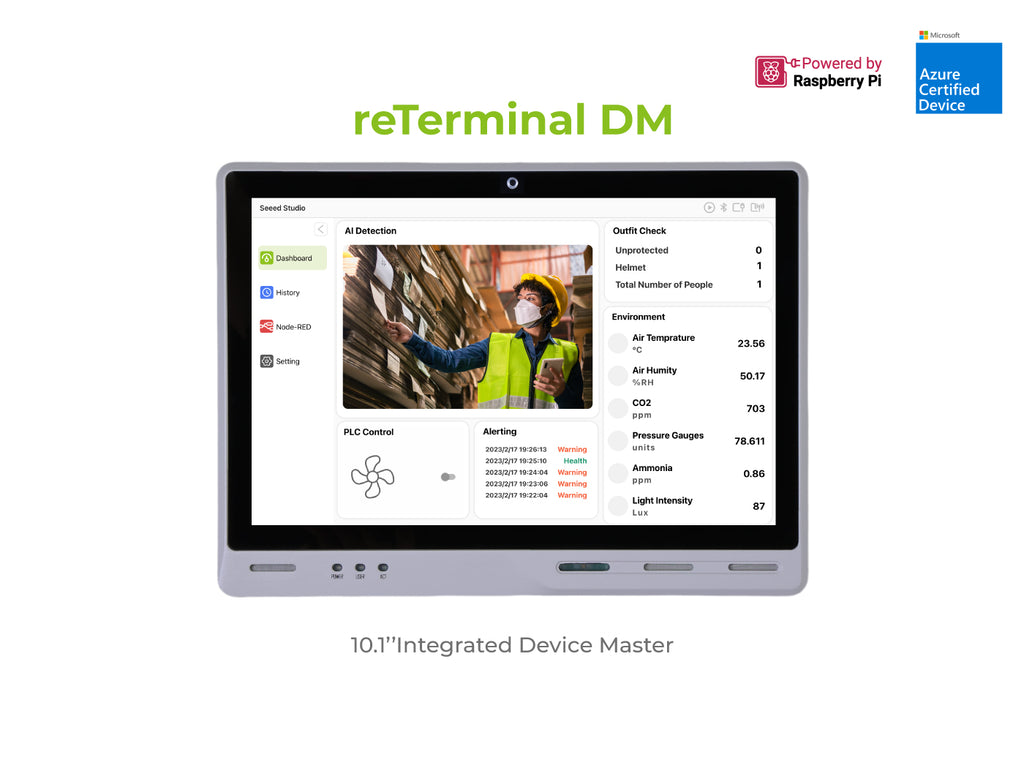

reTerminal DM is a Panel PC, HMI, PLC, IIoT Gateway all-in-one device powered by Raspberry Pi CM4, with 10.1'' IP65 front panel and rich industrial interfaces, and natively integrated with Node-RED and supports Raspberry Pi-based software ecosystem. This advanced version integrates a cameras and a PoE module, designed for much wider applications.
Feature
- Rugged design for harsh working environment: IP65 front panel, -10~50°C operating temperature
- Open-source design in software and hardware: Powered by Raspberry Pi CM4, easy for customization or derivatives with the PCIe extensions design, integrated a camera and a PoE module
- Cost-effective Device Master: HMI, PLC, Panel PC and gateway all-in-one. Perfect for the distributed hub devices
- Low code programming for event-driven applications: Natively integrated Node-RED for flow-based editing and one-click deployment, compatible with all software runs on Raspberry Pi
- Hybrid connectivity: Support 4G LTE, LoRaWAN®, WiFi, BLE, RS485/RS232, CAN bus, 1000M Ethernet, USB, HDMI
- Product Warranty: Two-year warranty
Application
reTerminal DM is an integrated device master that can function as an HMI/PLC/Gateway/Panel PC all-in-one device, working in the edge layer of the IOT architecture, unifying data flow, and managing onsite devices, reducing the big gap between legacy systems and modern IT infrastructures in various application scenarios. It can downlink to the edge devices
- edge controllers, coordinating legacy machines by talking unlimited protocols and flexible software.
- gateways and environmental sensors, connecting to the IT infrastructure to provide a new frontier of data to adapt to changes.
- AI boxes, offer better insights and are able to handle multi streams with easy setups. By combining them with AI and automation, many more operations will be industrialized.
And uplink to the cloud and application end with its hybrid connectivity capabilities.
Your Trustworthy Provider of Raspberry Pi Customization Service
With decades of ODM & OEM experience and an in-depth understanding of popular open-source hardware, we promise you professional and flexible customization service for our existing Pi devices and your creative Pi-based idea. Flexible PCIe extensions design for NVME SSD, Dual 1000M Ethernet, Dual USB 3.0, COM Port RS485/232, and more customizations.
Specification
Basic | ||
CPU | CM4 Quad-core [email protected] 1.5GHz | |
Memory | 8GB | |
Storage | 32GB eMMC M.2 NVMe SSD Slot 2280-M Key (optional) | |
OS Support | Raspbian SenseCraft Edge OS | |
Display | ||
Size | 10.1'' | |
Max. Resolution | 1280 x 800 | |
Max. Colors | 16.7M (8-bit) | |
Luminance (nit) | 400 | |
Viewing Angle (H/V°) | 170/170 | |
Backlight Life (hrs) | 30000 | |
Touch Type | 10-point Capacitive | |
Pencil Hardness | 7H | |
Video&Audio | ||
Video | HDMI2.0 | |
Audio | Microphone x 2 Buzzer 3.5mm Audio Jack | |
Camera | Connector: CSI Chip type: Sony IMX219 Resolution for image: 3280x2464 Resolution for video: 1080p30, 720p60 and 640x480p90 Size: 25mm x 23mm x 9mm | |
Interfaces | ||
Ethernet | 1 x 10/100/1000 Mbps 2 x 10/100/1000 Mbps (optional) | |
USB | 2 x USB-A 2.0 Host 2 x USB 3.0 (optional) | |
RS485 | 1 x RS-485 > Terminal Block 1 xRS-485 > DB9 (optional) | |
RS232 | 1 x RS-232 > Terminal Block 1 xRS-232 > DB9 (optional) | |
CAN | 1 x CAN-BUS > Terminal Block | |
DI | 4x DI > Terminal Block | |
DO | 4x DO > Terminal Block | |
40pin GPIO | Inside | |
Wireless Communication | ||
Wifi | On-chip WiFi | |
BLE | On-chip BLE | |
LoRa | Mini-PCIe for LoRaWAN (optional) | |
Cellular | Mini-PCIe for 4G (optional) | |
Power | ||
Input | 2-pin Terminal Block | |
PoE | 12.95W PoE | |
Power Range | 12~24V DC | |
Power Consumption | 6W Typ. 9W Max. | |
Power Switch | NO | |
Reboot Switch | YES | |
Environment | ||
Ingress Protection | IP65 Front Panel | |
Operating Temperature | -10~50 °C | |
Storage Temperature | -20~70 °C | |
Humidity (Operating) | 10~95% RH | |
Mechanical | ||
Dimension (W x H x D) | 259.4 x 191 x 42.2 mm | |
Enclosure | Die-cast Aluminum Alloy | |
Mounting | Panel, VESA, Din-Rail | |
Weight (Net) | 1.8Kg | |
Certification | ||
CE, FCC, UCKA, RoHS, Telec, REACH | ||
EMC | ||
ESD | EN61000-4-2, Level 3 | |
EFT | EN61000-4-4, Level 2 | |
Surge | EN61000-4-5, Level 2 | |
Others | ||
RTC | High Accuracy RTC | |
Hardware WatchDog | 1~255s | |
Security | ATECC608A | |
Warranty | 2 Years | |
Heat dissipation | Fanless | |
Hardware Overview
ECCN/HTS
| HSCODE | 8471419000 |
| USHSCODE | 8471410150 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
