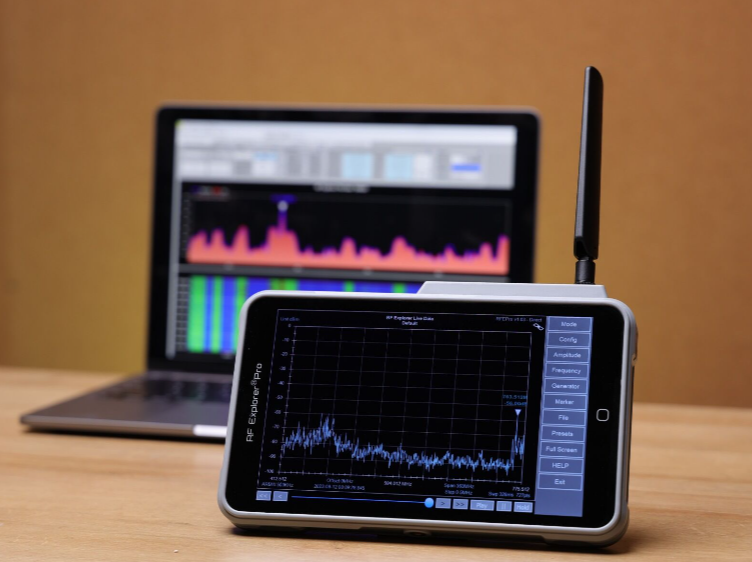

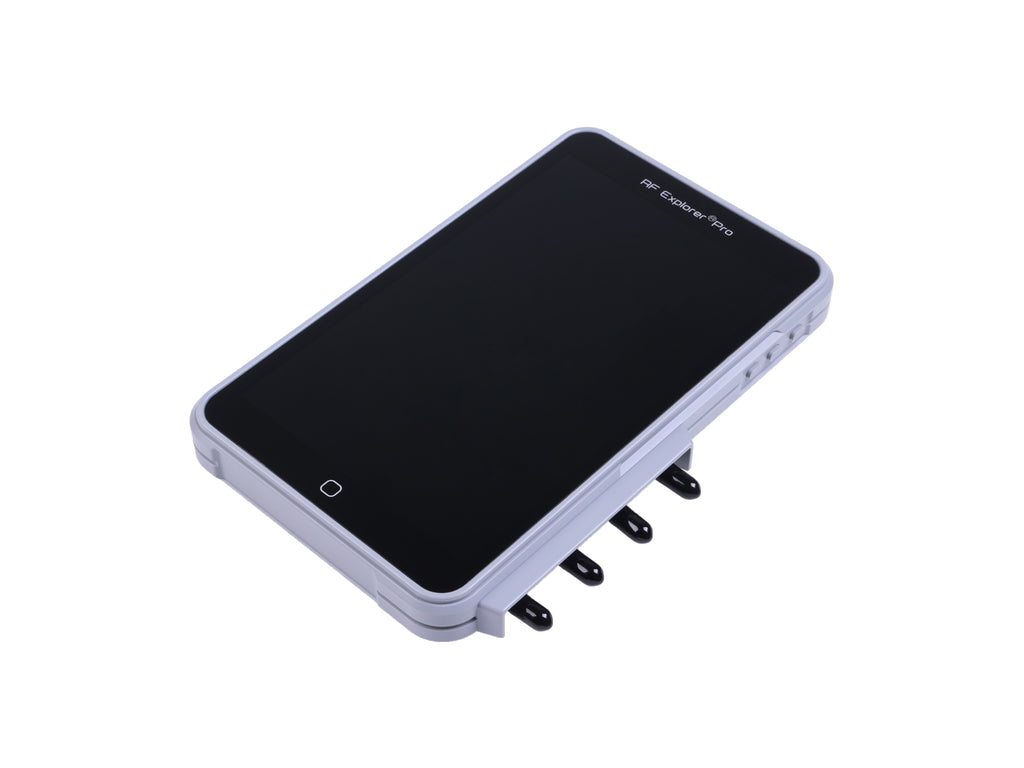

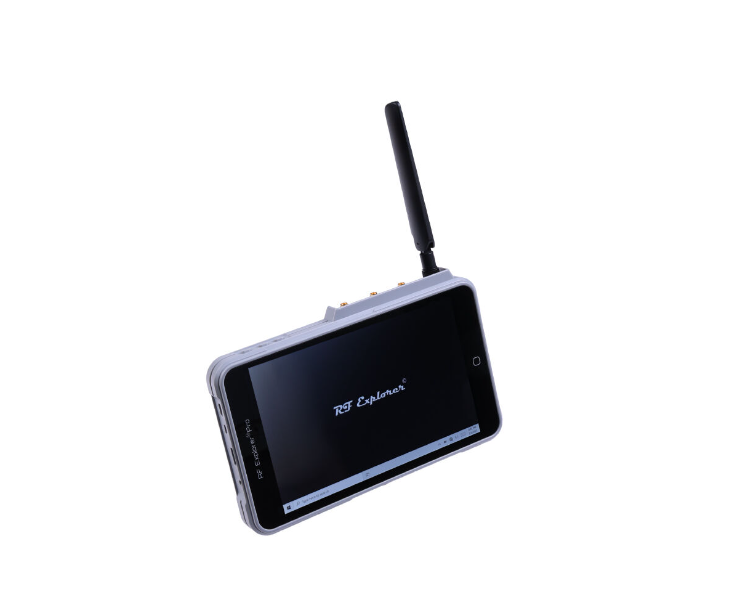

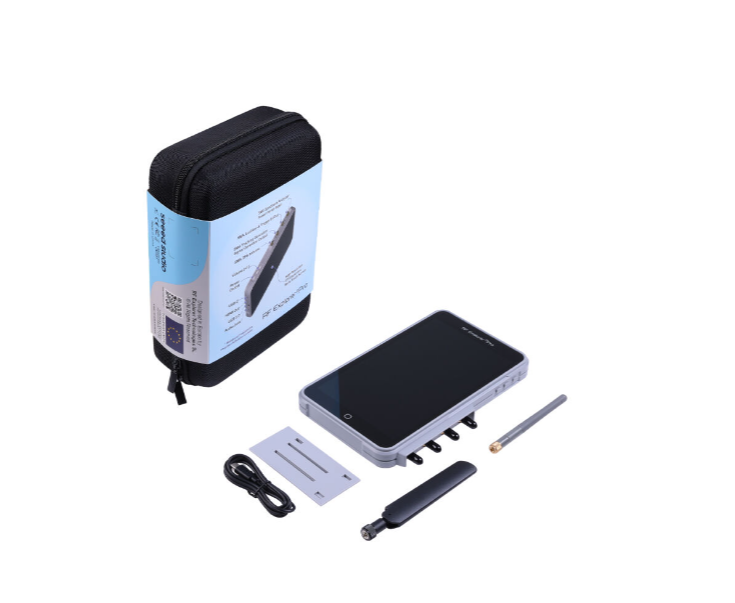

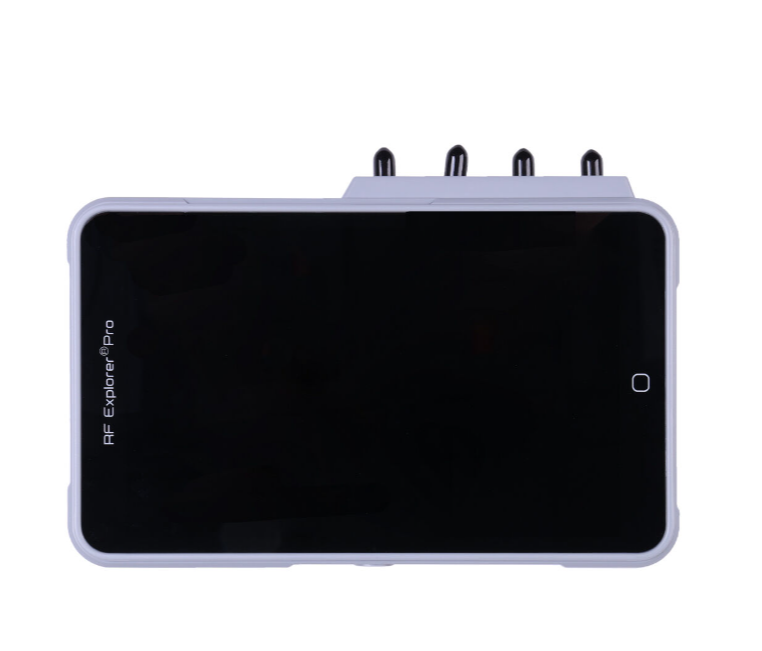

RF Explorer®Pro - Touch Screen Spectrum Analyzer

The RF Explorer®Pro is an integrated tool for RF analysis and optimization, boasting a Spectrum Analyzer, Power Meter, and Signal Tracking Generator. Precise sweeps, plus fast detection and continuous monitoring, ensure that users stay up-to-date on their spectrum. The device also offers an advanced touch all-screen display with a heatmap coverage map feature, perfect for various RF analysis and optimization applications.

Feature

• Highly-integrated instrument for enhanced RF analysis and optimization:

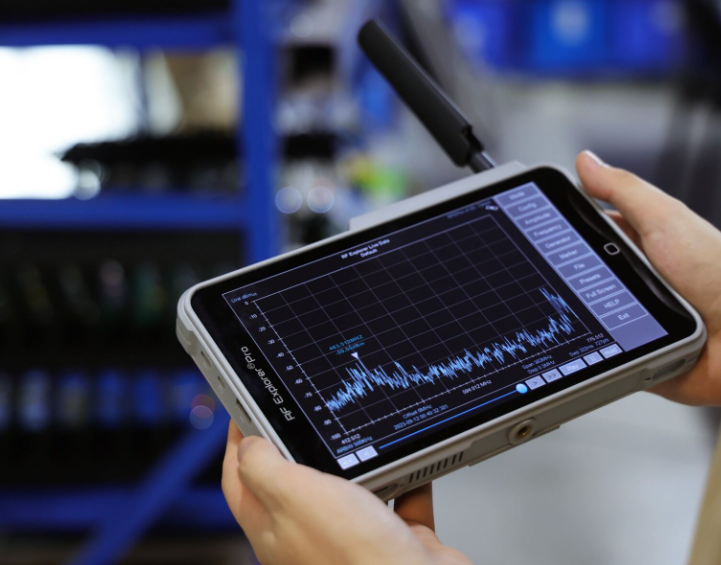

  • Spectrum Analyzer for 15MHz to 7.5GHz precise sweep spectrum analyzer scans with multiple advanced modes(Zero Span, Waterfall 2D and 3D, etc)
  • Power Meter for resolving 10MHz ~ 8GHz band detection events in just 100uS with the continuous model
  • Signal Tracking Generator for rapid diagnostics and characterization of cables, filters, and amplifiers with the ranger of 24MHz to 6GHz
• Advanced touch all-screen display: Offer 1280x800 pixels and 16.7M color, with 250 cd/m2 luminance and 800:1 contrast ratio
• Heatmap Coverage Map: Utilize the external GPS assistance and internal manual operation to measure signal strength on the go, creating a heatmap of coverage areas.
• Wi-Fi Analyzer: Detect signals across the 2.4/5.8GHz band, accurately identifying WiFi interference, collisions, and noise in any environment.

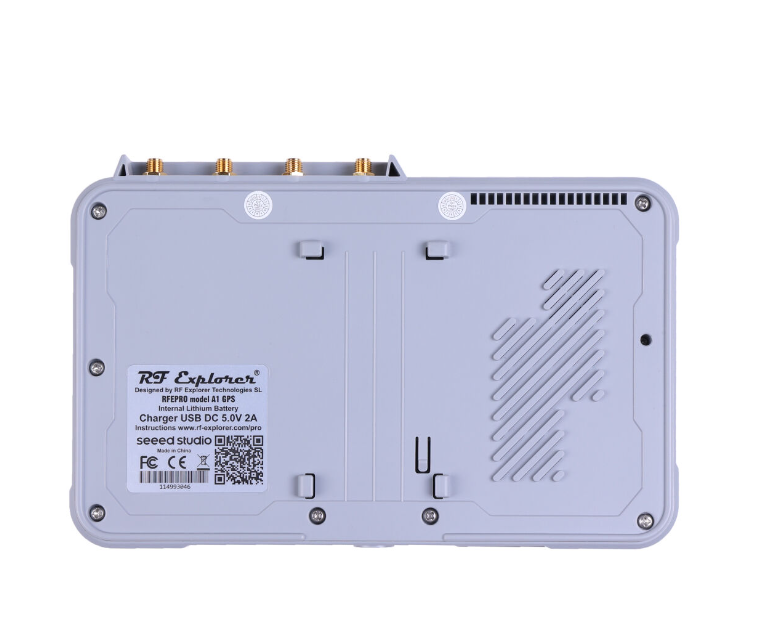

• Multiple Peripherals: 1x USB3.0, 1x Audio Jack, 1x Micro HDMI port, 1x Micro SD card slot, 1x Ethernet with USB adapter, 1x Internal Battery for easy porting

Please note: The unit is delivered with 15MHz to 3.3GHz support. An additional license is required to get 6GHz and 7.5GHz support.

Description

The RF Explorer®Pro is a cutting-edge RF instrument that combines an advanced touch screen, high-resolution display, and state-of-the-art RF electronics to deliver precise sweep spectrum analysis. It represents the culmination of more than 15 years of experience in developing robust RF high-frequency instruments that are both cost-sensitive and widely utilized worldwide.

Equipped with advanced modes like Zero Span, Waterfall 2D and 3D, and Power Channel, this analyzer offers enhanced flexibility to effectively handle a wide range of scenarios. It simplifies the capture and replay of elusive events, enabling optimal monitoring of IoT, radio packets, and continuous modulated and unmodulated signals.

The device's wideband design allows it to resolve 8GHz band detection events in just 100uS, ensuring accurate and fast detection across a broad frequency range. Its advanced power meter offers continuous and trigger modes for precise power measurement and analysis, with the trigger mode enabling the accurate capture of pulse and fast events that may be challenging to capture using other methods.

With the tracking generator feature, rapid diagnostics and characterization of cables, filters, and amplifiers are possible. When combined with a directional coupler, it can measure impedance and characterize antenna Voltage Standing Wave Ratio (VSWR).

The integrated internal preamplifier LNA and attenuators significantly increase the dynamic range of the device, enabling it to handle low-level and high-level RF signals effectively. Additionally, the cable tester allows for instant and easy checks of RF cables, ensuring their proper functioning.

Configurable radio standards enable easy channel measurements to match specific radio standards, ensuring compatibility and accuracy. The heatmap coverage map feature utilizes external GPS assistance and internal manual operation to measure signal strength on the go, creating a visual heatmap of coverage areas. Note that displaying geolocated data positions on a map currently requires a computer connected to the Internet.

Advanced frequency coordination features are specifically designed for A/V and Wireless Microphone applications, minimizing interference and intermodulation while enabling continuous monitoring.

The WiFi analyzer capability allows the detection of signals present on any 2.4/5.8GHz band channel, facilitating accurate identification of interference, collisions, and noise in WiFi environments.

The device offers the ability to automatically save scan data on RAM for easy replay of any event. The captured data can also be manually or automatically saved in binary and CSV formats for later use. Continuous monitoring and alerting ensure that users stay informed with reliable alerts, including configurable limit lines, to ensure critical events are not missed.

Seamless data export to USB drives is supported, allowing all captured data to be easily transferred and used in other software applications such as WSM, WWB6, Excel, or Matlab.

Application

• Multimedia and Wireless Audio
• Telecommunications and communications
• Wireless network deployment and optimization
• IoT
• RF engineering and testing
• Wi-Fi network analysis
• Broadcast and entertainment
• RF security and surveillance

Specification

This portion includes Spectrum Analyzer Specification, Wideband Power Meter Specification, Electrical and Mechanical Specification, and Electrical and Mechanical Specification

Spectrum Analyzer Specification

Wideband Power Meter Specification

Signal Tracking Generator Specification

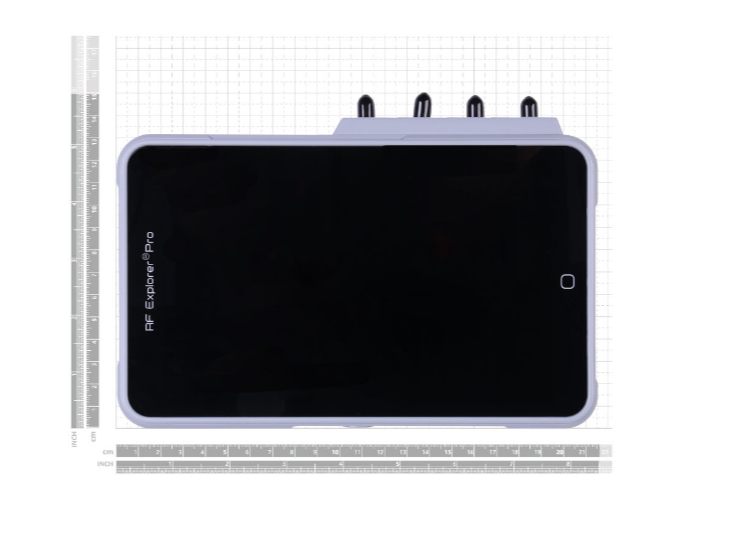

Electrical and Mechanical Specification

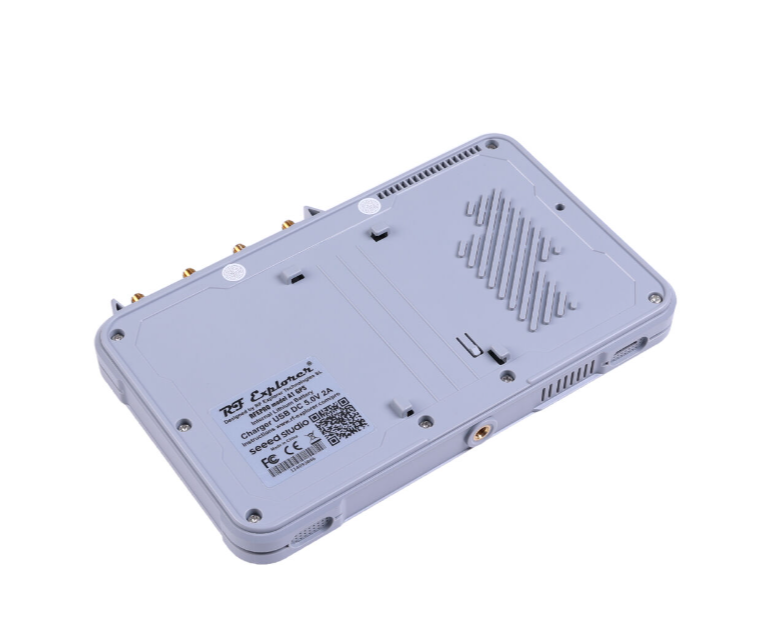

Hardware Overview
