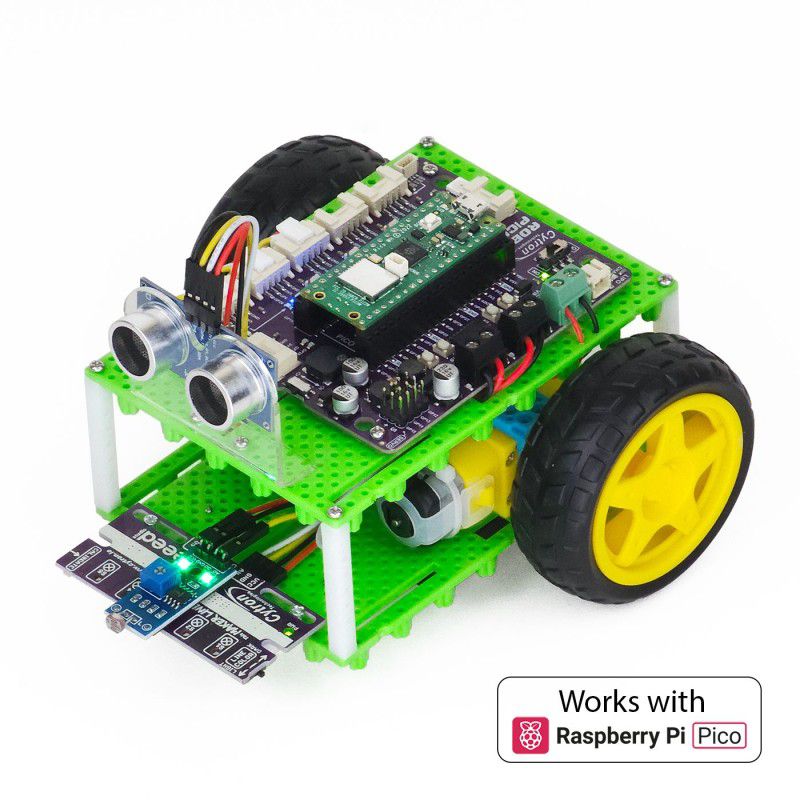

5 in 1 Robot: BocoBot

Everyone loves robots! With BocoBot, you can have fun while learning about electronics, microcontrollers, sensors, motors, and coding. What makes it even more exciting is its wireless control capability through your smartphone via WiFi, thanks to the Raspberry Pi Pico W.

Pssst, BocoBot's cute name draws inspiration from the Robo Pico expansion board (roBO piCO roBOT).

New to Raspberry Pi & Robotics?

No worries! BocoBot is powered by Robo Pico, introduced by Cytron to simplify robotics with Raspberry Pi. It includes all the essential components like a motor driver, grove connectors, RGB LED, buzzer, and push button. With the provided installation steps and example codes for 5 projects, this kit offers complete guidance. You can experiment with the code and witness how BocoBot responds firsthand.

No Soldering! No Breadboard!

We all agree that using a breadboard can sometimes be troublesome. One wrong jumper placement and the entire project could fail. That's why BocoBot utilizes Grove connectors to easily connect it with various sensors. These connectors offer simple and hassle-free connections, making them perfect for beginners.

More Customization with New Robotic Case

The new robotic case features numerous holes for screws and wires, allowing users to freely customize their robot's design. You can rearrange components and add more sensors according to your preferences. Moreover, this lightweight and durable case ensures long-lasting performance.

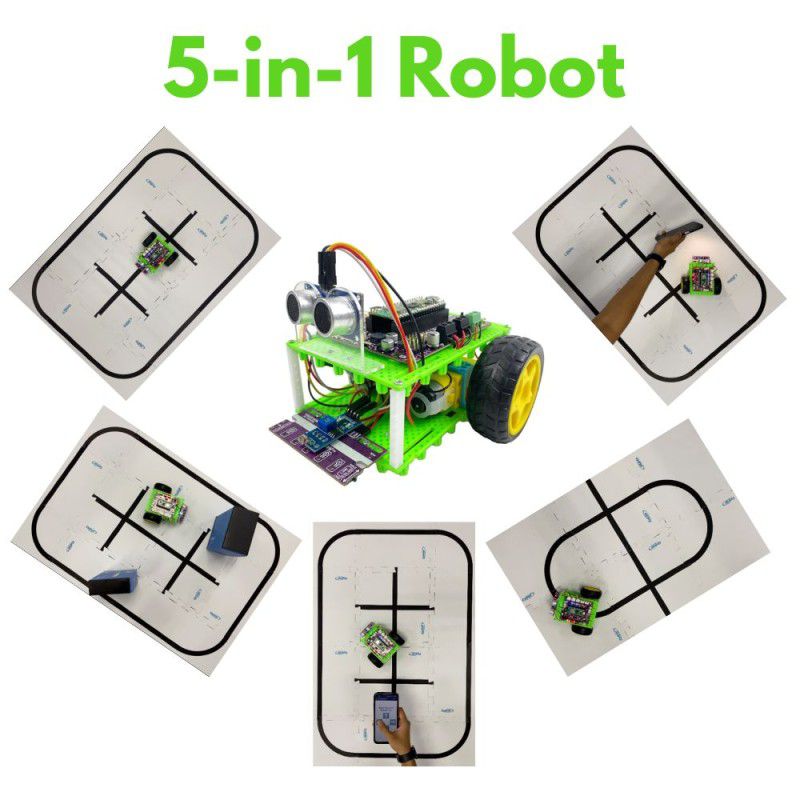

5 Projects in One Robot

Basic Movement

Obstacle Avoidance

Light Searching

Line Following

Remote Control using WiFi

Note: The reconfigurable track is NOT included in the kit.

• Based on Raspberry Pi Pico W and Robo Pico expansion board
• Suitable for makers, hobbyists, secondary and tertiary level of education, who want to start learning Raspberry Pi and robotics
• 5-in-1 Robot:
  • Basic Movement
  • Obstacle Avoidance
  • Light Searching
  • Line Following
  • WiFi Controlled
• Complete guidance provided, covering installation setup and example codes for each project
• Durable and lightweight plastic chassis
• Robo Pico offers additional features for implementing other custom projects

Robo Pico Specifications:

• Compatible with Raspberry Pi Pico and Raspberry Pi Pico W
• Versatile power circuit
  • Automatic power selection: USB 5V, LiPo (1-cell) or Vin (3.6-6V)
  • Built-in 1-cell LiPo/Li-Ion charger (over-charged & over-discharged protection)
  • Power on/off switch with status LED
• GPIO Breakout for Raspberry Pi Pico/Pico W
• 1 x Reset Button
• 7 x Grove Ports (flexible I/O options: digital, analog, I2C, SPI, UART)
• 1 x Maker Port (JST-SH 4-Ways Connector)
• 13 x Status indicator LEDs for GPIO pins
• 2 x RGB LED
• 2 x Programmable Button
• 1 x Piezo Buzzer with Buzzer Mute Switch
• 2 x DC Motor Terminals
  • 2 x Motor Status LEDs for each Motor Terminal
  • 2 x Motor Test Buttons for each Motor Terminal
• Mounting holes
  • 4 x 4.8mm mounting hole
  • 4 x M3 screw hole

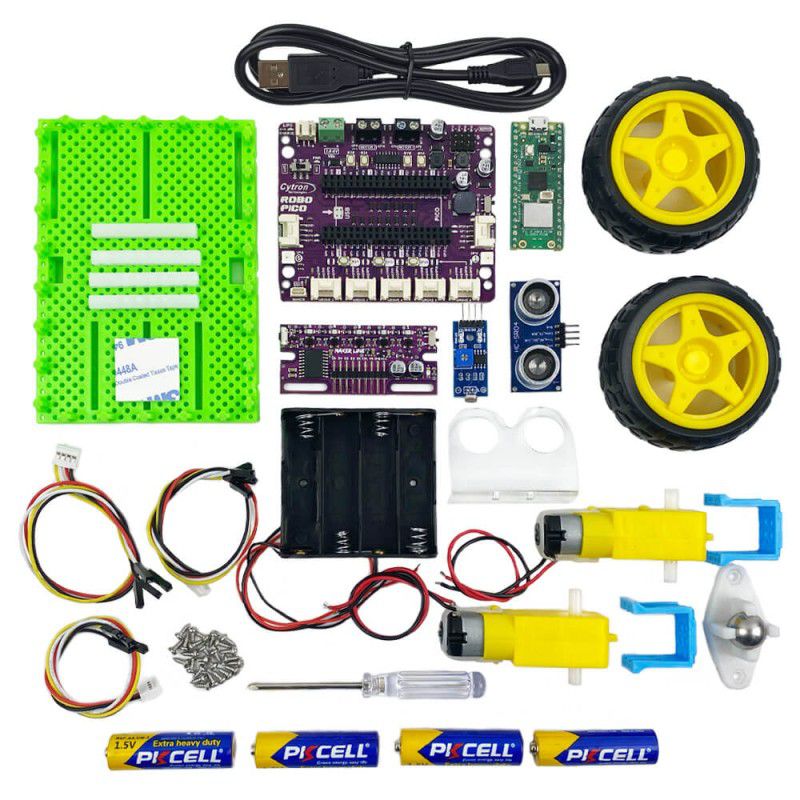

Packing List

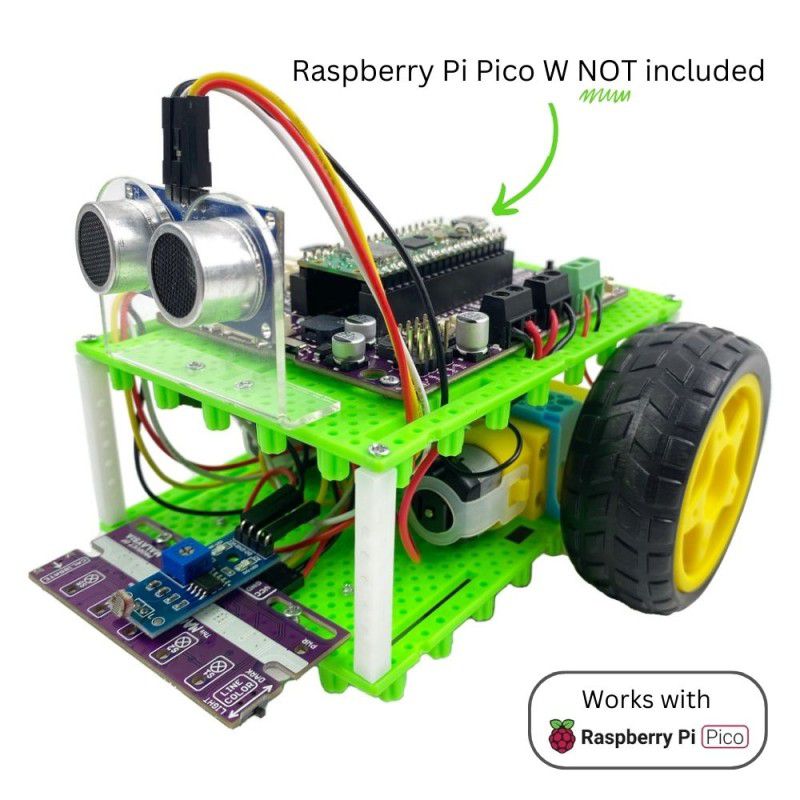

BocoBot without Raspberry Pi Pico W:

• 1 x Robo Pico
  • 3 x Grove to Female Jumper Wires
  • 1 x Screwdriver
• 1 x Set of Robot Chassis
  • 2 x Robot Building Base (GREEN)
  • 2 x Motor Bracket (BLUE)
  • 25 x M2.2x6mm Self Tapping Screw for Plastic Base
  • 3 x M2.3x8mm Self Tapping Screw for Maker Line
  • 4 x Spacer
  • 2 x TT Motor with 15cm wires
  • 2 x Wheels
  • 1 x Steel Ball Castor
• 1 x Maker Line
• 1 x Ultrasonic Sensor Module
• 1 x Bracket for Ultrasonic Sensor Module
• 1 x Light Sensor Module
• 2 x TT Motor with Wheel
• 4 x 4AA Battery
• 1 x Battery Holder
• 1 x Castor
• 1 x USB Cable
• 1 x Double Sided Tape
• 1 x Line Following Track (not shown in the picture)
