- Open - source Software: Offer full source code, enabling community contributions and custom dev.
- Multi - sensor Integration: Integrate temp, light, 3 - axis accel sensors. Support GNSS, WiFi & Bluetooth for indoor/outdoor positioning.
- Easy Configuration: Via SenseCraft App, users can easily configure device params.
- Strong LoRaWAN Support: Ensure quick device network access and config.
- User - friendly Buttons: Simple button ops for power on/off, Bluetooth setup, SOS alarm, etc.
General Parameters | |

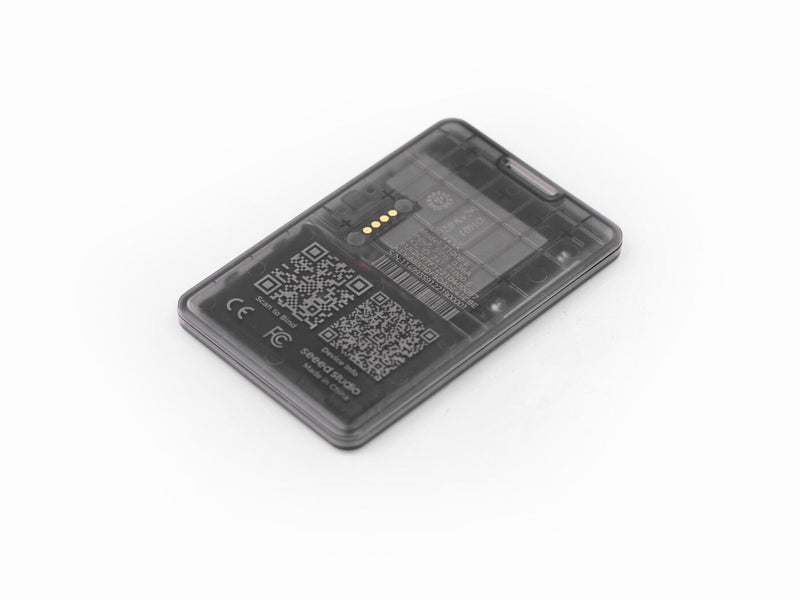

Product Model | T1000-E |
Backhaul | LoRaWAN® (v1.0.4 Class A) |
Bluetooth | Bluetooth v5.1, setting via SenseCraft App |
LoRaWAN Channel Plan | IN865/EU868/US915/AU915/AS923/ KR920/RU864 |
Temperature | Range: -20 to 60℃; Accuracy: ± 1℃; Resolution: 0.1℃ |
Light | 0 to 100% (0 is dark, 100% is brightest ) |
3-Axis Accelerometer | 3-Axis Accelerometer to detect movement |
LED and Buzzer | 1*LED and 1* buzzer to indicate status |
Button | 1*Button to operate and trigger events(SOS) |
Antenna | Internal (GNSS/LoRa/Wi-Fi/BLE) |
Communication Distance | 2 to 5km (depending on gateway antenna, installation, and environments) |
IP Rating | IP65 |
Dimensions | 85 x 55 x 6.5 mm |
Device Weight | 32g |
Operating Temperature | -20℃ to +60℃ |
Operating Humidity | 5% - 95% (No condensation) |
Certification | CE /FCC /RoHS |
Location | |
GNSS Constellation | GPS/GLONASS/Galileo/ BeiDou/QZSS |
GNSS Sensitivity | -145dBm cold start / -160 dBm Tracking |
GNSS Location Accuracy | ~1m CEP, GPS, -130dBm |
Wi-Fi Positioning | Passive scanning, uploads the scanned 3~5 MAC addresses |
Bluetooth Positioning | uploads the scanned 3 best signal MAC addresses of Beacon |
Battery | |
Battey Capacity | Rechargeable lithium battery, 700mAh |
*Battery Life Estimates | 3 months on a single charge(uplink every 1 hour, only GNSS data) |
Battery Life Monitoring | Periodic uplink battery level |
Charge Cable (Adapter not included) | USB magnetic charging cable, 1 meter |
Power Input Voltage | 4.7 to 5.5V DC |
Charging Temperature | 0 to +45℃ |
- Asset Tracking: Monitor asset status and location remotely. Transmit location data to the cloud via LoRaWAN. Users can view real - time position and trajectory on mobile or PC management platforms.
- Environmental Monitoring: Leverage built - in thermal, photosensitive sensors and 3 - axis accelerometer. Collect and upload environmental data in real time via LoRaWAN for remote parameter monitoring.
- Logistics Management: Install on vehicles or packages. Track cargo transport status (routes, stops, on - time arrival) in real time, aiding logistics firms in scheduling and management.
Tracker T1000-E | x1 |
USB Cable (Adapter not included) | x1 |
| HSCODE | 9031809090 |
| USHSCODE | 9026104000 |
| UPC | |
| EUHSCODE | 9013101000 |
| COO | CHINA |
