- Built-in AI Image Processing: Features Sony’s IMX500 sensor with integrated AI image analysis, eliminating the need for external processing or memory.
- Reduced Latency: On-camera image processing minimizes data transfer time, achieving lower latency.
- PoE Connection: Features Ethernet PoE for easy and flexible system integration, ideal for various applications including retail, smart buildings, manufacturing, logistics, and industrial automation.
- Energy Efficient: Lowers power consumption, offering a more cost-effective solution.
- Easy Integration: Lightweight and compact design with a built-in lens and Ethernet PoE connection simplifies system integration, suitable for a wide range of applications.
Manufacturer | Rayprus Technologies Limited |
Model Number | CSV26 (China Version) Camera |
Sensor | Sony IMX500 |
Focal length | 4.35mm |
Focus Type | Fixed Focus (Focused at 2m*) *performance varies depending on the application |
Field of View (D x H x V) | 85.5° x 71.6° x 56.8° |
Aperture | F3.0 |
Distortion | Optical distortion : < - 1.55% TV Distortion : < - 0.62% |
MCU | ESP32-WROVER-E |
OS | RTOS |
Intermittent | Not Supported |
Network | Ethernet 100Base-T,RJ45 |
Power Supply | Power over Ethernet (IEEE 802.3af) |
Power Consumption | Typ.1.5W Max. 3W |

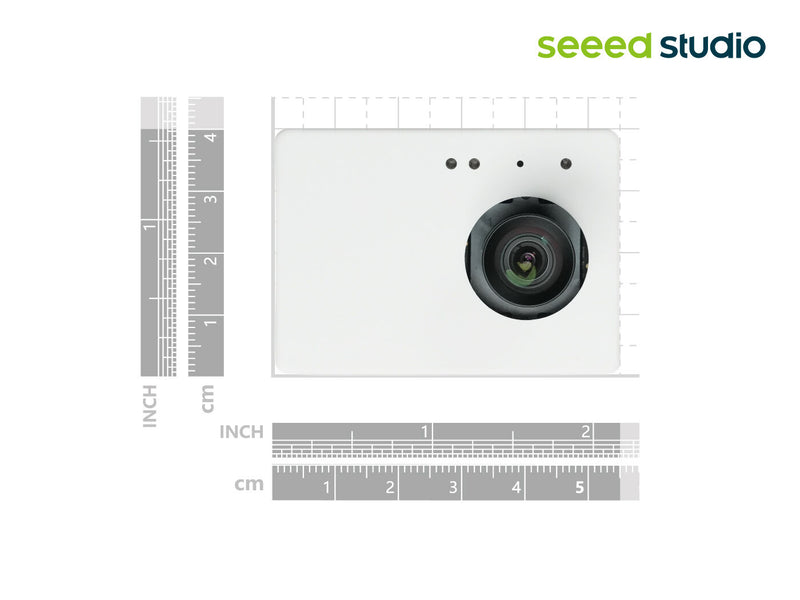

Dimensions (mm): | 55mm x 40mm x 35mm (excludes lens protrusion) |
Weight (g) | 48g |
Indoor/Outdoor | Indoor |
Operating Temperature (°C) | -10 to +40 ambient |
Storage Temperature (°C) | -30 to +60 |
Humidity | Operating:20% - 80% relative non-condensing |
- Manufacturing and Automation: Facilitates precise quality control and process automation with on-camera image processing, reducing latency and increasing efficiency.
- Robotics: Enhances robotic vision systems with built-in AI capabilities, enabling better navigation, object recognition, and decision-making in real-time.
CSV26 (China Version) Camera | x1 |
| HSCODE | 8525891900 |
| USHSCODE | 8525805050 |
| UPC | |
| EUHSCODE | 8517600000 |
| COO | CHINA |
