Square RGB TTL TFT Display - 3.4" No Touchscreen

Price:
Sale price A$75.31   Inc. GST
SKU:
ADA5825
18 units Ships in 7 to 10 days

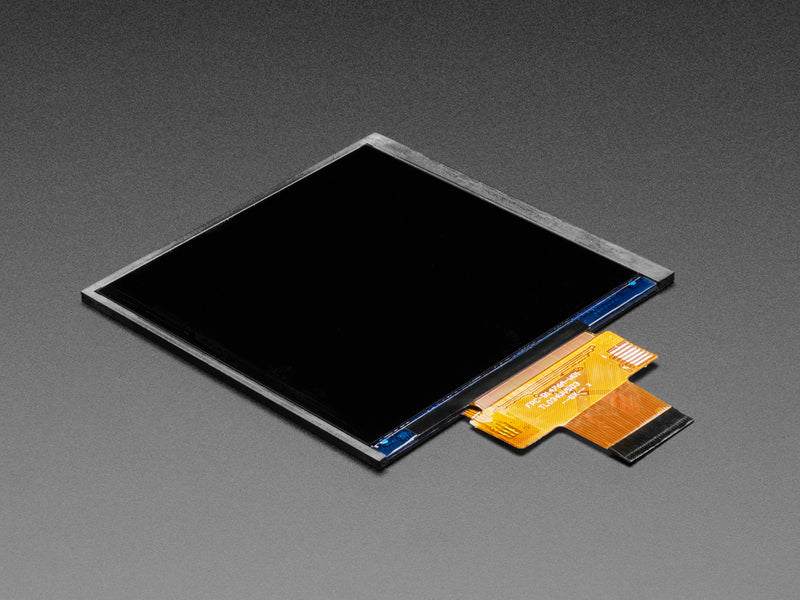

This square TFT display has 480x480 16-bit RGB pixels, making it perfect for experienced users. It also has IPS technology, providing excellent color accuracy up to 80 degrees off-axis in any direction. With a 3.4" size, this display can fit into almost any project.

This version does not have a touchscreen.

The ST7701S driver powers this TFT display, using both TTL RGB dot clock and SPI data. Configuration can only be done via SPI; drawing pixels is not an option. And, in contrast to the standard 800x480 (4.3", 5" or 7") or 480x272 (4.3") displays, this display has a 40-pin connector with a unique pinout. It's a special display, for sure.

To make stuff light up you'll need a chip that can perform TTL RGB TFT driving, which means a powerful microcontroller such as the ESP32-S3 with octal PSRAM or a computer like a Raspberry Pi (with either direct-DPI connection or an intermediary chip like the ICN6211). Either way, it's not something you can wire up to your Feather or Arduino.

This is just the display module! No PCB is included.

You cannot use these with an everyday microcontroller unless it specifically has support for RGB-666 displays so please do not purchase unless you know for sure that it can plug into a driver board with the correct pinout as well. Check out the Adafruit Qualia ESP32-S3 for TTL RGB-666 Display!



Technical Details



Learn

Use the new Qualia ESP32-S3 to add a higher resolution Dot Clock RGB666 Display to your next project
