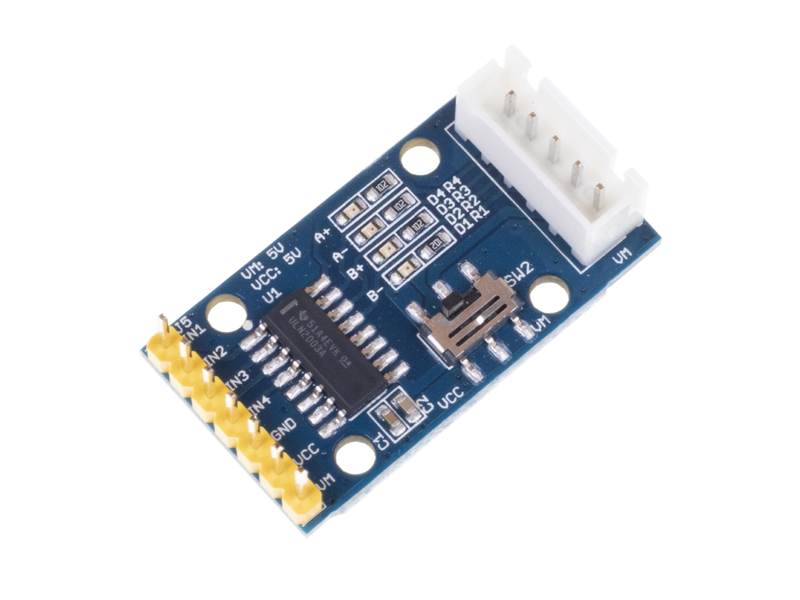

Description
You have a nice stepper motor but couldn't find any suited trigger to launch it? Here we are, our pretty, tiny and high-cost performance motor driver is on the stage waiting for you! This version of the Stepper Motor Driver V1.0 is one of the most classic ones of the whole series and this standard device has proven ubiquity and versatility across a wide range of applications, including solenoids, relays, lamps, small motors, LEDs and etc. What's more, it can operate over a wide temperature range (about –40°C to 105°C) wherever you are in Sahara desert or in the Antarctic. It sounds absolutely great, isn't it?
Feature
- ULN200x, ULQ200x High-Voltage, High-Current Darlington Transistor Arrays
- Launch from LEDs to desk printers
- Compact size for easy deployment
- Work under the condition of a long-range temperature
Applications
- Desktop printers
- Plotters
- 3d printers
- CNC milling machines
- Motors

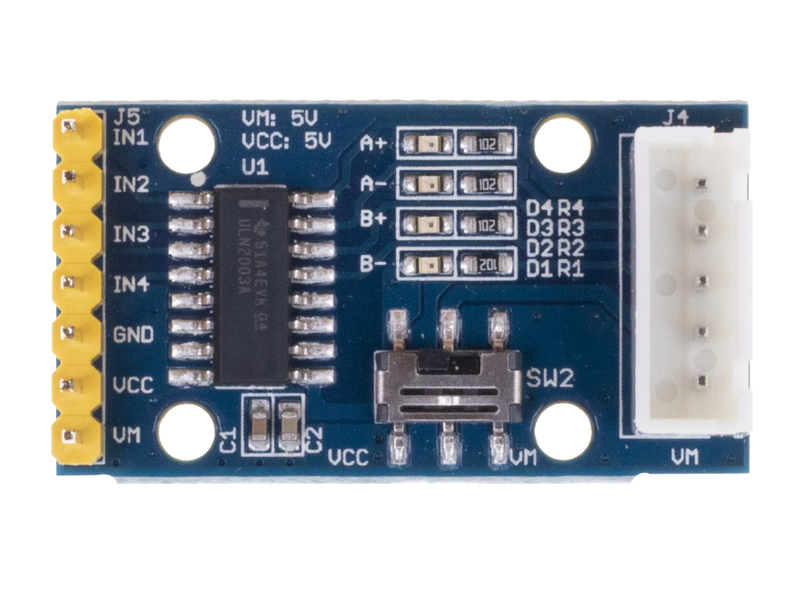

Pin Out
Note
A Gear Stepper Motor is taken as an example for the following steps of installation.
Technical details

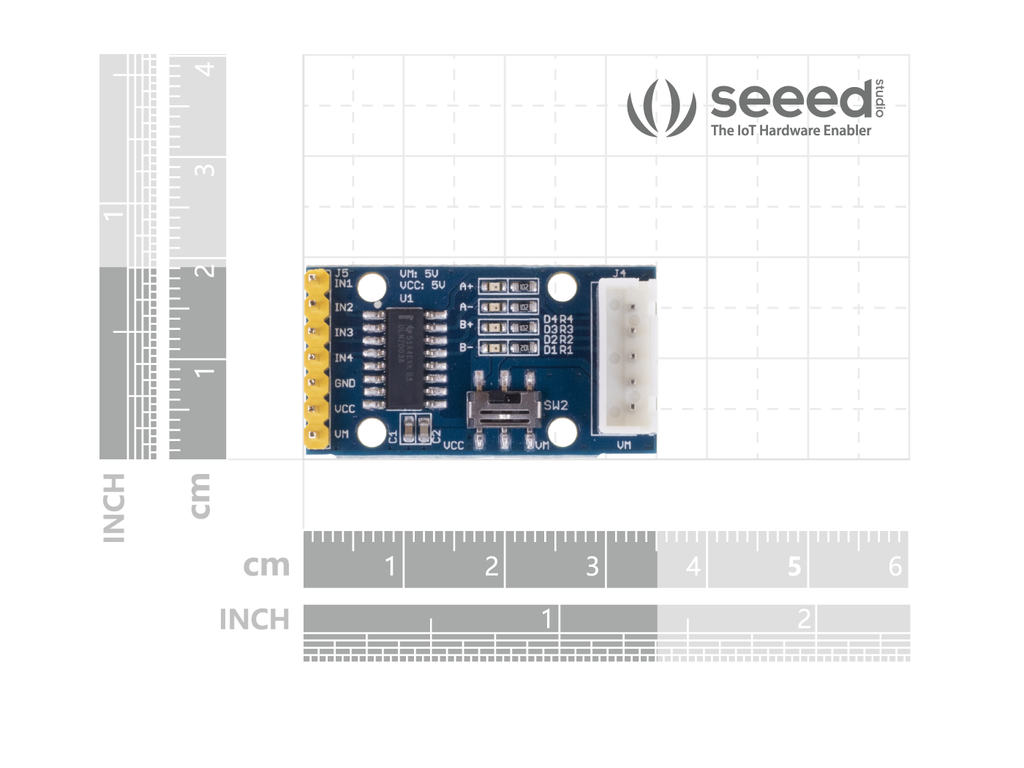

| Dimensions | 35mm x 20mm x 12mm |
|---|---|
| Battery | Excluded |
| Motor | Excluded |
Part list
1x Stepper Motor Driver board
Tip
We also offer a Gear Stepper Motor Driver pack with motor and Grove cable!
ECCN/HTS
| HSCODE | 8503001000 |
| USHSCODE | 8501104060 |
| UPC |
| ROHS | 1 |
