Feature
- LTC3350 Controller: Utilizes the reliable LTC3350 high current supercapacitor backup controller and system monitor for efficient energy storage and management.
- Supercapacitor Configuration: Includes four 7F supercapacitors in series for stable and long-lasting power supply during outages.
- Seamless Integration: Designed for easy integration with the reComputer R1000 series, ensuring compatibility and system protection.
- Robust Power Backup: Provides dependable backup power to prevent data loss and hardware damage during power interruptions.
- Smart Power Management: Features an integrated system monitor for real-time feedback, diagnostics, and efficient power management.
Specification
Controller | LTC3350 high current supercapacitor backup controller and system monitor |
Supercapacitors | 4 x 7F/2.7V supercapacitors in series |
charging method | Synchronous Step-Down CC/CV |
Compatibility | Designed for reComputer R1000 series |
PF0(alarm signal) | active LOW |
Hardware Overview

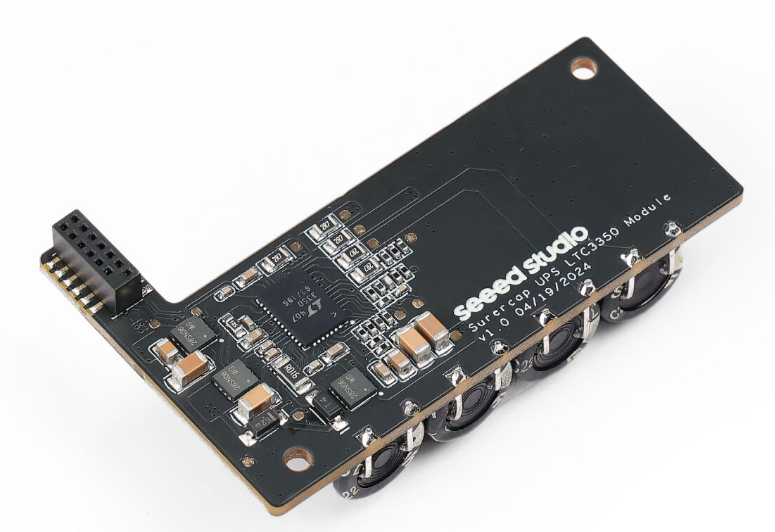

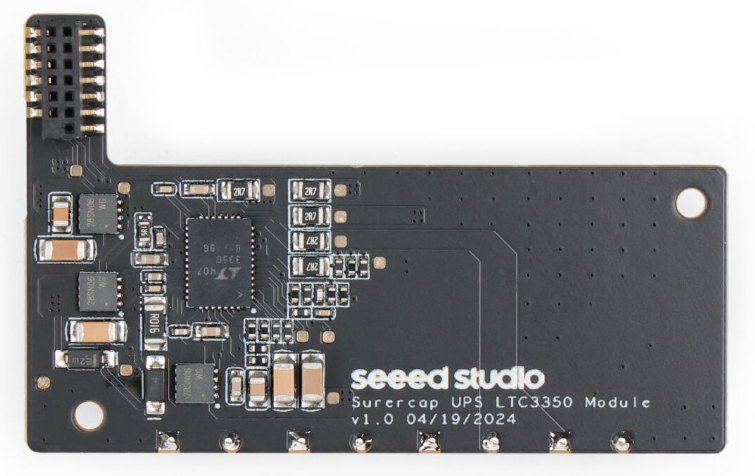

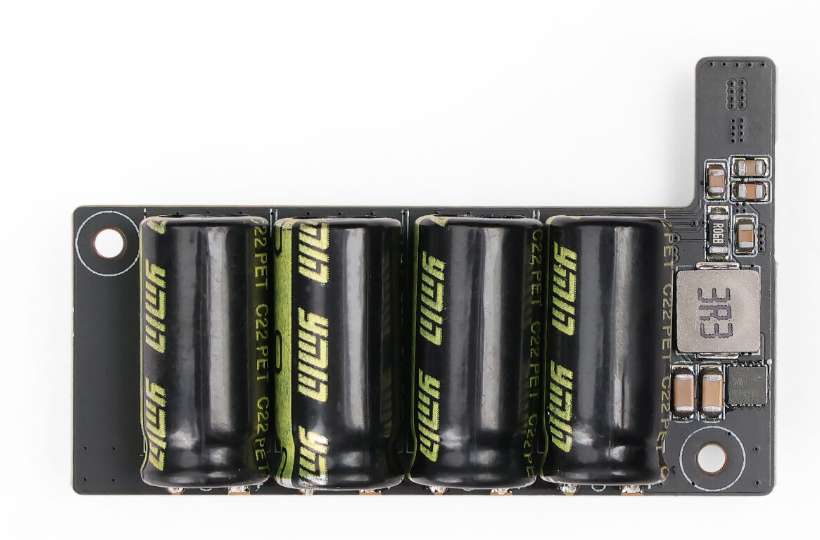

The UPS is controlled by the LTC3350 controller and features four 7F/2.7V capacitors in series. It is positioned between the DC5V supply and CM4 components. A GPIO signal alerts the CPU during a power loss, prompting the CPU to execute an urgent script before the supercapacitor energy is depleted, initiating a “$ shutdown” command. Backup duration depends on system load.
Below are some typical scenarios tested with a CM4 module featuring 4GB RAM, 32GB eMMC storage, and a Wi-Fi module.

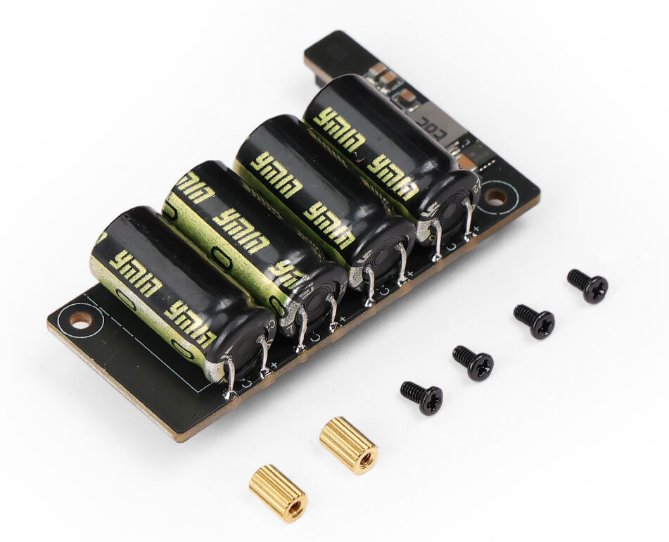

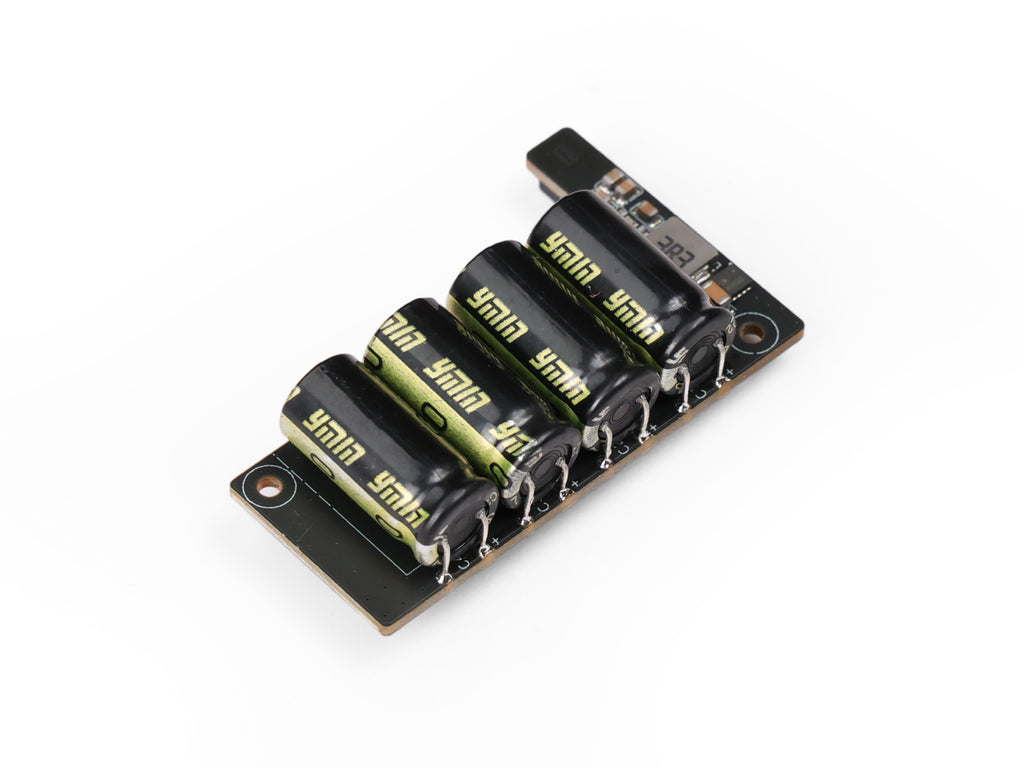

SuperCAP UPS LTC3350 Module | x1 |
ECCN/HTS
| HSCODE | 8538900000 |
| USHSCODE | 8471490000 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
