Power
There is an on-board voltage regulator for higher voltages that protect the Braccio shield. NOTE: The protection doesn’t work for the Arduino Yun if you put the bridge between Vin and 5V on the Arm Robot Shield V1 (greater version of are called Braccio shield and has a power switch on the top of the shield)

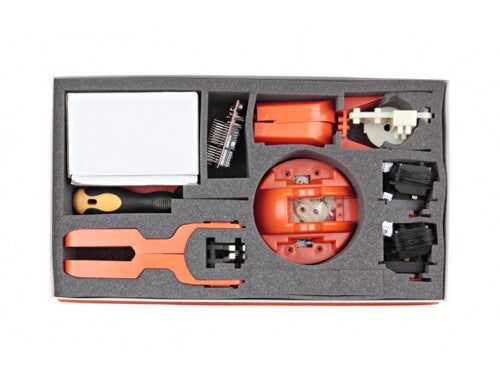

Physical Characteristics
- Plastic Parts x 21
- Screws x 63
- Flat Washer x 16
- Hexagon Nut x 7
- Springs x 2
- Servo Motors: 2 x SR 311, 4 x SR 431
- Arduino compatible Shield x 1
- Power Supply 5V, 5A x 1
- Phillips Screwdriver x 1
- Spiral Cable Protection Wrap x 1

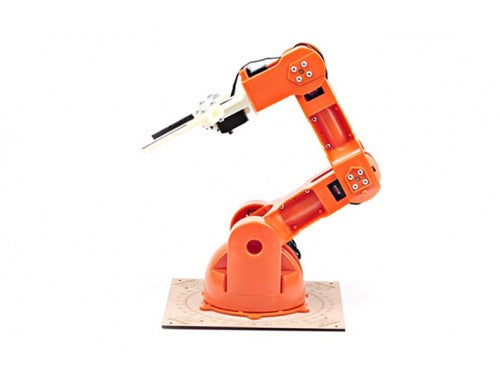

Fully assembled Braccio Kit:
| Weight | 792 g |
| Maximum operating distance range | 80 cm |
| Maximum Height | 52 cm |
| Base Width | 14 cm |
| Gripper Width | 90 mm |
| Cable length | 40 cm |
| Load Capacity | Maximum weight at 32 cm operating distance: 150 g |
| Maximum weight at the minimal Braccio configuration: 400g |
Servo Technical Specification
| SpringRC SR431 - Dual Output Servo | |
| Control Signal | PWM Analog |
| Torque | @ 4.8V: 169.5 oz-in (12.2 kg-cm) @ 6.0V: 201.4 oz-in (14.5 kg-cm) |
| Weight | 2.19 oz (62.0 g) |
| Dimentions | 1.65×0.81×1.56 in (42.0×20.5×39.5 mm) |
| Speed | @ 4.8V: 0.20 sec/60° @ 6.0V: 0.18 sec/60° |
| Rotation Support | Dual Bearings |
| Gear Material | Metal |
| Rotation Range | 180° |
| Connector Type | J (aka Futaba) |
| SpringRC SR311 | |
| Control Signal | PWM Analog |
| Torque | @ 4.8V: 43.13 oz-in (3.1 kg-cm) @ 6.0V: 52.86 oz-in (3.8 kg-cm) |
| Weight | 0.95 oz (27.0 g) |
| Dimentions | 1.23×0.65×1.13 in (31.3×16.5×28.6 mm) |
| Speed | @ 4.8V: 0.14 sec/60° @ 6.0V: 0.12 sec/60° |
| Rotation Support | Dual Bearings |
| Gear Material | Metal |
| Rotation Range | 180° |
| Connector Type | J (aka Futaba) |
