- FTDI Cable compatible.
- USB 2.0 compatible Serial Interface.
- 3.3V and 5V compatible I/Os.
- 3.3V and 5V dual power outputs.
- Reset button for BEE modules.
- Bit-Bang mode ready (8 Serial I/Os or as SPI).
- LEDs for UART and BEE operations.
- Can program Mesh Bee

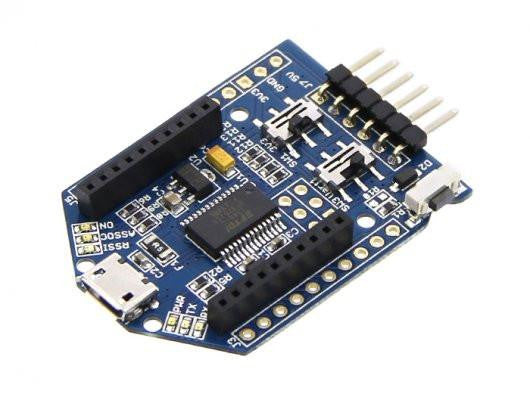

- UartBee V5 has added a button(SW3) that switch on the FT232's UART as the Tx1/Rx1 of Bee socket or the program interface of Mesh Bee module.
- Microprocessor :FT232RL
- PCB size :3.1cm x 4.1cm
- Indicators :POWER,Green LED. LEDs for Txd and Rxd
- Power supply :3.3V and 5V DC
- Interface :MicroUSB, 2.54mm pitch pin header
- Adapter socket :XBee compatible 2.0mm pitch female pin header
- Connectivity :USB
- Communication Protocol :UART, Bit Bang I/O, SPI
- ROHS :YES
Documents
