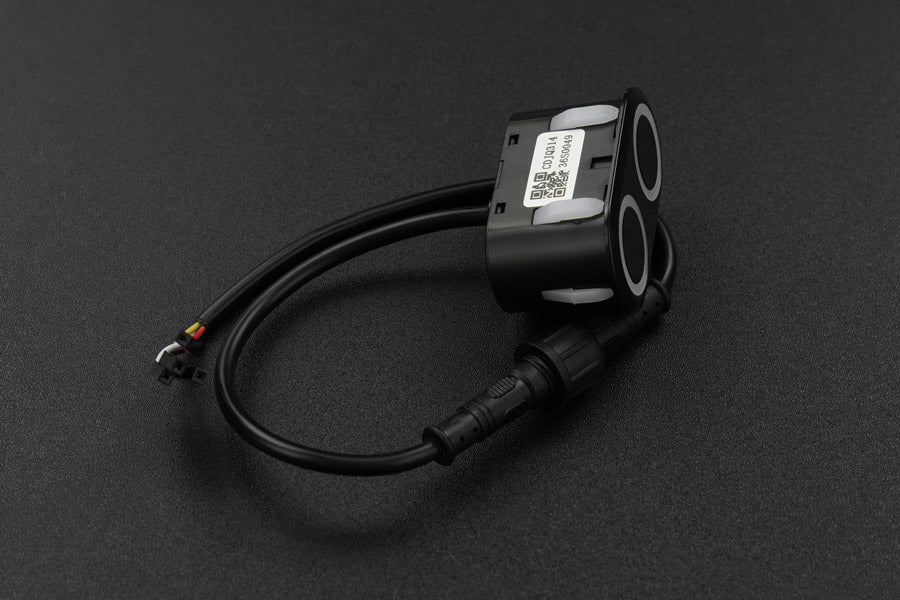

The Ultrasonic Distance Ranging Obstacle Avoidance Sensor utilizes ultrasonic technology for robot automation control applications, offering obstacle detection at a range of up to 5 meters.
This advanced sensor features reduced blind zones (accuracy: 1 + (S * 0.3%) cm), restricted angles of measure (40-65° horizontally, 60-80° vertically), lightning-fast response times (15-750ms), suppression of same-frequency interference, small size, high placement versatility, IP67 dust/waterproof rating, long life, and high dependability.
Utilizing advanced ultrasound processing technology, foreign interference is identified and filtered out, resulting in more dependable data output. This low-interference capability meets the complicated environmental requirements, providing exceptional support to robot automation control.
It features RS4585 output for sensor data, and users can use it in conjunction with Arduino TTL to RS485 expansion board. It finds wide applications in robot obstacle avoidance, automatic control, parking management systems, security gate detection, access control systems, and object proximity and presence detection.
Figure: Wiring Diagram of RS485 Ultrasonic Ranging Sensor and Arduino TTL to RS485 Expansion Board
Features:
Applications:
Specification:
Documents:
Product Includes:
