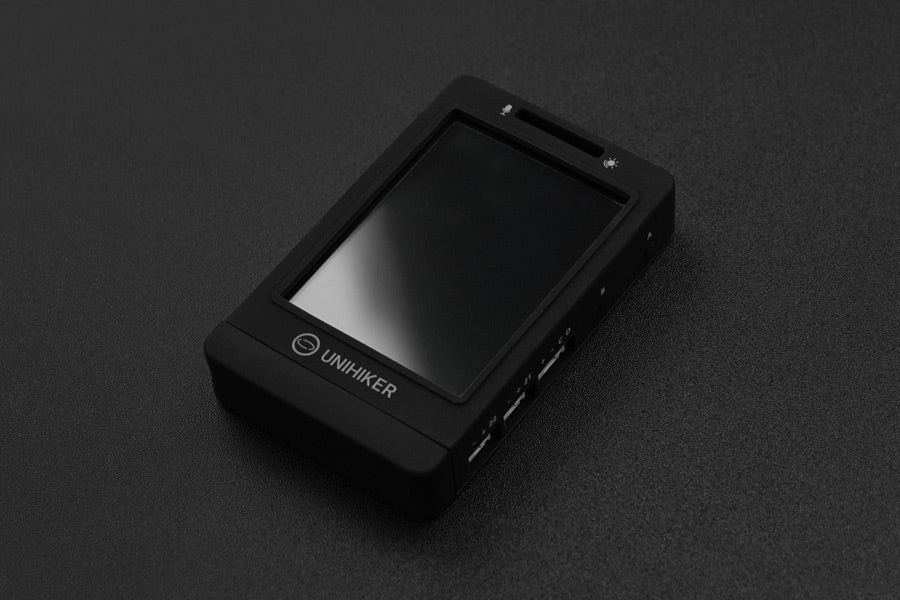

This package includes a UNIHIKER single-board computer and a Silicone Case (Black) designed to enhance durability and reduce screen breakage.
UNIHIKER is a single-board computer that brings you brand new experience. It features a 2.8-inch touchscreen, Wi-Fi and Bluetooth. It is equipped with light sensor, accelerometer, gyroscope and microphone. With built-in co-processor, it is able to communicate with various analog/digital/I2C/UART/SPI sensors and acuators.
UNIHIKER brings a whole new experience for developers with its pre-installed software, allowing for an incredibly fast and easy start. Featuring a built-in Jupyter Notebook (a browser-based programming environment), developers can program the single board computer using a smartphone or tablet.
Of course, just like other single board computers, UNIHIKER supports VS Code, VIM, and Thonny. The integrated PinPong control library allows developers to directly control UNIHIKER's built-in sensors and hundreds of connected sensors and actuators using Python.
The built-in SIoT service on UNIHIKER allows users to store data through the MQTT protocol and provides real-time web data access. The best part is that all data is stored within the device itself.
Compact, feature-rich, and user-friendly, UNIHIKER offers an innovative development experience for learning, coding, and creating. Unleash your imagination and embark on a new journey with UNIHIKER.
Built-in 2.8-inch Touch Screen
Enables you to visualize sensor data in the form of charts, graphs, and even dynamic animations.
Incredibly Fast and Easy Start
Using Python to Sense and Control
Built-in IoT service
Can be Programmed Wirelessly
UNIHIKER can be programmed from a computer, an iPad, evena phone.
It also supports Hotspot, you can play it fromanywhere.
Supports Popular Coding Software
Rich Interfaces and High Expandability
Recommended Accessories:
2x3A DC Motor Driver Carrier Board for UNIHIKER
Expand the capabilities of the UNIHIKER with this motor driver carrier board, featuring a dual DC motor drive, RGB lights, and infrared transmission/reception. It offers flexible power supply options and extensive I/O and I2C port expansion.
Applications:
AIoT
Robot
STEM
Specification:
- CPU: Quad-Core ARM Cortex-A35, up to 1.2GHz
- RAM: 512MB
- Flash: 16GB
- OS: Debian
- Wi-Fi: 2.4G
- BT: Bluetooth 4.0
- Screen: 2.8inch, 240×320, Touch Screen
- MCU: GD32VF103
- Sensor: Button, Microphone, Light Sensor, Accelerometer Sensor, Gyroscope Sensor
- Actuator: Led, Buzzer
- Port: USB Type-C, USB-A, Gravity 3pin&4pin port, Edge connector
- Power: 5V 2A for USB Type-C
- Size: 51.6mmx83mmx13mm
Projects:
1. Project: Top 4 UNIHIKER Internet of Things (IoT) Projects You Must Try
Introduction: In this article, we have meticulously handpicked a selection of IoT projects for your exploration. These projects encompass a wide range of applications, spanning across domains such as smart homes, intelligent campuses, advanced transportation, and innovative agriculture.
2. Project: AI Desktop Assistant with OpenAI GPT, Azure Speech API, and Unihiker
Introduction: I made a project to build an AI desktop assistant using OpenAI's GPT (Generative Pre-trained Transformer) technology and Azure Speech API.
To bring this project to life, I've chosen the hardware to make it with Unihiker. This device has a built-in touchscreen, Wi-Fi, Bluetooth, and sensors for light, motion, and gyroscopic measurements.
3. Project: Pet Pot - Not Your Ordinary Planter!
Introduction: Have you ever wanted a plant that communicates with you? Well, that's exactly what Pet Pot is all about! Pet Pot is not just an ordinary planter; it's a smart planter with a unique personality.
Pet Pot uses high-tech sensors to understand what's happening in its environment. It pays attention to things like temperature, humidity, soil moisture, air quality, UV index, and light intensity. And guess what? It expresses its feelings through emojis!
4. Project: Making a Desktop Geiger Counter with Unihiker --- Real-Time Nuclear Radiation Monitoring
Introduction: I had the idea to use a Unihiker to make a desktop Geiger counter. Basically, it's a device to detects the intensity of ionizing radiation. A typical Geiger counter has a sealed inflated tube and display that counts detected particles over time. I'll share how I DIY'ed the Geiger counter, to help with checking radiation levels in daily life.
5. Project: Wireless UNIHIKER, Remote Control a Face Tracking Mecanum Wheeled Platform
Introduction: UNIHIKER Board and Mecanum Wheeled platform of Elegance! Imagine that you can sit at home, without having to connect to a computer with complex wires, or lying on the ground to debug the mobile platform. You can elegantly control them remotely through the network to track facial recognition.
Documents:
- Product wiki
- Getting Started
- Dimension Diagram
- SVG
- 3D File
- FAQ
- CE Certifications
- FCC Certifications
- RoHS Certifications
- UNIHIKER Tutorial: Learn Python with Graphical Programming for Beginners
- UNIHIKER Tutorial: Making SIoT (Smart Internet of Things) Projects with Python Programming
Product Includes:
- UNIHIKER Single Board Computer x1
- Silicone Case for UNIHIKER Single Board Computer (Black) x1
- Type-C USB cable x1
- Double Sided PH2.0-3P white 20cm silicone wire x4
- Double Sided PH2.0-4P white 20cm silicone wire x2
