The Wio-E5-LE Dev Kit is a compact yet powerful development kit for the Wio-E5-LE Wireless Module (STM32WLE5JC). It offers a range of access protocols and interface types like RS485, Grove connectors, and GPIO, permitting faster testing and prototyping. This low-power board supports (G)FSK and LoRa, and is equipped with a built-in AT firmware for efficient building of prototypes and applications. Additionally, it is optimized for LoRaWAN® protocols and multiple frequency plans, perfect for applications that require a long-range, low-power solution.
Note
If you have a large quantity request or need any further information on Seeed IIoT products and services, please don't hesitate to contact us directly at [email protected] or click here and we'll be happy to offer you our best discount price. We are excited to see you can scale up and expand your business with our products and services.
- High Performance: TXOP=14dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW
- Long Distance Use: 158dB link budget
- Wireless Connectivity: Embedded Long Range protocol, AT command, support global Long Range frequency plan
- Use-friendly: It features fully lead out GPIOs, rich interfaces including RS-485, Grove, and etc, as well as convenient RESET and BOOT buttons on board.
- FCC, CE Certified
Wio-E5-LE Dev Kit features ultra-long range transmission, extremely low chip power draw, and user-friendly interfaces. Designed to unlock the Wio-E5-LE module's full capabilities, it provides access to all 28 pins and abundant connectivity options including Grove connectors, RS485, and male/female pin headers. This allows connecting sensors and modules with various connectors and data protocols without wire soldering, saving development time. The kit can also be easily powered using the on-board battery holder with 2 AA batteries, enabling temporary use without an external power source. With its versatile connectivity and ease of use, the Wio-E5-LE Dev Kit enables rapid testing and prototyping.
Since Wio-E5-LE is a LoRaWAN chip with an MCU, there are three main ways to utilize the Wio-E5-LE Dev Board:
- Connect Wio-E5-LE Dev Kit to PC and control it using AT commands
There is a built-in USB to UART function on board, you could just simply connect the Wio-E5-LE Dev Kit to your PC with a USB type C cable, and use serial communication software to send AT commands and read data from the board
- Connect Wio-E5-LE Dev Kit to another mainboard via UART and control it using AT commands sent through the UART connection
For example, connect Wio-E5-LE Dev Kit to Seeed Studio XIAO and the Expansion Board via UART, and send AT commands and read data from Seeed Studio XIAO through Arduino IDE serial monitor.
- Develop user application by using SDK
Develop your own LoRa development board with MCU function by using STM32Cube Programmer, which is the SDK officially provided by STMicroelectronics. To download this SDK resource, please click here.
With all the outstanding features listed above, the Wio-E5-LE Dev Board will be a superior choice for IoT device development, testing, prototyping, and applications in long-distance, ultra-low power consumption IoT scenarios like smart agriculture, smart office, and smart industry. Additionally, the module has already been certificated, so your completed device can be certified and approved by any agency cheaply and rapidly.
If you are unfamiliar with Long Range technology, please check out this blog An introduction of LoRa® and LoRaWAN® technology in detail.
Seeed is the official ST Authorized Partner to bring you STMicroelectronics solutions from Modules to Development Boards, one-stop prototyping services with Seeed Fusion, and integration customization.
Wio-E5 Series Comparison
Note
Should you prioritize transmission distance and be less concerned about power consumption, the Wio-E5 mini Dev Board would be an ideal choice. Conversely, if minimizing power consumption is your primary objective and your operational range is relatively short, the Wio-E5-LE mini Dev Board would be a more fitting selection.
Would like to learn more about the application scenarios of Wio-E5 series module? Please check out the following real-world use cases:
- Solar-Powered Outdoor LoRaWAN Air Quality Monitor
- Low-Power Snow Depth Sensor Monitoring for IoT Smart City Based On Wio-E5 Applied in Norway
- Developed Stream Runoff Monitoring Sensors Using Wio-E5 to Measure The Temperature, Quality and Flow
- Smart City: Wio-E5-based Indoor Air Pollutant Detection Project
- Wio-E5 & ESP32 Powered WiLoBlIno
- Loko：The Tiniest GPS Tracker with Built-In Wio-E5 Module Can Track Any Wild Animals and Drones
After designing your own Long Range devices with this Wio-E5-LE module, you can get your designs verified quickly with Seeed Fusion PCB and PCBA services, which can help turn your designs into prototypes in a few days. And when the design is verified, Seeed agile manufacturing services will help you scale up the prototypes into mass production, with services from Design for Manufacturing, and procuring raw materials, to mass production and global shipment, and many services in between.
SpecificationsParameters | Specifications |
Size | Wio-E5-LE Dev Board: 85.6*54mm Package: 200*130*50mm |
Voltage - supply | 3-5V (Battery) / 5V(USB Type C) |
Voltage - output | EN 3V3 / 5V |
Power - output | Up to +20.8dBm at 3.3V |
Frequency | EU868 / US915 / AU915 / AS923 / KR920 / IN865 |
Protocol | LoRaWAN |
Sensitivity | -116.5dBm ~ -136dBm |
interfaces | USB Type C / JST2.0 / Grove*3(IIC*2/UART*1) / RS485 / SMA-K / IPEX |
modulation | LoRa, (G)FSK, (G)MSK, BPSK |
working temperature | -40℃ ~ 85℃ |
current | Wio-E5-LE module sleep current as low as 2.1uA (WOR mode) |
To facilitate your development, we have designed Wio-E5 , Grove Wio-E5, Wio-E5 mini Dev Board, Wio-E5 Dev Kit that you can choose according to your needs to speed up your project development.

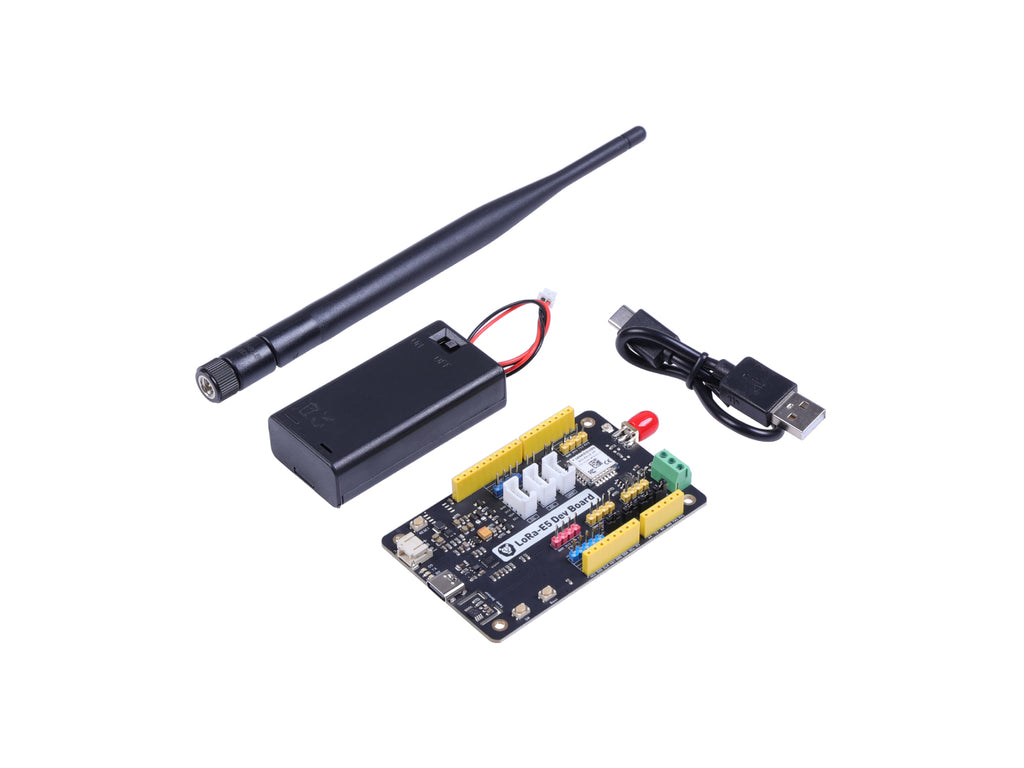

Part List
Wio-E5-LE Dev Board | ×1 |
Antenna(EU868/US915) | ×1 |
USB TypeC (20cm) | ×1 |
2*AA 3V Battery Holder | ×1 |
| HSCODE | 8543709990 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
