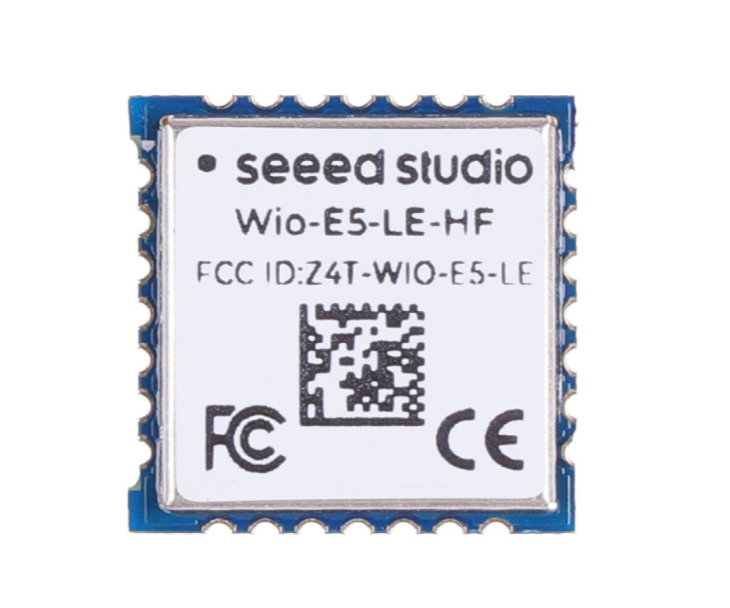

The Wio-E5-LE wireless module is embedded with the ST system-level package chip STM32WLE5JC, ARM Cortex M4 ultra-low-power MCU, and Long Range SX126X. As the newest addition to the Wio-E5 series, the Wio-E5-LE exemplifies power efficiency with an unprecedentedly low power consumption profile, marking a significant improvement over Wio-E5. The energy-saving design of this module makes it an ideal candidate for a wide range of applications that require minimized power usage.
This ultra-compact module has extremely low power consumption and is capable of supporting both (G)FSK and Long Range. Its built-in AT command firmware, makes it easy for developers to build their prototypes or applications. It can easily support LoRaWAN® protocols and a variety of frequency plans, making it an ideal solution for Long Range sensor nodes and a range of wireless communication applications. Whether you need to set up Wireless Meter Reading, IoT Nodes, or a Sensor Network, the Wio-E5 is perfectly suited for low power wide area IoT scenarios.
With this module, you can connect to different LoRaWAN server platforms like TheThingsStack, Chirpstack, and others.
Note
If you have a large quantity request or need any further information on Seeed IIoT products and services, please don't hesitate to contact us directly at [email protected] or click here and we'll be happy to offer you our best discount price. We are excited to see you can scale up and expand your business with our products and services.
- High Performance: TXOP=14dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW
- Long Distance Use: 158dB link budget
- Wireless Connectivity: Embedded Long Range protocol, AT command, support global Long Range frequency plan
- Great Flexibility: For users who want to develop software on the MCU of the module, other GPIOs of the MCU can be easily manipulated, including UART, I2C, ADC, etc. These rich GPIO interfaces are useful for users who need to expand peripherals.
- FCC, CE Certified
The Wio-E5 series is a powerful Long Range module and comes with built-in AT command firmware, making it easy for developers to build their prototypes or applications. With support for LoRaWAN® Class A/B/C protocol and a wide frequency plan, including EU868/US915/AU915/AS923/KR920/IN865, the module is highly versatile and adaptable to various low-power wide-area IoT scenarios such as smart agriculture, wireless meter reading, and smart city applications.
The Stamp Hole form factor makes it convenient to integrate into your device's mainboard without the need for additional accessories. Additionally, the module has already been certificated, so your completed device can be certified and approved by any agency cheaply and rapidly.
If you're looking for a tool for both Long Range sensor network management and Car Hacking, our newly released Wio-E5 CAN Development kit is based on the Wio-E5 module, with a built-in CAN controller MCP2515 that supports CAN FD, CAN2.0, and RS485 communication. It's a versatile and useful tool that provides an excellent user experience.
Seeed is the official ST Authorized Partner to bring you STMicroelectronics solutions from Modules to Development Boards, one-stop prototyping services with Seeed Fusion, and integration customization.
If you want to learn about Long Range and its features such as network architecture and applications, you can check out this article LoRapedia, which introduces Long Range and Long Range in detail, It explains what Long Range is, how it works, and its pros and cons.
Wio-E5 Series Comparison
Note
Should you prioritize transmission distance and be less concerned about power consumption, the Wio-E5 would be an ideal choice. Conversely, if minimizing power consumption is your primary objective and your operational range is relatively short, the Wio-E5-LE would be a more fitting selection.
Would like to learn more about the application scenarios of LoRa-E5 module? Please check out the following real-world use cases:
- Solar-Powered Outdoor LoRaWAN Air Quality Monitor
- Low-Power Snow Depth Sensor Monitoring for IoT Smart City Based On Wio-E5 Applied in Norway
- Developed Stream Runoff Monitoring Sensors Using Wio-E5 to Measure The Temperature, Quality and Flow
- Smart City: Wio-E5-based Indoor Air Pollutant Detection Project
- Wio-E5 & ESP32 Powered WiLoBlIno
Loko：The Tiniest GPS Tracker with Built-In Wio-E5 Module Can Track Any Wild Animals and Drones
After designing your own Long Range devices with this Wio-E5 module, you can get your designs verified quickly with Seeed Fusion PCB and PCBA services, which can help turn your designs into prototypes in a few days. And when the design is verified, Seeed agile manufacturing services will help you scale up the prototypes into mass production, with services from Design for Manufacturing, and procuring raw materials, to mass production and global shipment, and many services in between. Specifications
Specifications:Items | Parameter | Specifications | Unit | |||

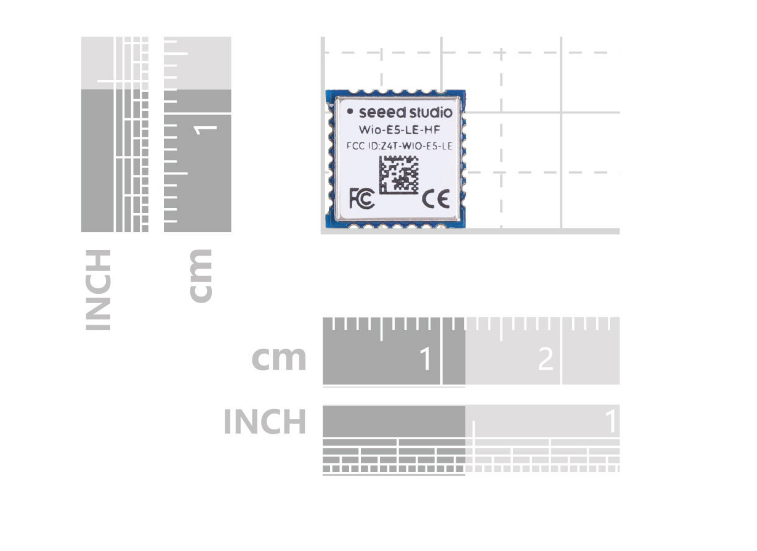

Structure | Size | 12(W) X 12(L) X 2.5(H) | mm | |||

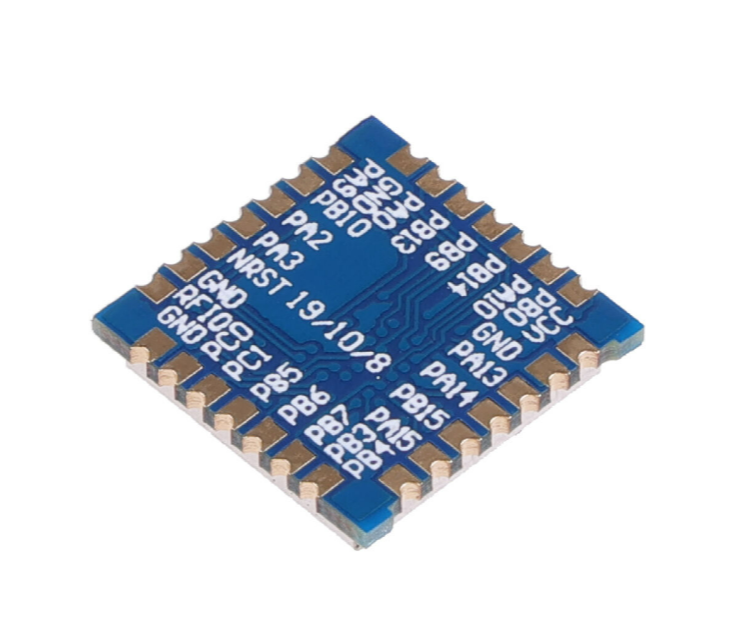

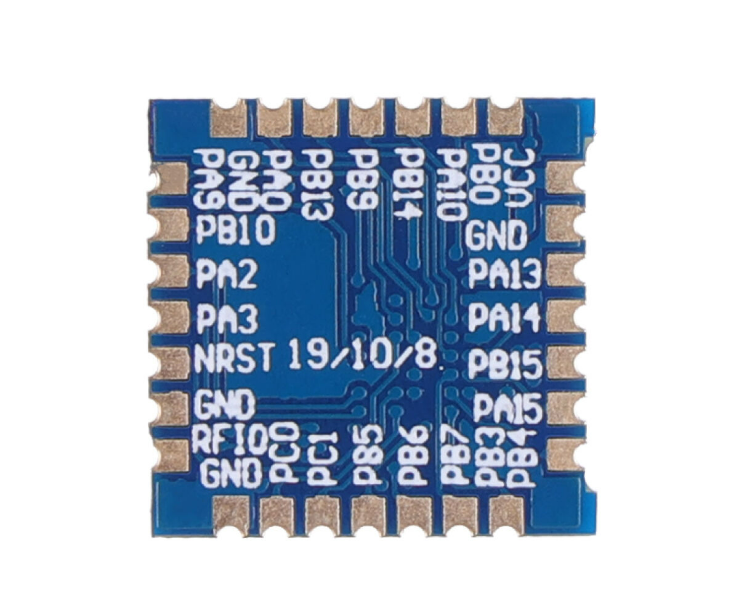

Package | 28 pins, SMT |
| ||||
Electrical | power supply | 3.3V type | V | |||
Sleep current | 2.1uA (WDT on); | uA | ||||
Operation current | 26mA @14dBm in 868MHz type | mA | ||||
26mA @14dBm in 915MHz type | ||||||
Operation current | 6.7mA @BW125kHz, 868MHz type | mA | ||||
6.7mA @BW125kHz, 915MHz type | ||||||
Output power | 14dBm max @868MHz | dBm | ||||
14dBm max @915MHz | ||||||
Sensitivity | @SF12, BW125kHz | dBm | ||||
Fr(MHz) | min | type | max | |||
868 | - | -135 | -137 | |||
915 | - | -135 | -137 | |||
Harmonics | <-36dBm below 1GHz | dBm | ||||
<-40dBm above 1GHz | dBm | |||||
Interface | RFIO | RF port |
| |||
UART | 3 group of UART, include 6 pins |
| ||||
I2C | 1 group of I2C, include 2 pins |
| ||||
ADC | 1 ADC Input, include 1pins,12-bit 1Msps |
| ||||
NRST | Manual reset pin input |
| ||||
SPI | 1 group of SPI, include 4 pins | |||||
Working Temperature | -40℃ ~ 85℃ | ℃ | ||||
To facilitate your development, we have designed Wio-E5, Grove Wio-E5, Wio-E5 mini Dev Board, Wio-E5 Dev Kit that you can choose according to your needs to speed up your project development.
With decades of ODM & OEM experience, our engineers and product experts are proficient in delivering customization services for popular open-source hardware platforms – NVIDIA® Jetson™, Raspberry Pi ®, Beagleboard ®, and more. Use the Wio-E5 series module to create industrial-grade sensors or development boards for rapid AIoT implementation.
Feature product using Wio-E5
Such as our SenseCAP S210x series products
We're dedicated to supporting you and streamlining your idea-to-product journey. We are ready to bring your product concept to the market with Seeed Studio’s industrial capabilities from design, manufacturing, testing, certification, global distribution, and marketplace. To design with the Wio-E5-LE module, please contact [email protected].
Package:We provide two packaging options for the LoRa-E5 module, differing mainly in the number of packages. Please choose the version that best aligns with your requirements.

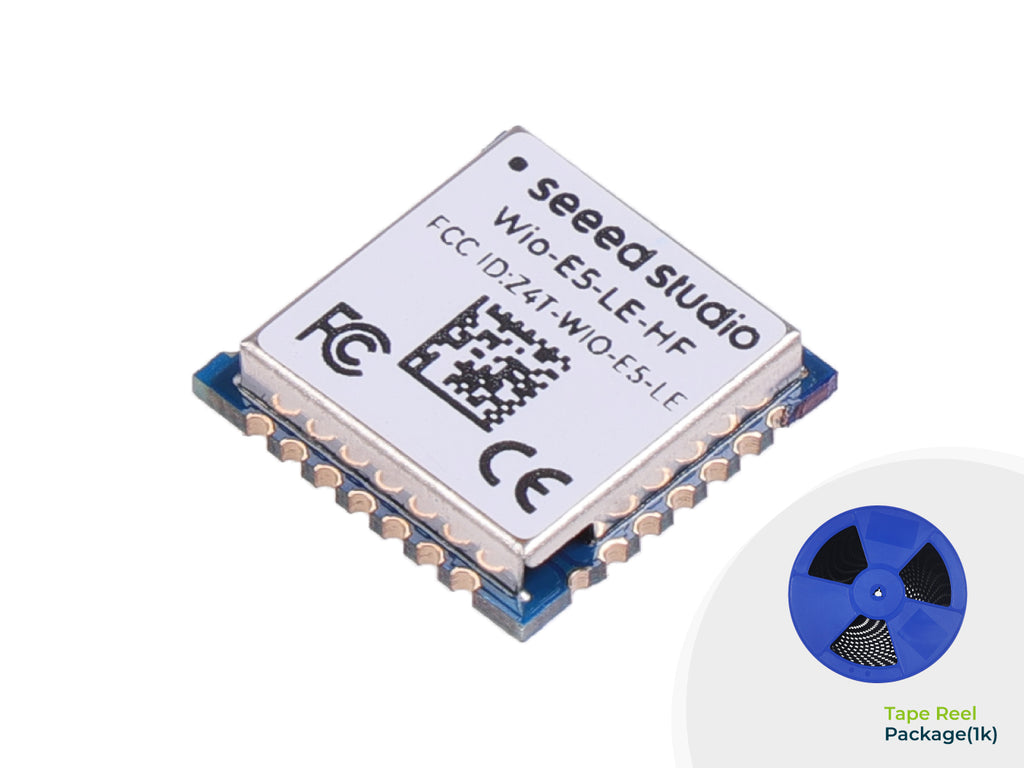

- This one is the Tape Reel version, it is recommended for automated SMT assembly, as it comes in reel form. Please note that if you select the Tape Reel version and quantities less than 1000 pieces will be sent in cut tape form and quantities of 1000 pieces or more will be sent on reels of 1000 pieces, with the remainder sent in tape form.
- Another version is the Bulk version, the modules are packaged individually, and we can deliver any quantity of modules in bulk. Please note that there is a potential moisture risk with this separate packaging option.
| HSCODE | 8517799000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8471707000 |
| COO | CHINA |
| CE | 1 |
| EU DoC | 1 |
| FCC | 1 |
| RoHS | 1 |
| UK DoC | 1 |
