Wio Link is designed to simplify your IoT development. It is an ESP8266 based open-source Wi-Fi development board to create IoT applications by virtualizing plug-n-play modules to RESTful APIs with mobile APPs.
The traditional methodology of building IoT applications consists of electronic engineering, micro-controller programming, network programming, IoT protocols handling and application development. Every step involves various hardware and software knowledge and challenges.
This time, we define a new way to create IoT applications.
No hardware programming. No breadboard. No jumper wires. No soldering.
3 steps. 5 minutes. Build your own IoT applications!
- Visual Configuration
- OTA (Over-The-Air) Firmware Updates
- Plug-n-Play Groves
- IFTTT Application
- Android & iOS APPs
- RESTful APIs
- Wi-Fi Network Protocol: 802.11b/g/n
- Wi-Fi Encryption Technologies: WEP/TKIP/AES
- Input Voltage：Battery holder: 3.4~4.2V; MICRO USB: 5V
- Output DC Current: 1000mA MAX
- Operating Voltage : 3.3V
- Charge Current: 500mA MAX
- Flash Memory: 4MByte
- Size: 55mm*48mm
- Weight: 26g
- CE/FCC/IC Certified

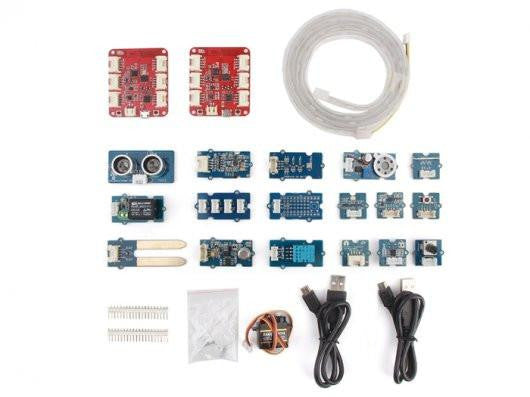

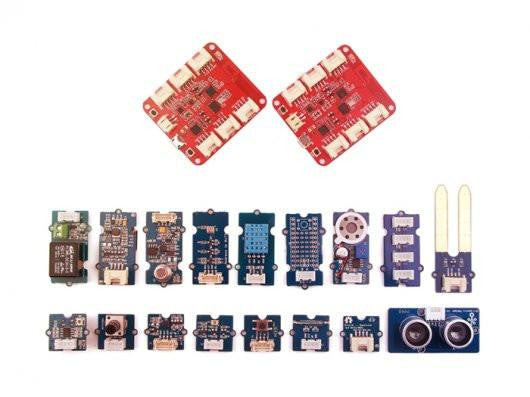

This kit includes:
This kit is same with Wio Link Deluxe Kit except this kit contain another two display modules, which can add visual interfaces for your user. You can use this kit to run some real projects or do prototyping. It contains sensors(mainly), switching-function modules, servo motors, LED strip and a speaker. The most amazing part of this kit is the Wio Link development board which can be utilized for various devices: without a bit programming skill required. All the actions you want your modules performed and the flashing-code operation to Wio Link could be completed with taps in a mobile app. And you can send instructions to your devices over internet at anywhere. So Wio Link will be a perfect utility to make things around smarter for everyone. Now let us do something real!
Full package of all general required functional modules
Grove port interfaced, more practical function and less work
Completely easy to make things around you smarter and add fun to daily life
Cost-effective
| Parts name | Quantity |
| Grove - Button | 1PCS |
| Grove - Relay | 1PCS |
| Grove - Moisture Sensor | 1PCS |
| Grove - Temp&Humi Sensor | 1PCS |
| Grove - Digital Light Sensor | 1PCS |
| Grove - Rotary Angle Sensor | 1PCS |
| Grove - Protoshield | 1PCS |
| Grove - Magnetic Switch | 1PCS |
| Grove - 3-Axis Digital Accelerometer(±1.5g) | 1PCS |
| Grove - IR Distance Interrupt | 1PCS |
| Grove - Barometer Sensor (BMP180) | 1PCS |
| Grove - Air quality sensor v1.3 | 1PCS |
| Grove - Gesture | 1PCS |
| Grove - I2C Hub | 1PCS |
| Grove - Speaker | 1PCS |
| Grove - WS2812 Waterproof LED Strip - 30 LEDs 1 meter | 1PCS |
| Micro USB Cable - 48cm | 1PCS |
| Grove - Servo | 1PCS |
| Grove - OLED Display 1.12 | 1PCS |
| Grove - Ultrasonic Ranger | 1PCS |
| Wio Link | 2PCS |
Please visit our Wiki page for more information about this product. It will be much appreciated if you can help improve the documents, add more demo codes or tutorials. For technical support, please post your questions to our Forum.You can contact us if you find any errors or have any doubts in document.
