- Optimized for XIAO: Pin headers for plug-and-play compatibility with XIAO boards, no soldering needed.
- Powerful LoRa Performance: Long-range LoRa on Semtech SX1262, supports 868/915 MHz bands.
- Compact Size and Low Power Consumption: Compact, low-power design fits space-limited devices.
- Rich Development Support: Provides detailed development documentation, example code, and tutorials to help developers get started quickly.
- Versatile Applications: Delivers high-performance LoRa communication capabilities, suitable for IoT sensor networks, and environmental monitoring.
LoRa Chip | Semtech SX1262 |
Frequency | 862-930MHz |

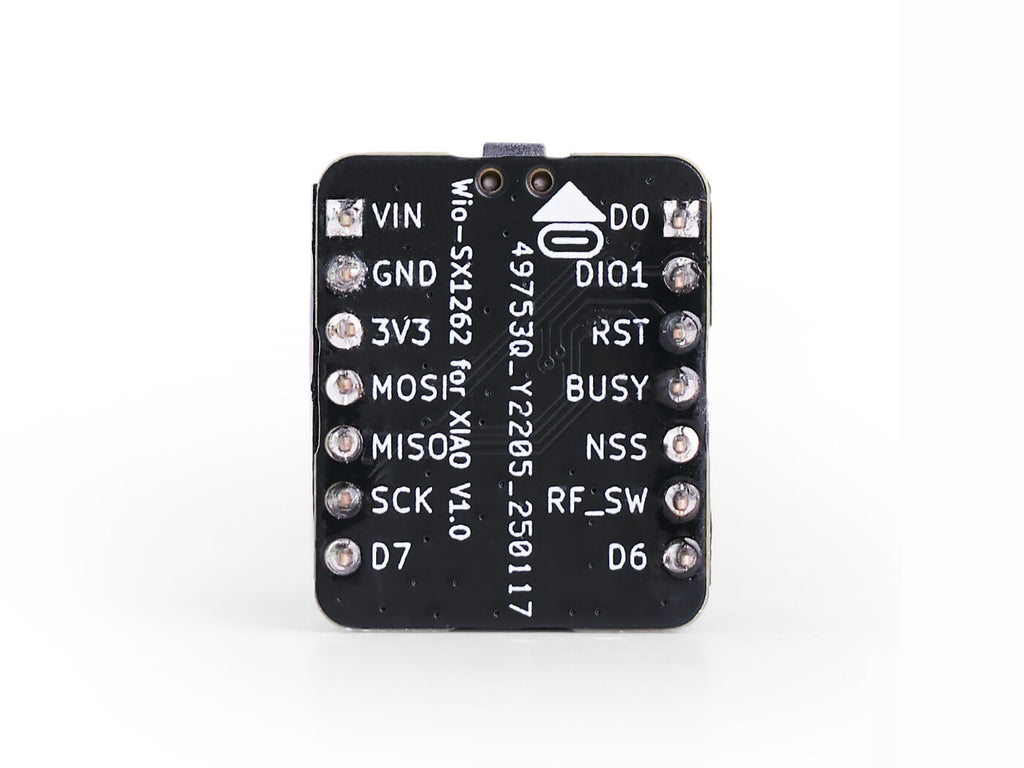

Interface | Standard XIAO Pin Headers (compatible with XIAO series) ● 1xSPI(connect to XIAO) ● 1xUser button |
Output Power | 22dBm max @862-930MHz |
Sleep Current | 1.62 μA |
Dimensions | Stacks with XIAO boards, total height 21 mm. |
- Smart Agriculture: Monitor soil moisture and temperature remotely.
- Industrial IoT: Collect and control data from industrial equipment.
- Environmental Monitoring: Track river levels and weather changes with low-power nodes.
- Education and Open-Source: Explore LoRa technology in educational projects.
Wio-SX1262 for XIAO | *1 |
| HSCODE | 8517799000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
