- High Performance: The transmit power up to 22dBm @868/930MHz; -136.73dBm sensitivity for SF12 with 125KHz BW.
- Wireless Connectivity: SPI interface, supports 862~930MHz global LoRa&LoRaWAN frequency plan.
- Small Size: 6mm X 11mm * 2.95mm @12 pins SMT.
- Low Power Consumption: 62uA sleep current .
- Onboard RF Interface: default IPEX antenna port.
- FCC ID, CE, RoHS Certified
The Wio-SX1262 and Wio-E5 are both perfect choices for designing LoRa devices. Their main differences lie in whether you have a host MCU:
- If you already have an MCU, such as an nRF52840 or ESP32, and you just need to add LoRa functionality, you can choose the Wio-SX1262.
- If you need a single MCU to complete your design, then the Wio-E5 is an excellent choice.
If you want to quickly start testing the module, you can choose the Wio-SX1262 with XIAO ESP32S3 Dev Kit, which allows for rapid prototyping based on Arduino, IDF, and others IDE, and provides firmware demos for LoRaWAN, Meshtastic, etc.
Main Chip | SX1262 |

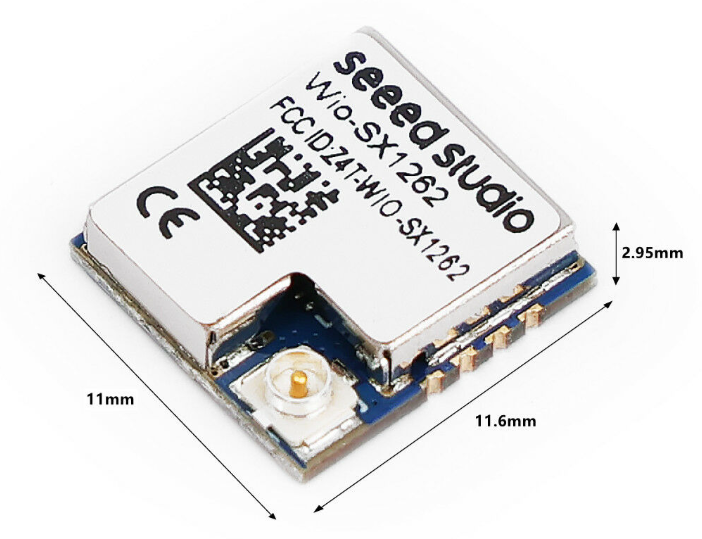

Size | 11.6(W)*11(L)*2.95(H) mm |
Package | 12 pins, SMT |
Frequency | supports 862-930MHz |
Power Supply | 3.3V @typical |
Sleep Current | 1.62 μA |
SX1262 Power Distribution Mode | DC-DC Mode |
TCXO Supply Mode | By SX1262 DIO3 |
TCXO Supply Voltage | 1.7~3.3 V |
Maximum Operation Current (Transmitter) | 125mA @22dBm in 862-930MHz typical |
Maximum Operation Current (Receiver) | 7.6mA @BW125kHz, 862-930MHz typical |
Output Power | 22dBm max @862-930MHz |
Receiver Sensitivity | -136.73dBm @SF12, BW125kHz typical |
Harmonics | ≤-45dBm above 1GHz |
Antenna | IPEX port or SMT pin, default IPEX @50-ohm impedance |

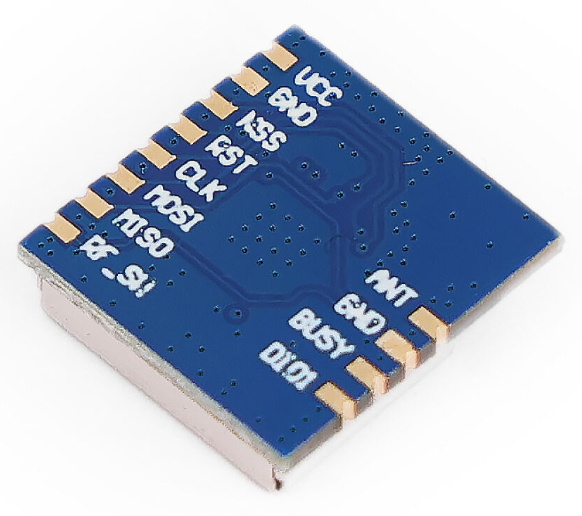

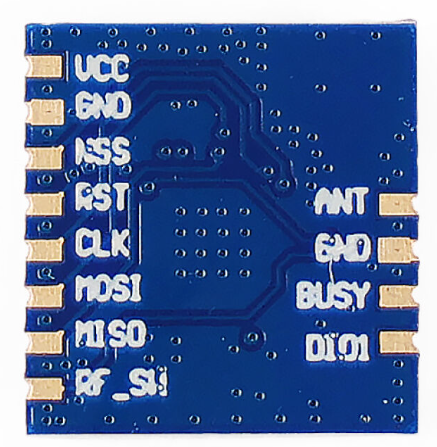

Interface | 1 x SPI DIO1: Multi-purpose digital IO Busy: Busy signal indicator DIO2: Multi-purpose digital IO, internally connected to RF switch DIO3: TCXO voltage power supply configure through software |
Working Temperature | -40°C ~ 85°C |
