Description

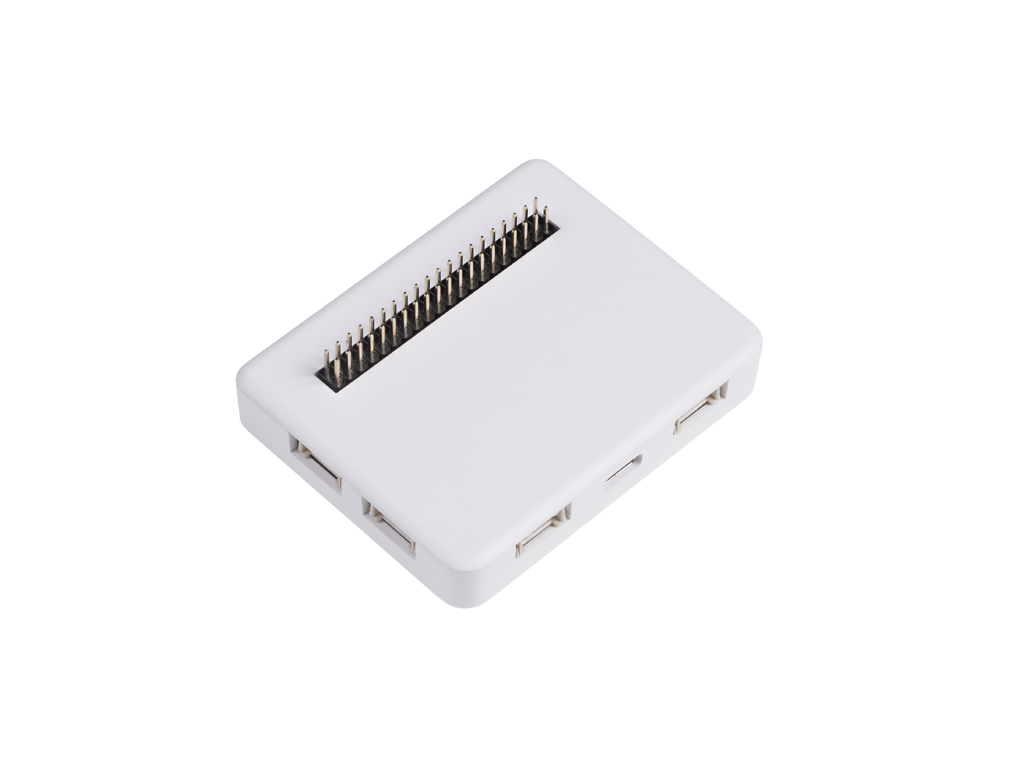

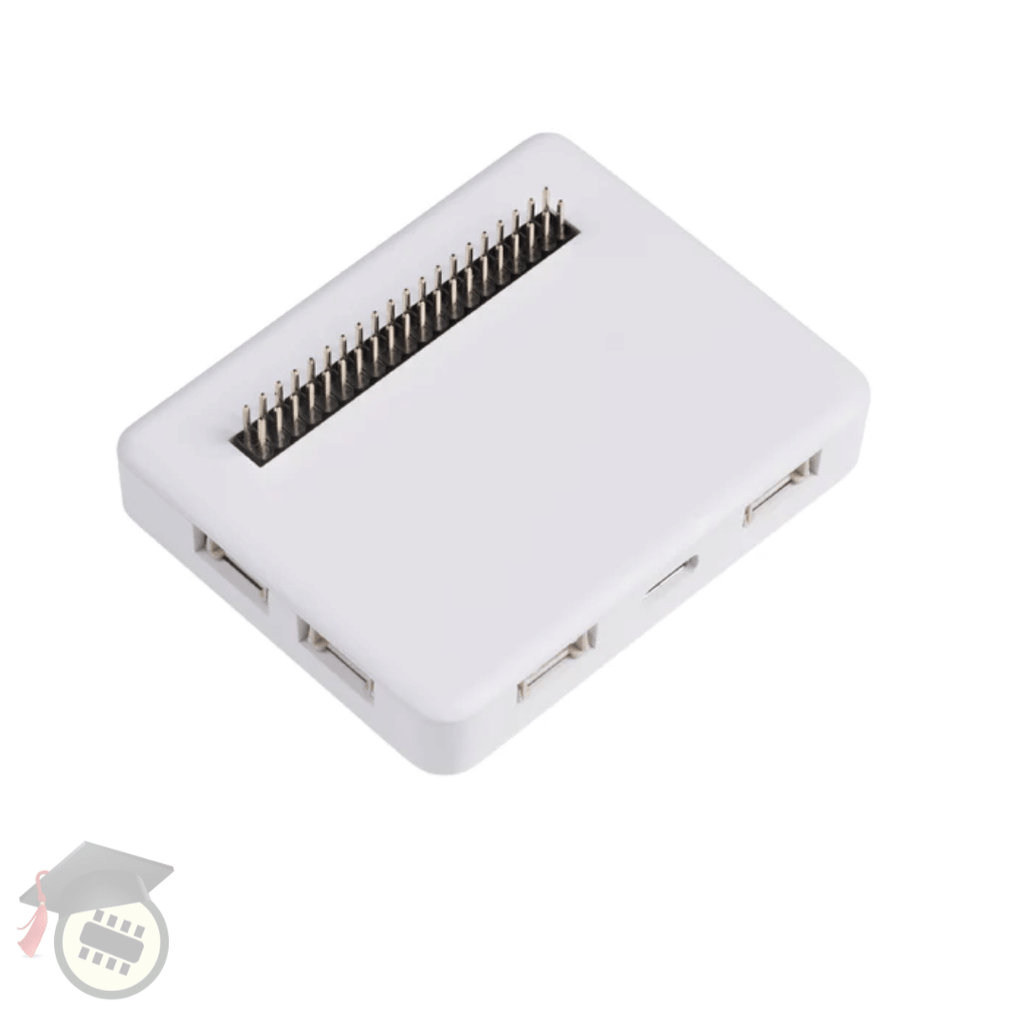

The Wio Terminal Battery Chassis is a must-have extension board for Wio-Terminal Dev Board as it provides an external power source for Wio Terminal to enhance its portability and compactness. It has a 650mAH rechargeable lithium polymer battery, battery charging/discharging status LED, 4 Grove Analog/Digital Ports, 1 Grove I2C Port, and 1 Grove UART Port, as well as the ABS enclosure for aesthetic and protection. There is also the same Raspberry Pi 40-pin compatible GPIO at the back of the Wio Terminal Battery Chassis for more add-ons!
With Wio-Terminal Dev Board + Wio Terminal Battery Chassis, you are able to build the most powerful and compact IoT projects with no ease. With the extended Grove Ports, you can enjoy the plug and play features of the Grove Ecosystem!
The new version battery board built-in BQ27441-G1A fuel gauge for LiPo batteries.
What is Grove?
No jumpers or soldering required, Grove makes it easier to connect, experiment, and simplify the prototyping process significantly. We have developed more than 300 Grove modules, covering a wide range of applications that can fulfil a variety of needs. Each one comes with clear documentation and demo code to help you get started quickly. Not only are these open hardware, but we also have open-source software.
Feature
- Built-in 650mAh Rechargeable Lithium Polymer Battery
- Battery charging/discharging status LED
- Battery On/OFF Button
- Built-in BQ27441-G1A fuel gauge for LiPo batteries
- USB Type-C Charging
- Overcurrent protection
- Hiccup mode/Hiccup Protection

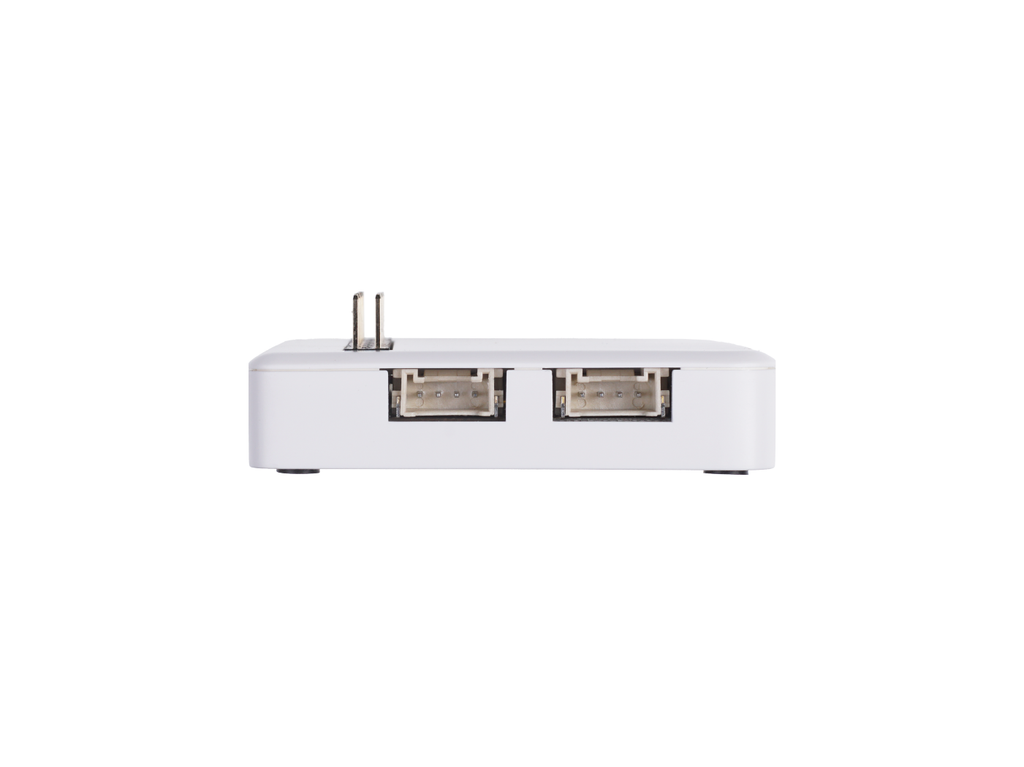

- 4 x Grove Analog/Digital Port
- 1 x Grove I2C Port
- 1 x Grove UART Port
- Magnets are hidden inside the enclosure so that it can be stuck on the Whiteboard!
Certifications
- MSDS: Material Safety Data Sheet
- UN38.3: UN38.3 Test Report
- Air/Sea Certification for Safe Transport
- 1.2m Drop Test Report
- RoHS: RoHS Test Report
Pinout Diagram
Specifications
| Item | Detail |
|---|---|
| Power Supply | 4.75V - 5.25V |
| Built-in battery | 650mAh |
| Charging current | Max: 660mA |
| battery board mode | Green LED: Light On is mean the board charing. Red LED: Light on is mean the OTG(battery discharge) enable. Yellow LED: Light on is mean the male interface output/input 5V. |
| GPIO output | Max voltage: 5.15V Max current: 380mA |
| Trickle charge current | 30mA |
| Grove Interface | Grove Analog/Digital * 4, Grove I2C * 1, Grove UART * 1 |
Precautions
- If the battery is removed while the board is in charge mode, the board will switch to failure mode and the green light blink at a frequency of 1Hz.
- When the battery board is not in use, please press the button to enter sleep mode and all the LED will off.
Part List
- Wio Terminal Battery Chassis
ECCN/HTS
| HSCODE | 8471800000 |
| UPC |
