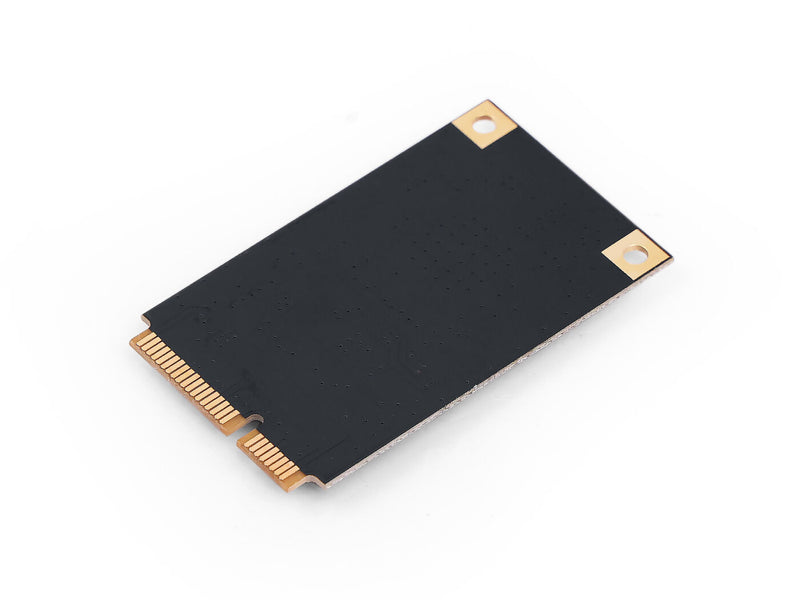

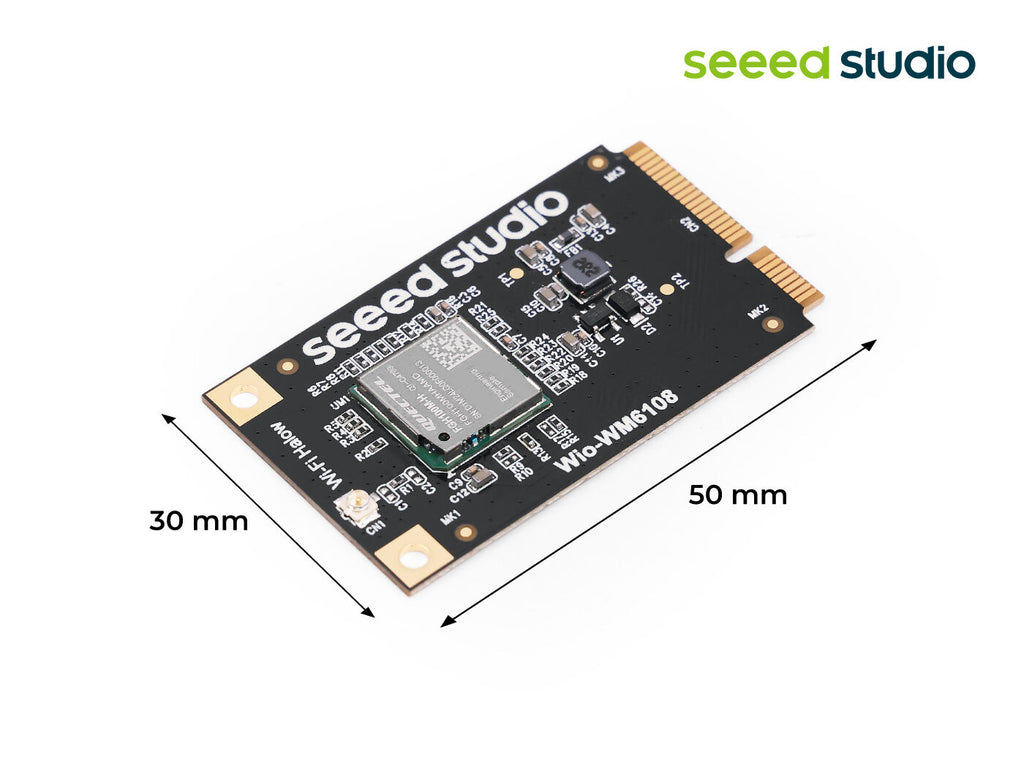

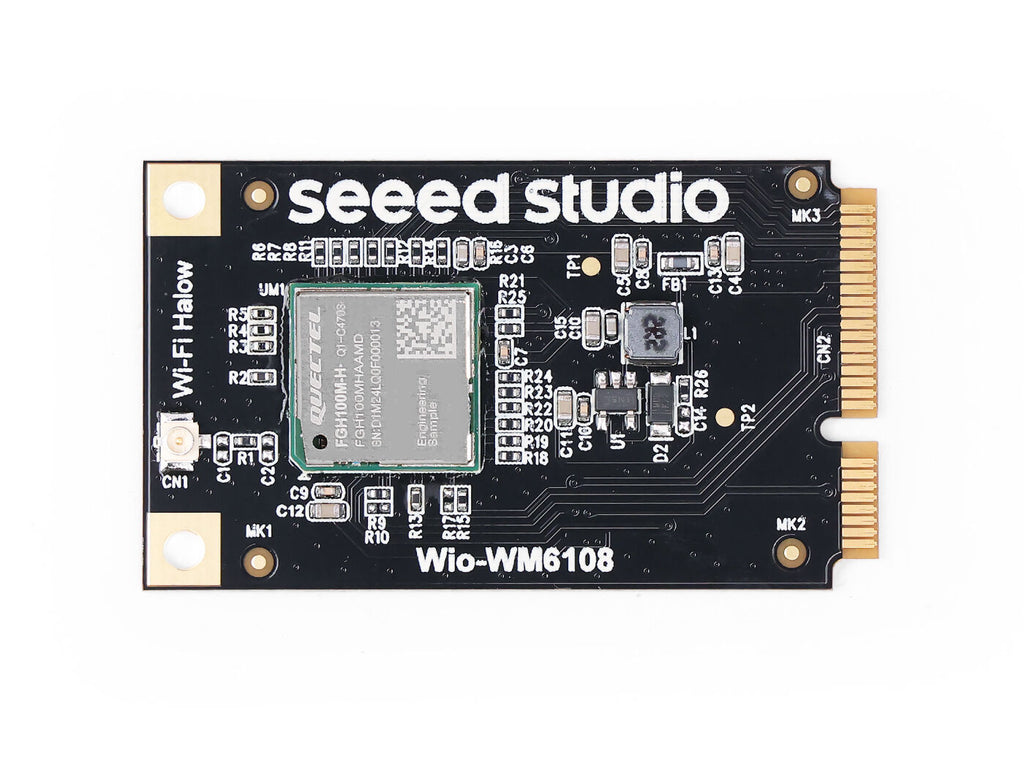

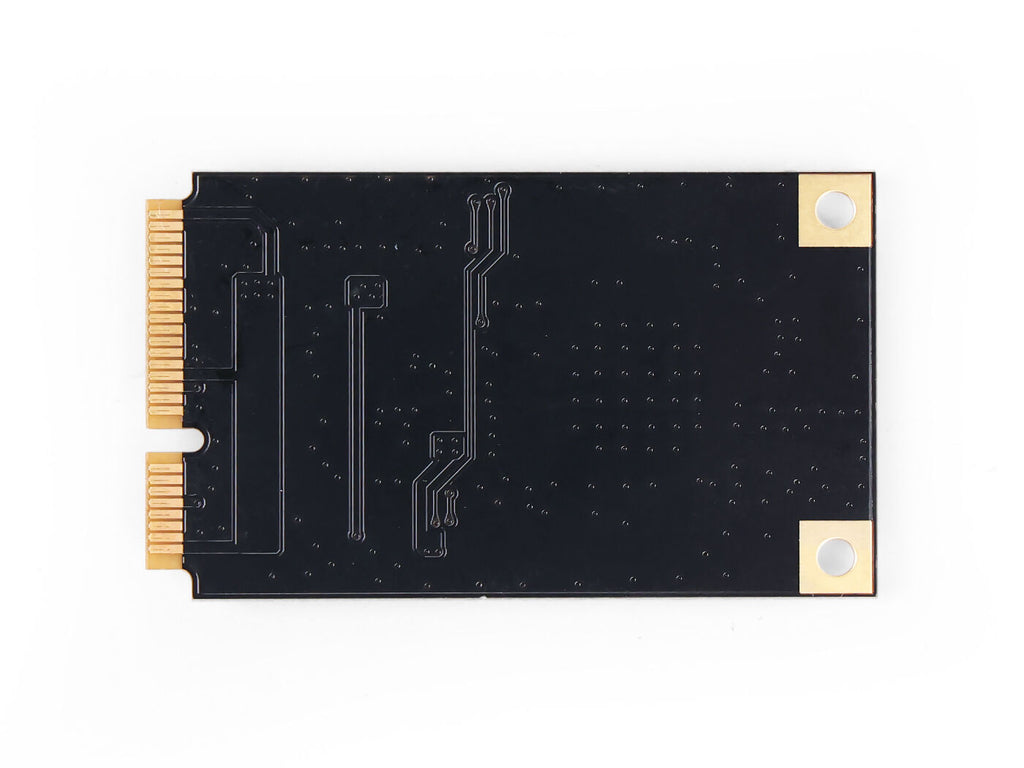

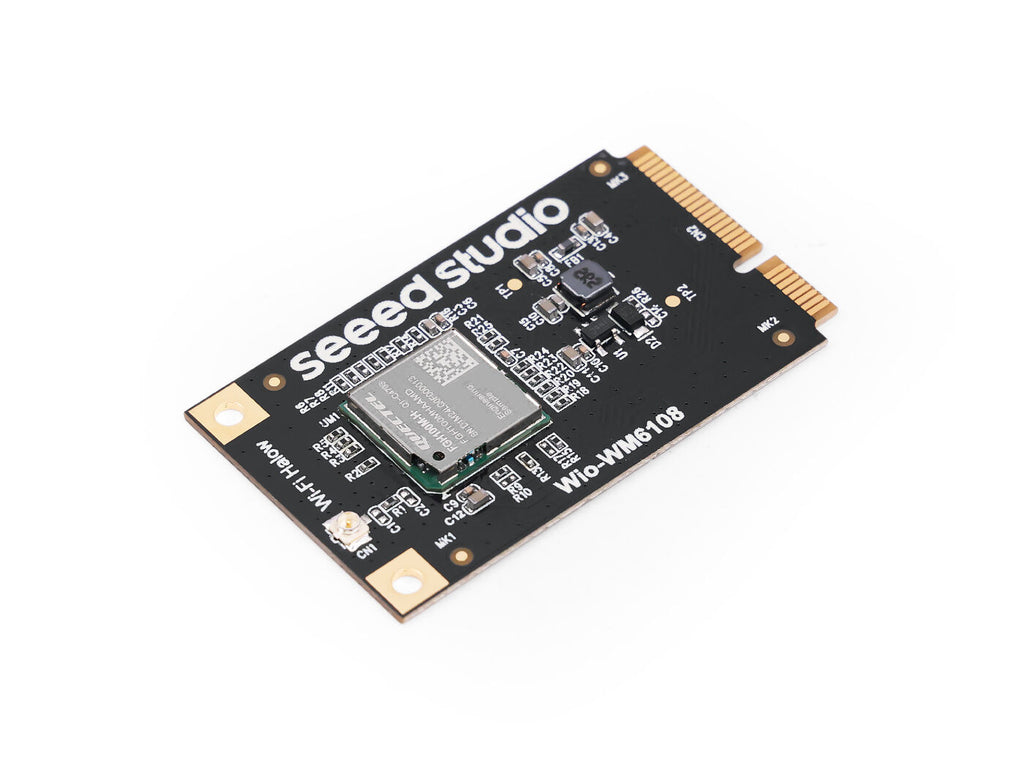

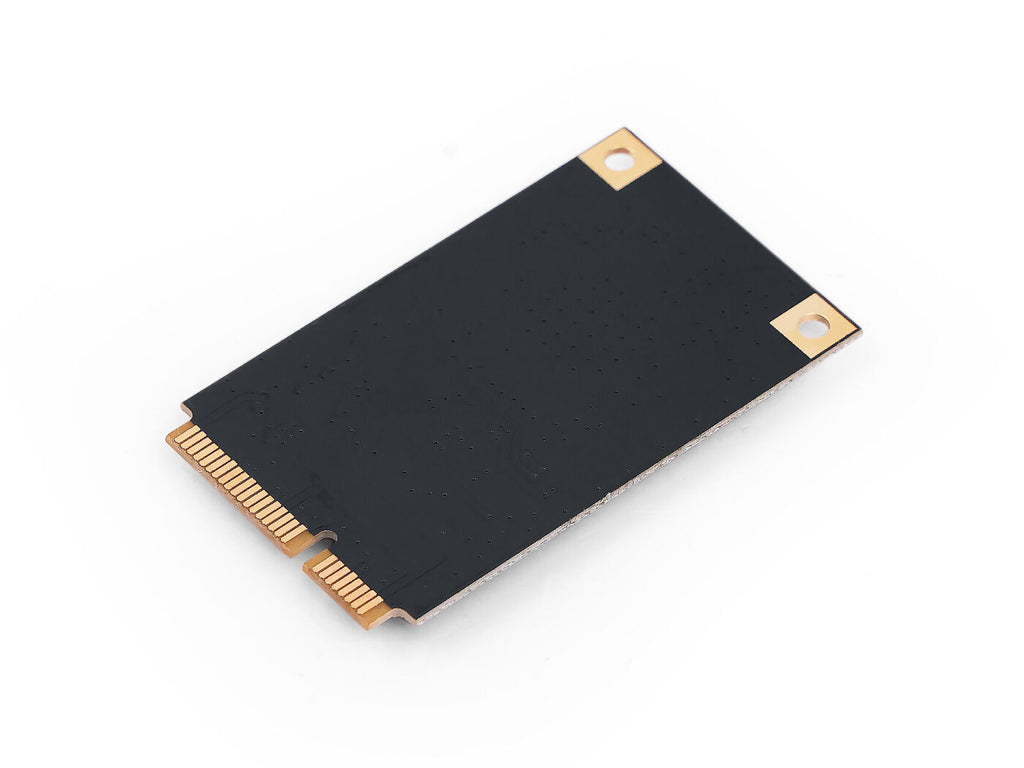

The Wio-WM6180 Wi-Fi HaLow Mini-PCIe Module,powered by the Quectel FGH100M-H, is a long-range, low-power Wi-Fi HaLow module. Operating in the 902-928 MHz frequency band, it offers excellent penetration and coverage, making it ideal for smart home and IoT applications. Featuring the industry-standard Mini-PCIe form factor, it's ideal for industrial and embedded applications where reliable connectivity and space efficiency are essential.
Note: Wi-Fi HaLow is an open, standard Wi-Fi technology operating in the license-exempt Sub-1 GHz range.
- Long-Range Connectivity: Complies with IEEE 802.11ah standard, operating in 902-928 MHz frequency band, providing coverage up to 1 km with superior penetration performance.
- Low Power Consumption: Optimized power efficiency design, making it ideal for power-sensitive IoT applications.
- Large-Capacity Access: Supports up to hundreds of simultaneous device connections to the same Wi-Fi access point - ideal for large-scale IoT deployments.
- Robust Security: Implements comprehensive security features including AES, SHA-256, SHA-384, SHA-512, and WPA3 encryption.
- Mini-PCle Form Factor: Utilizing the industry-standard Mini-PCIe interface, this module enables straightforward integration into existing systems. The standardized form factor makes it an ideal choice for industrial and embedded applications, offering both reliable performance and installation convenience.
Parameters | Details |
WLAN Protocol | IEEE 802.11ah |
Wi-Fi Frequency Band | 902–928 MHz |
Wi-Fi Antenna | 1 x 1 |
Wi-Fi Modulation Mode | OFDM,BPSK, QPSK, 16QAM, 64QAM |
Encryption Mode | AES, SHA-256, SHA-384, SHA-512, WPA3 |
Wi-Fi Operating Mode | AP/ STA |
Operating Temperature Range | -30 °C to +85 °C |
Extended Temperature Range | -40 °C to +85 °C |
Physical Rate (Max.) | 802.11ah: 32.5 Mbps |
Power Supply Voltage | VBAT: 3.0–3.6 V, typ. 3.3 V |
I/O Power Supply Voltage | VDD_IO: 1.62–3.6 V, typ. 1.8/3.3 V |
FEM Power Supply Voltage | VDD_FEM: 3.0–5.25 V, typ. 5 V |
- Smart Home Devices
- Industrial Automation Control
- Smart City Infrastructure
- Agricultural IoT Monitoring
- Environmental Monitoring Systems
Wio-WM6180 Wi-Fi HaLow Mini-PCIe Module | ×1 |
| HSCODE | 8517799000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
