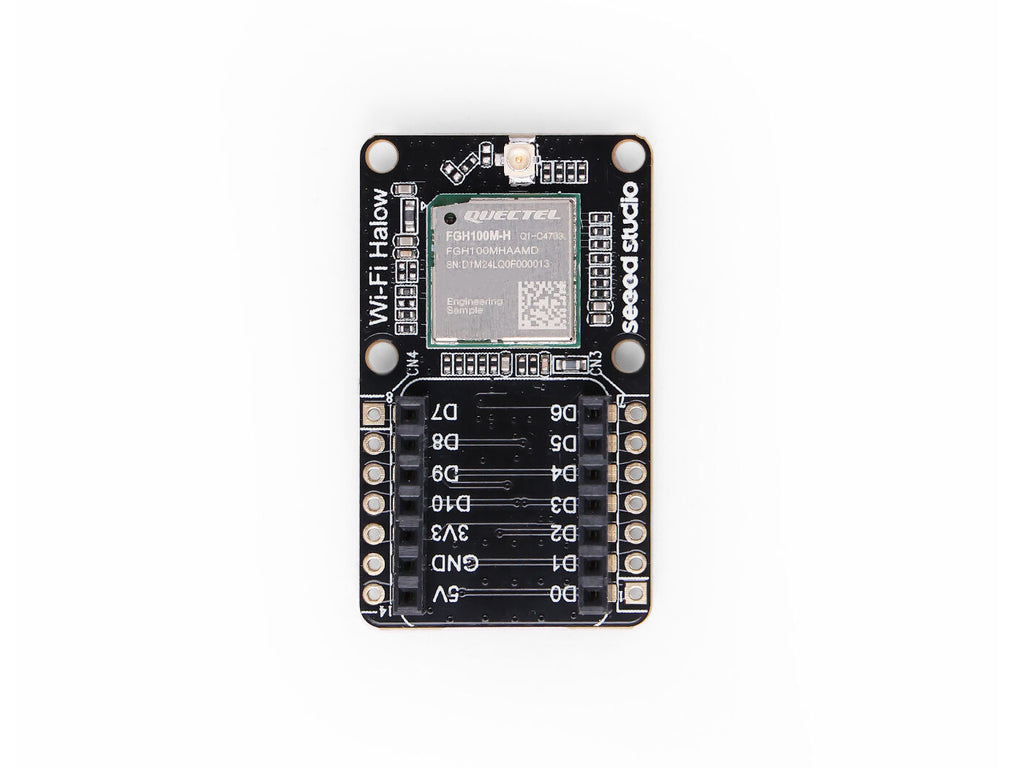

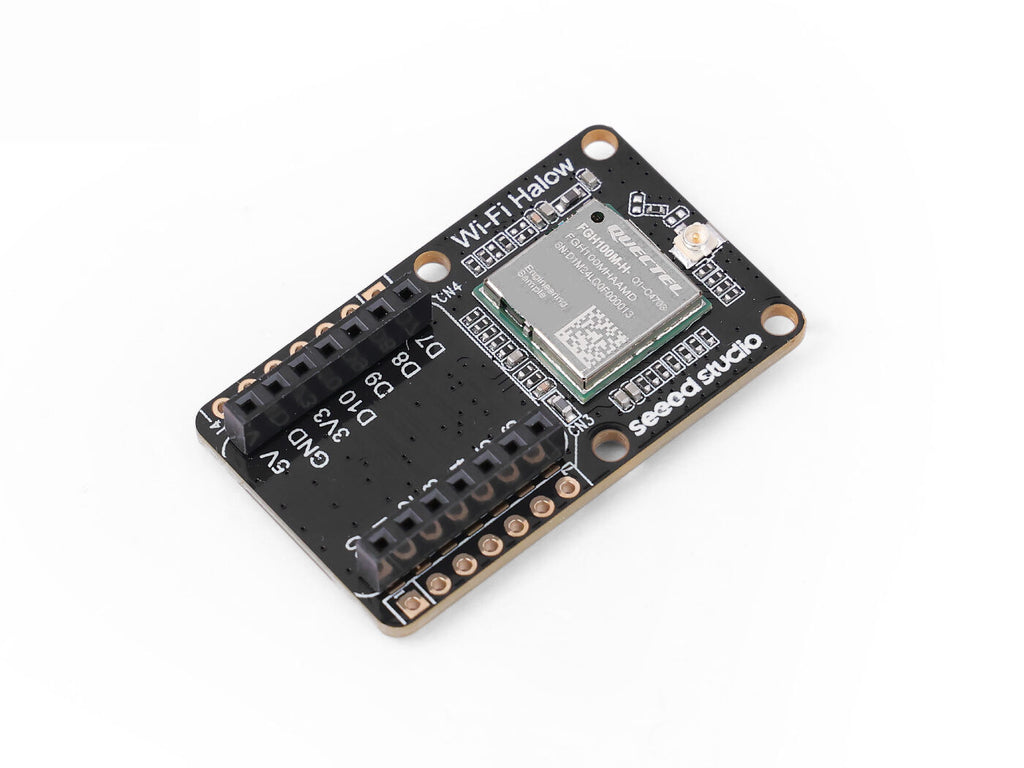

The Wi-Fi Halow Board based on the FGH100M-H module is a high-performance, long-range Wi-Fi HaLow solution. Operating in the 902-928 MHz frequency band, it offers excellent penetration and coverage, making it ideal for smart home and IoT applications. With its compact design and compatibility with the Seeed Studio XIAO ecosystem, this card ensures reliable and efficient connectivity for various projects.
- Long-Range Connectivity: Complies with IEEE 802.11ah standard, operating in 902-928 MHz frequency band, providing coverage up to 1 km with superior penetration performance.
- Low Power Consumption: Optimized power efficiency design, making it ideal for power-sensitive IoT applications.
- Robust Security: Implements comprehensive security features including AES, SHA-256, SHA-384, SHA-512, and WPA3 encryption.

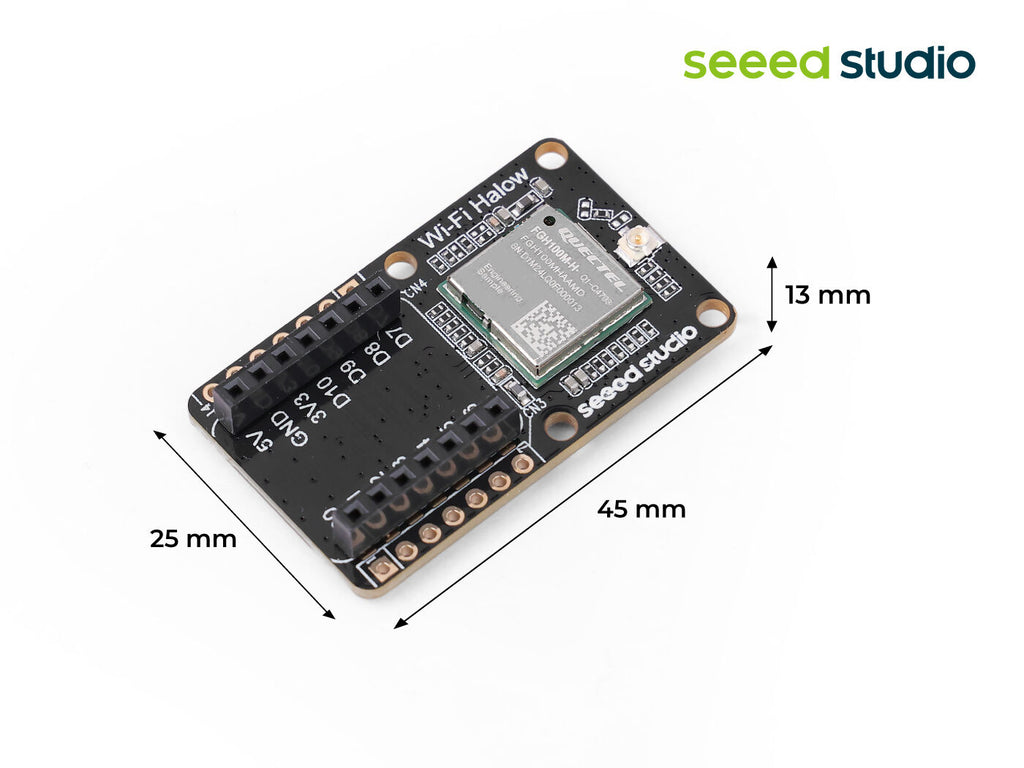

- Seamless Integration with Seeed Studio XIAO Boards: Sized at 42 x 25mm, it's compatible with the Seeed Studio XIAO Boards (Pre-Soldered) via easy snap-on.
Parameters | Details |
WLAN Protocol | IEEE 802.11ah |
Wi-Fi Frequency Band | 902–928 MHz |
Wi-Fi Antenna | 1 x 1 |
Wi-Fi Modulation Mode | OFDM,BPSK, QPSK, 16QAM, 64QAM |
Encryption Mode | AES, SHA-256, SHA-384, SHA-512, WPA3 |
Wi-Fi Operating Mode | AP/ STA |
Operating Temperature Range | -30 °C to +85 °C |
Extended Temperature Range | -40 °C to +85 °C |
Physical Rate (Max.) | 802.11ah: 32.5 Mbps |
Power Supply Voltage | VBAT: 3.0–3.6 V, typ. 3.3 V |
I/O Power Supply Voltage | VDD_IO: 1.62–3.6 V, typ. 1.8/3.3 V |
FEM Power Supply Voltage | VDD_FEM: 3.0–5.25 V, typ. 5 V |
- Smart Home Devices
- Industrial Automation Control
- Smart City Infrastructure
- Agricultural IoT Monitoring
- Environmental Monitoring Systems
Wi-Fi HaLow Module | ×1 |
| HSCODE | 8517799000 |
| USHSCODE | 8517180050 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
