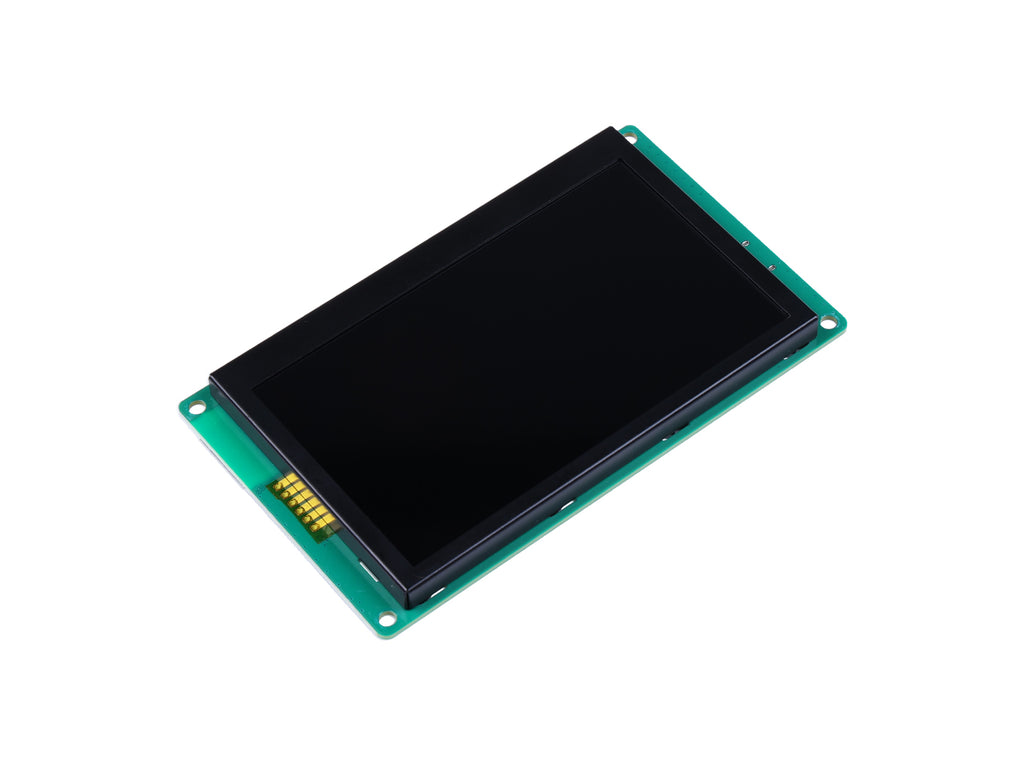

WT32 ZX4D3ONE01S is a standard serial port LCD screen, Based on ESP32-S3 and core efficient development platform 8ms(8MS.XYZ), which can quickly help products to complete the application of networking + color screen upgrade.
Features
Cost-effective serial port LCD screen: The standard design of the serial screen provides a color screen display + connection application for intelligent product upgrades
Universal interface: Using RGB interface, support scrolling, sliding, GIF effects
Multi-function support: Support offline voice, WIFI, Bluetooth communication, multi-language one-click switching
Ample image storage: Support self-created image storage, can store hundreds of full-screen pictures
On-Line control: Online OTA support, also support USB upgrade
Description
The serial port screen adopts the W322-S3-Wrover module with 16MB Flash and 8Line 8M PSRAM equipped with a 4.3-inch full touch screen with RGB interface resolution of 480*272. At the same time, it can also be equipped with online and offline voice interaction solutions, supporting WIFI and Bluetooth, which can realize device networking, remote control, data visualization and other functions. Onboard resources include USB download connection, RS485, IO, etc.
It supports directly calling the UI SDK on the 8ms development tool platform for UI development, and the application can call the SDK provided by the platform to achieve rapid development. Greatly shorten the user product development cycle.
The solution is often used in smart products such as electric vehicle meters with screens, energy storage charging equipment, air fryers, water heaters, washing machines, ovens, etc. and various applications that require screen display. It is also often used as the traditional segment code screen, black and white screen product solution upgrade preferred.
Application
Smart Homes
Intelligence Appliance
Home Automation Control
IoT Wearable Devices
Specifications
Basic Parameters | |
MCU |
WT32-S3-WROVER-N16R8 |
Supply Power |
DC 5V 2A |
Capacity |
8Mbyte PSRAM+ 16Mbyte Flash |
working current |
175mA |
Working Temperature |
-20°C - 70°C |
Storage Temperature |
-30°C - 80°C |
Operating Humidity |
10% - 90%RH |
Dimensions |
121.92mm*73.15mm*14.43mm |
LCD Parameters | |
Display Type |
LCD |
Driver IC Model |
ST7701 |
Viewing Angle |
FULL |
Display Size |
43`` |
Resolution |
480*272 |
Display Interface |
RGB |
Communication Interface |
RS232/TTL/USB/WIFI/BLE/RS485 |
Hardware Interface |
Debug /SD Card/Speaker/LCD |
Hardware Overview
Part List
ZX4D3ONE01S |
×1 |
ECCN/HTS
| HSCODE | 8543709990 |
| USHSCODE | 8471490000 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
