- Smart Home Integration: Seamlessly works with Home Assistant through pre-installed ESPHome firmware. Control and automate your devices remotely via Wi-Fi, with no complex setup needed.

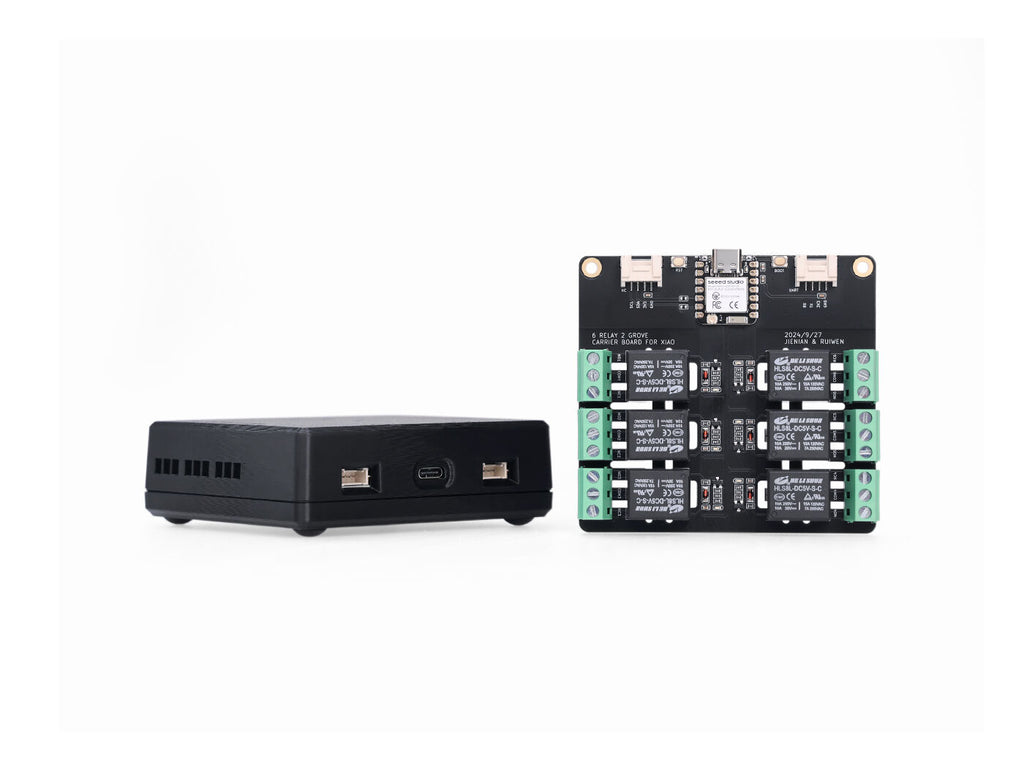

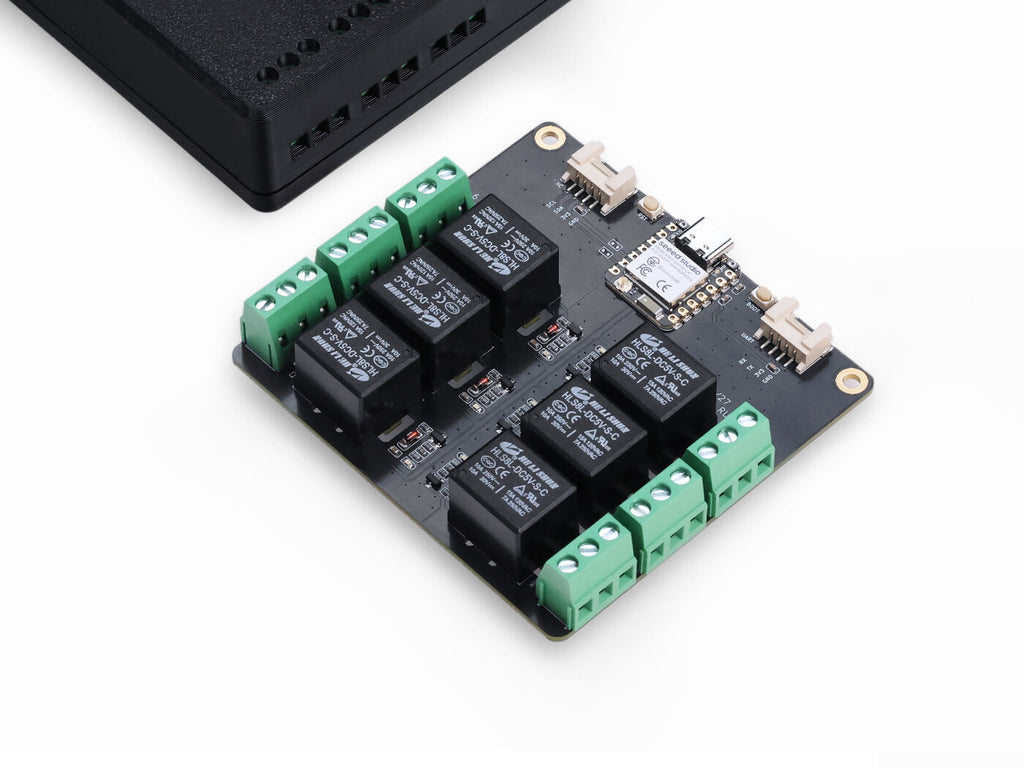

- Six Independent Relay Control: Features 6 independent relay channels to control multiple DC devices simultaneously. Perfect for managing various home appliances, from lights to motors, all in one compact hub.
- XIAO ESP32-C6 Powered: Powered by Seeed Studio XIAO ESP32-C6, delivering stable Wi-Fi, BLE 5.0, Zigbee & Thread connectivity and robust performance for all your automation tasks.

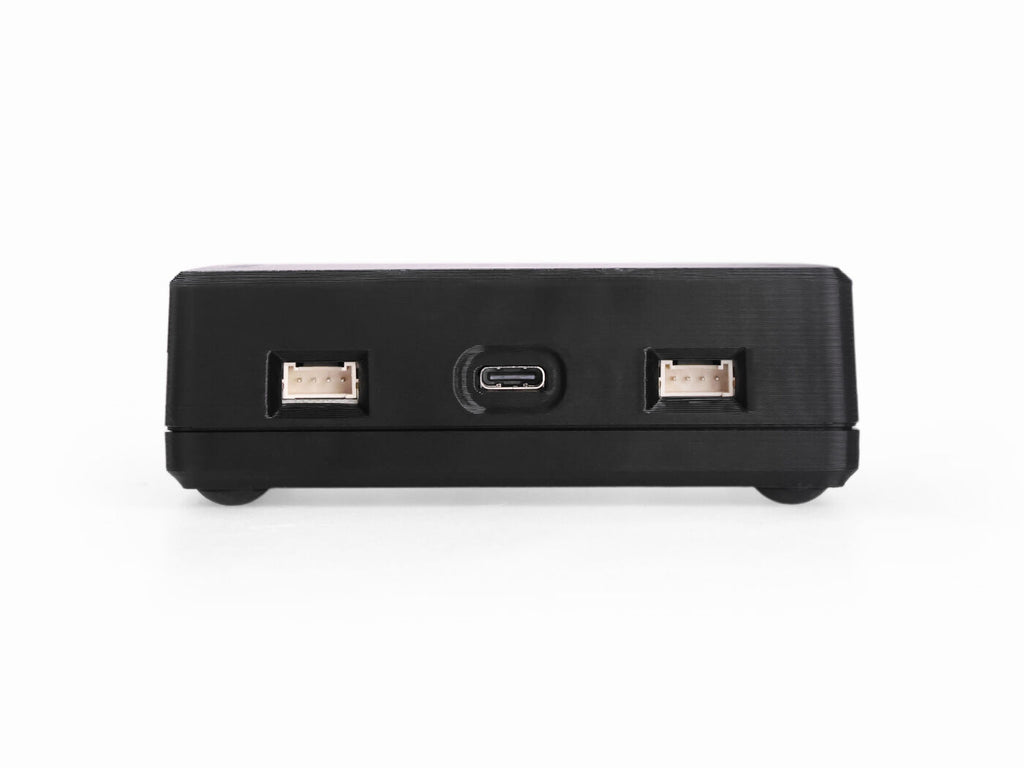

- Built for Expansion: Two Grove interface ports allow easy connection of additional Grove sensors or actuators. Expand your automation possibilities without complicated wiring or modification.
- Compact & Developer-Friendly: Space-saving design meets professional reliability. Fully supports Arduino IDE for custom programming, making it ideal for both beginners and experienced makers.
Processor | XIAO ESP32-C6 |
Input voltage (Type-C) | DC 5V (For XIAO) |
Interfaces | 2.4GHz Wi-Fi 6, 1xIIC(Grove), 1xUART(Grove), USB(Type-C) |
Outputs | 6 Relay Channels, each with COM,NC,NO 10A 30VDC (recommended) 10A 250VAC |

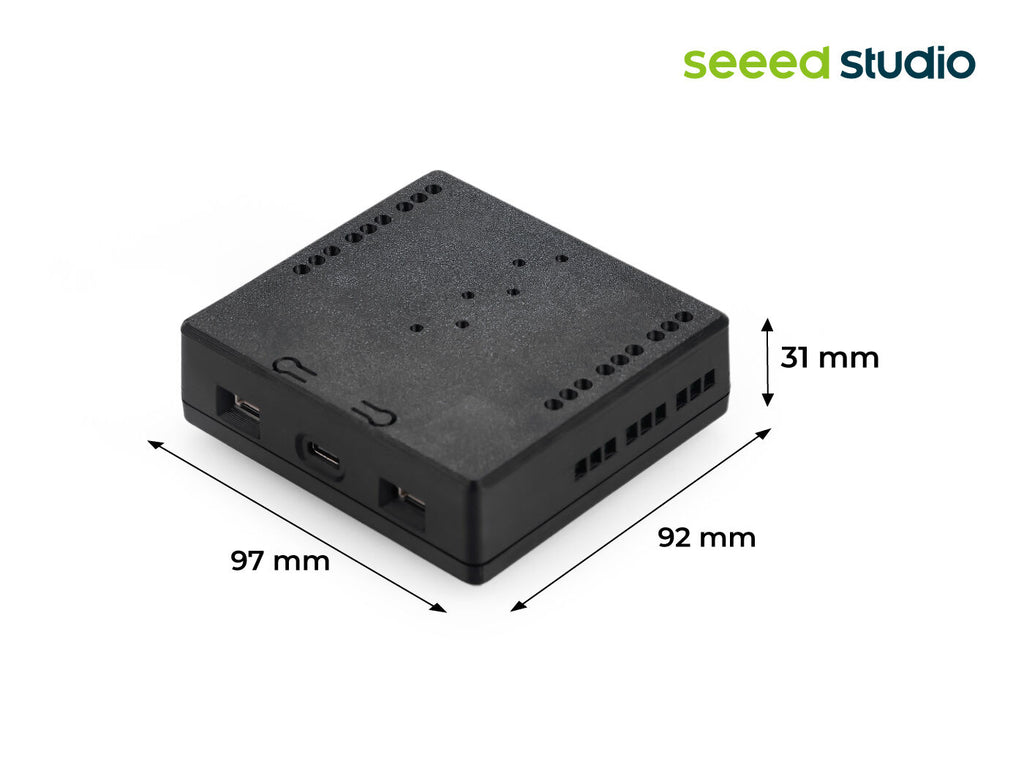

Dimensions | 97mm*92mm*31mm |

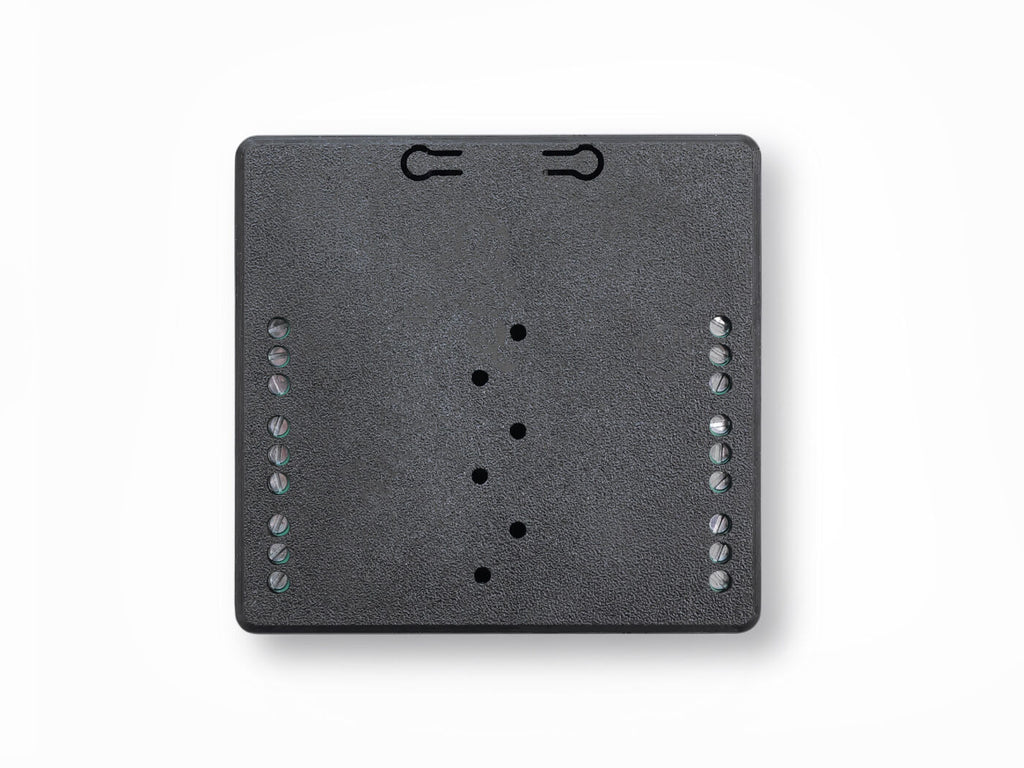

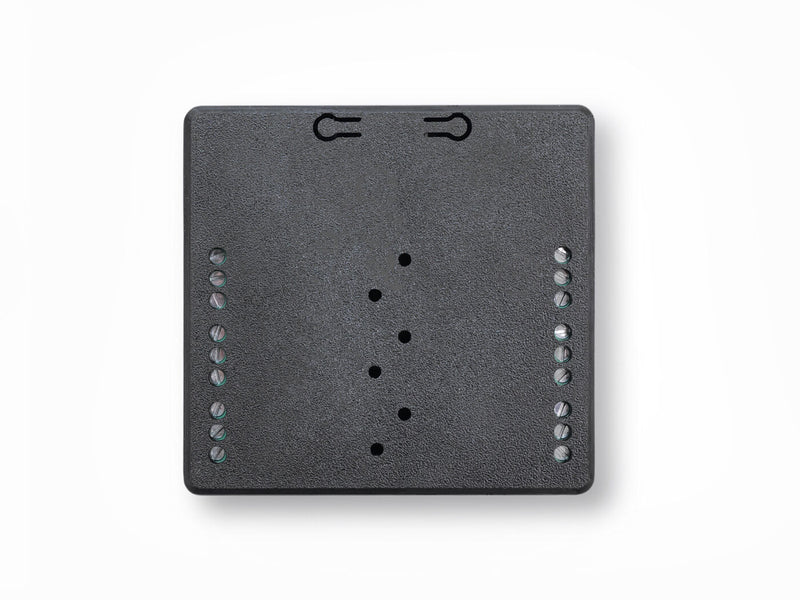

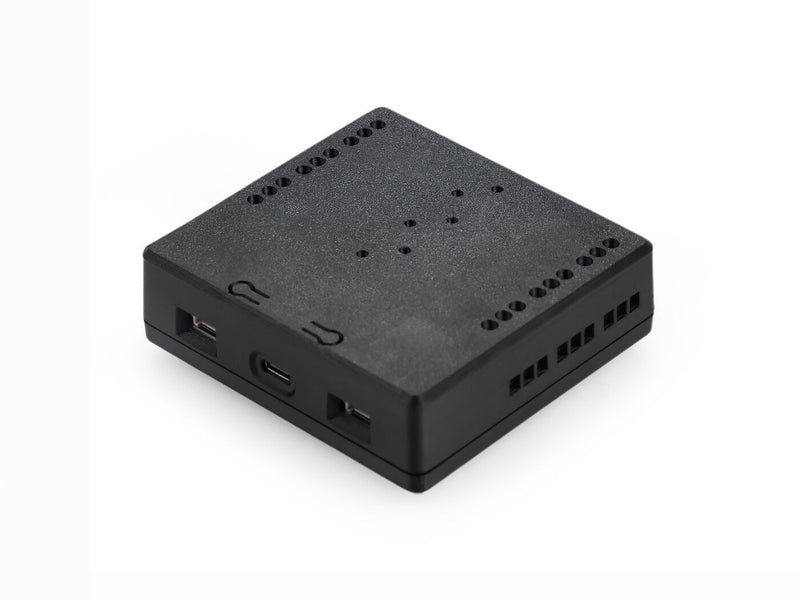

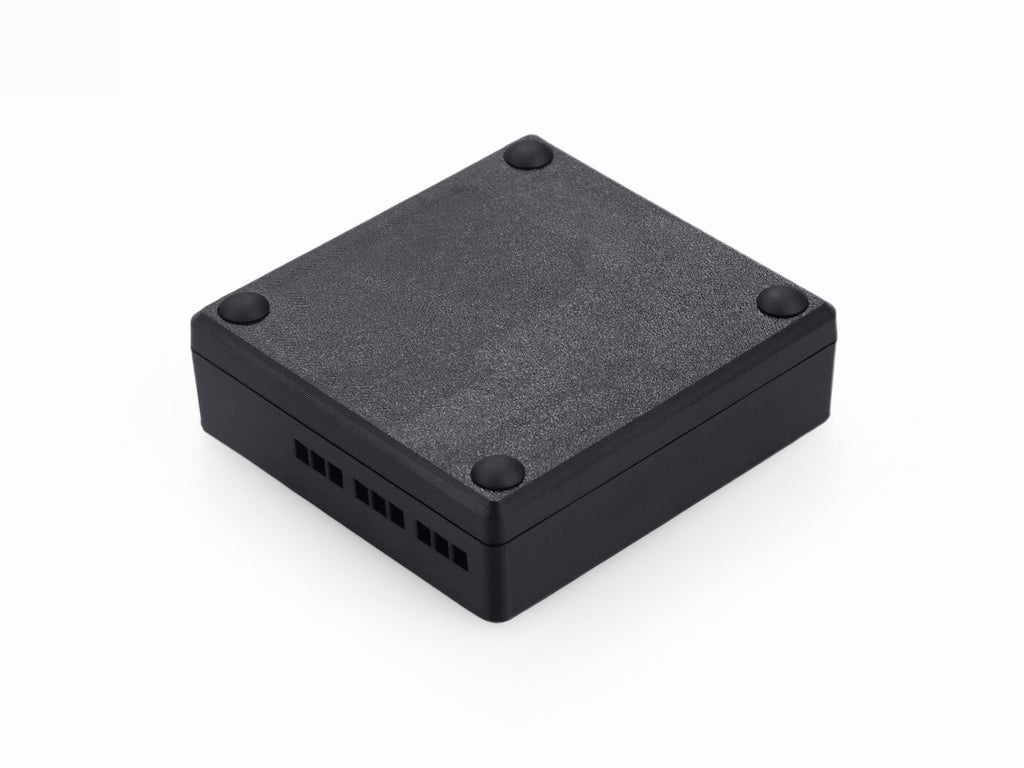

Enclosure | 3D PrintedColcor: Black Material: PLA |
- Home Automation Systems
- Compact Industrial Control Systems
- Energy Management Systems
- Smart Agriculture
- Connected Device Applications
The 3D casing of this XIAO is open sourced on Thingiverse. Feel free to remix.
XIAO 6-Channel Wi-Fi 5V DC Relay with 3D-Printed Enclosure | x1 |
| HSCODE | 8536490090 |
| USHSCODE | 8536410030 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |
