- Meshtactic works out of the box: Pre-flashed with Meshtastic firmware, it is ready to work once powered on.
- Outstanding RF performance: Supports LoRa(862-930MHz) 2.4GHz Wi-Fi and BLE 5.0 dual wireless communication, support 2~5km(LoRa) and 100m+(Wi-Fi/BLE) remote communication when connected with U.FL antenna.
- Thumb-sized Compact Design: 21 x 18mm, adopting the classic form factor of XIAO, suitable for space-limited projects like wearable devices.
- Powerful MCU Board: Incorporate the ESP32S3 32-bit, dual-core, Xtensa processor running at up to 240MHz, mounted multiple development ports, Arduino / MicroPython supported.
- Elaborate Power Design: Includes a Type-C USB interface and lithium battery charge management.
- Same Hardware for Multiple Applications: Can be developed as a Meshtastic node or router, a single-channel LoRaWAN gateway, or a LoRa & LoRaWAN sensor.
Compatible with XIAO Expansion Board for adding screens and sensors, and add Grove sensors via the Grove expansion Board.
Support connecting an external high-performance LoRa antenna using an IPEX to SMA connector:

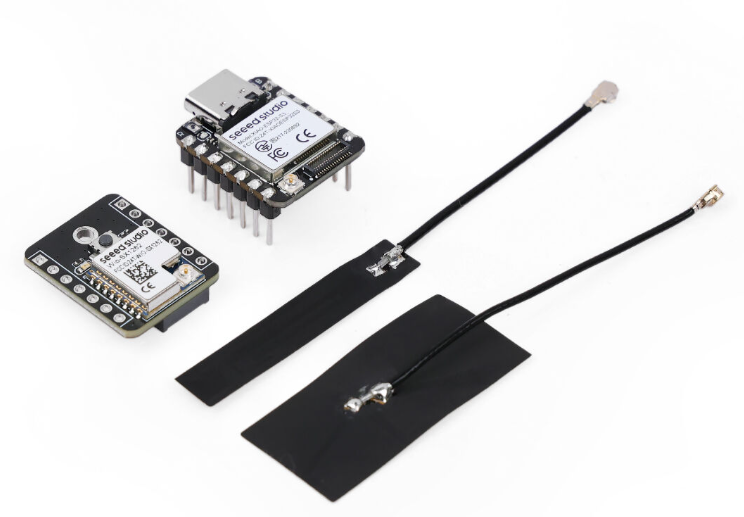

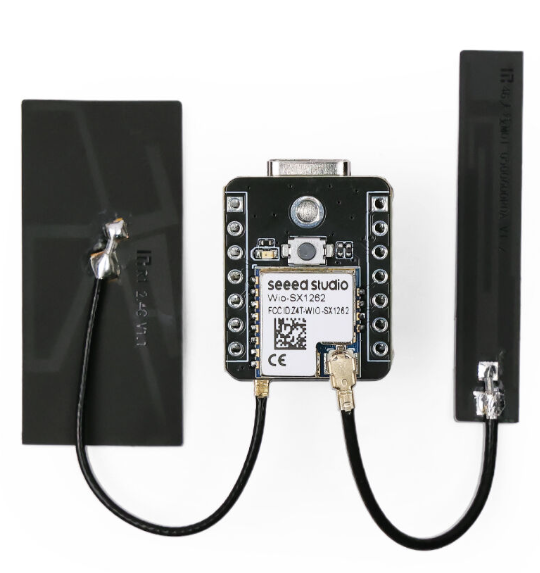

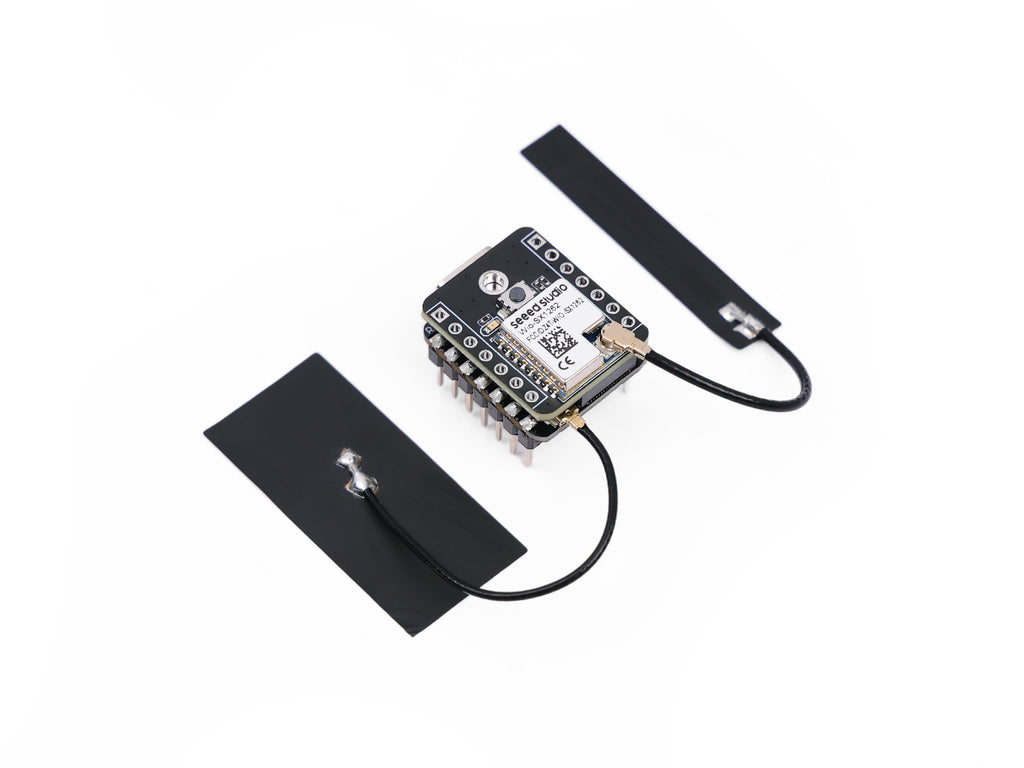

- FPC antenna included in package
- 2 dBi external antenna and SMA to I-PEX antenna cable.
- 3 dBi fiberglass antenna and RPSMA-K to U.FL RF cable
ESP32S3 | ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz |
LoRa | Based on Semtech SX1262, supports 862-930MHz, |
BLE | Bluetooth 5.0, Bluetooth mesh |
Wi-Fi | Complete 2.4GHz Wi-Fi subsystem |

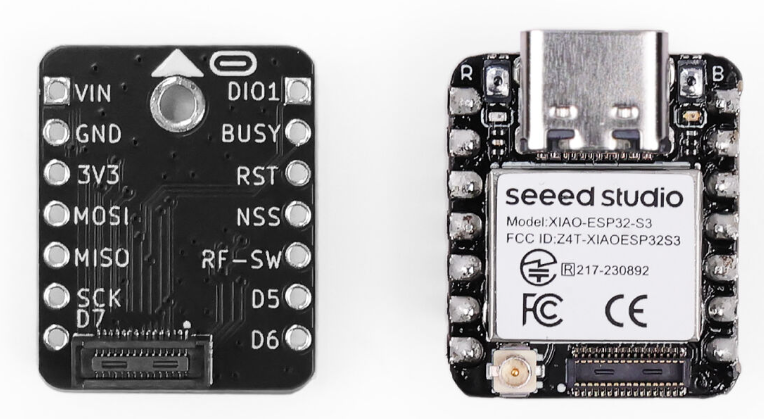

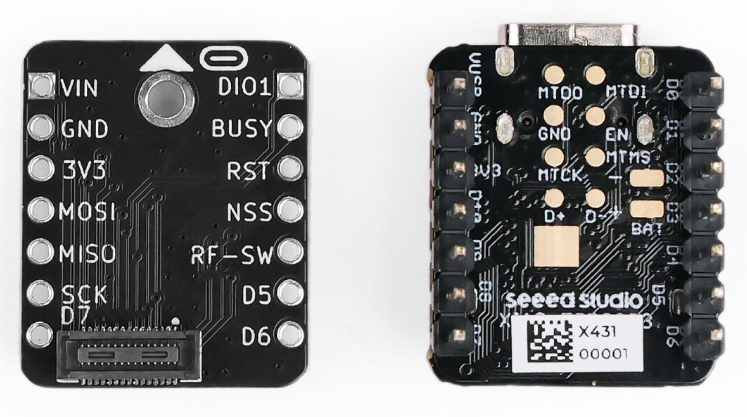

Interface | ESP32S3: 1x UART, 1x IIC, 1x IIS, 1x SPI(connect to SX1262),11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x Reset button, 1x Boot button Wio-SX1262: 1xUser button, 1xSPI(connect to ESP32S3) |
Power | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V |
Charging battery current: 100mA | |
Working Temperature | -40°C ~ 65°C |
Dimensions | 21 x 17.8mm |
