- High Performance MCU: Silicon Labs' EFR32MG24 SoC, 32-bit 78 MHz ARM Cortex®-M33 with DSP instruction
- Matter Native: Compatible with Matter® over Thread® and Bluetooth® Low Energy 5.3, Supported by the Arduino® Core
- Outstanding RF Performance: Equipped with an on-board antenna with BLE range up to 50m in an open location with no signal interference, while reserving an interface for external UFL antenna
- Super-Low Power Design: Power consumption less than 1.95μA in sleep mode, ideal for battery-powered projects
- Rich On-Board Resources: Additional 4MB Flash on board, on-board battery charging circuit, 19 GPIOs, LED
- Security Encrypted On-Chip: A dedicated hardware secure engine containing its own CPU enables the Secure Vault functions.
- Classic XIAO Design: Remains the classic XIAO design of the thumb-size form factor of 21 x 17.8mm, and single-sided mount, making it perfect for space-limited projects such as wearables
- XIAO Accessory Add-ons and Kits Compatibility: Natively compatible with all the XIAO accessory add-ons and kits of Grove Expansion, CAN-Bus, LED Matrix, Vision AI Sensor, Round Display, GSP Module, 2-Mic Array, ePaper Display, mmWave sensor, LoRa Module and many more.
Being the 11th member of the Seeed Studio XIAO family, the XIAO MG24 remains the classic XIAO design (thumb-size, SMD, stamp holes). All these features make it a perfect fit for either space-limited applications of home automation, or a production-ready unit for your PCBA designs. (check out our Fusion Co-Create one-stop prototyping, producing and promoting services to explore how to scale up your XIAO-based designs).
Note:
XIAO SoM User Manual open-sources all hardware and software materials of XIAO, providing professional product design guidelines to help you accelerate ideas off the ground, streamline product design, providing a seamless experience from module selection to mass production. You can check here more info.
Product | XIAO MG24 | XIAO MG24 Sense |
Processor | Silicon Labs EFR32MG24 | Silicon Labs EFR32MG24 |
ARM Cortex-M33 @ 78MHz | ARM Cortex-M33 @ 78MHz | |
RAM | 256kB | 256kB |
Flash | 1536KB + 4MB Onboard | 1536KB + 4MB Onboard |
LEDs | 1 User LED, 1 Power LED | 1 User LED, 1 Power LED |
Sensors | - |
Onboard Analog Microphone Onboard 6-Axis IMU |
Interface | 22 Pins: 11x Analog,11x Digital, 2x I²C, 2x UART, 2x SPI, All PWM | 22 Pins: 11x Analog,19x Digital, 2x I²C, 2x UART, 2x SPI, All PWM |
Button | 1 RESET Button | 1 RESET Button |
Security | Hardware Cryptographic Acceleration, True Random Number Generator, ARM® TrustZone®, Secure Boot, Secure Debug Unlock etc. | Hardware Cryptographic Acceleration, True Random Number Generator, ARM® TrustZone®, Secure Boot, Secure Debug Unlock etc. |
Low power | 1.95μA | 1.95μA |
Normal | 6.71mA | 6.71mA |
Sleep | 1.91mA | 1.91mA |
Software Compatibility | Arduino IDE | Arduino IDE |
Working Temperature | -20°C-70°C | -20°C-70°C |

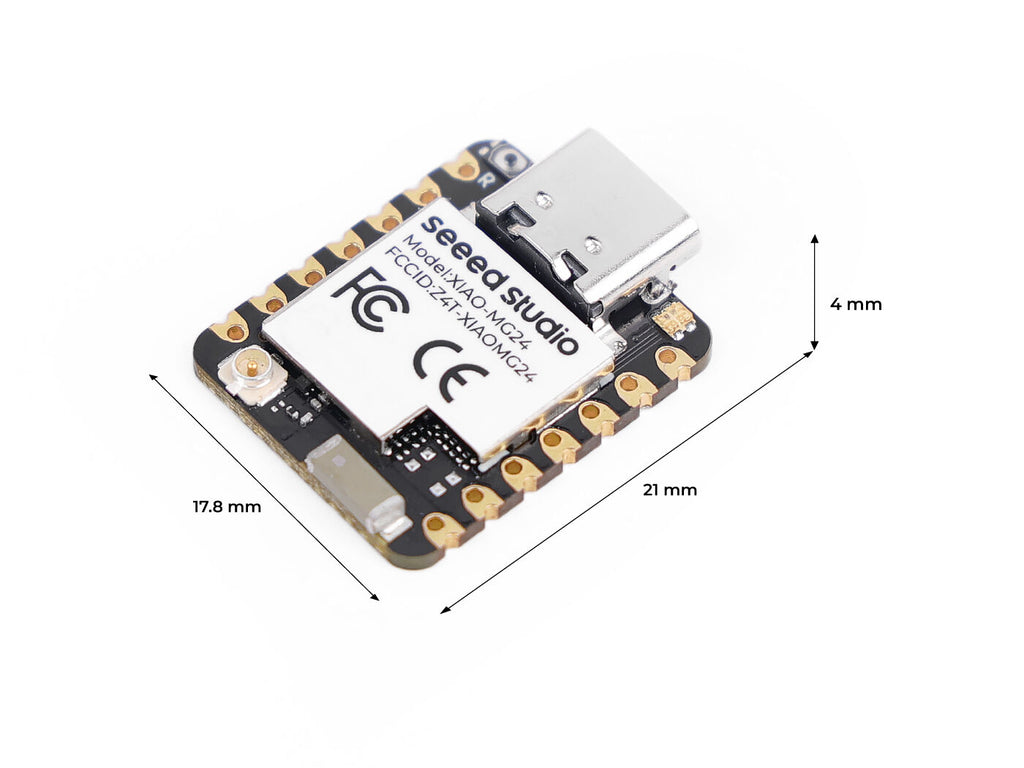

Dimensions | 21x17.8 mm | 21x17.8 mm |
- Onboard

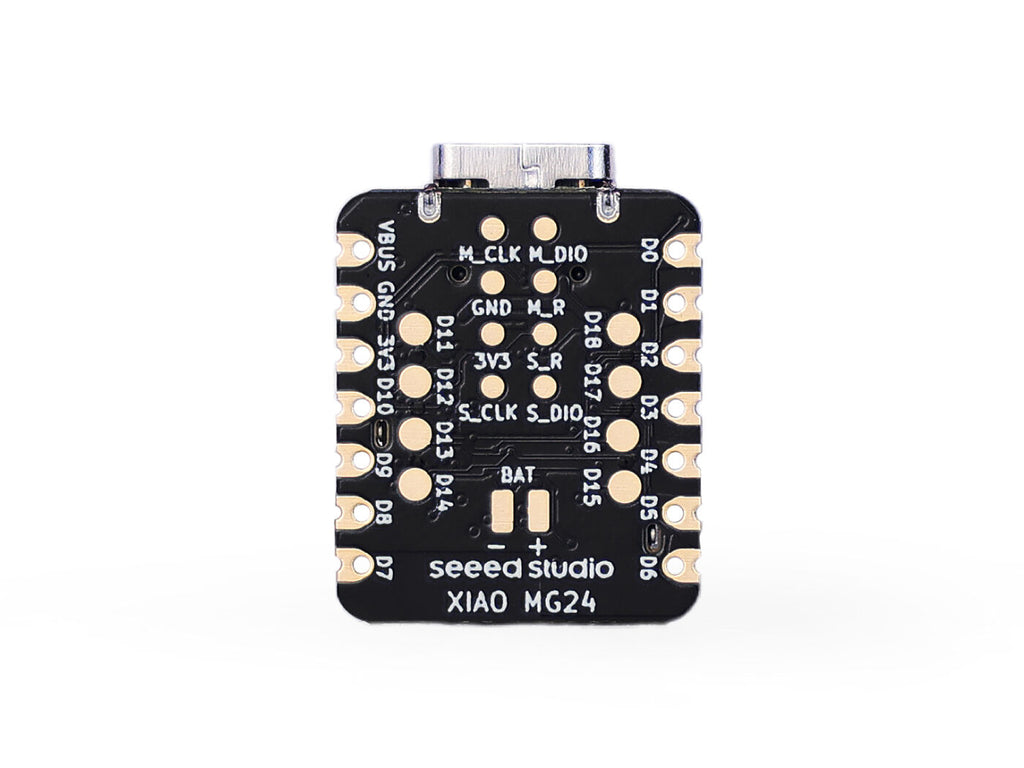

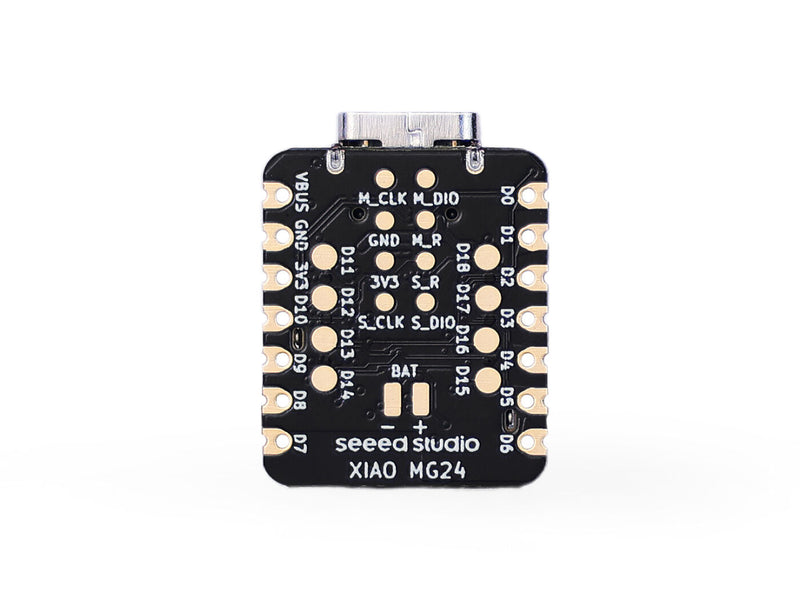

- PinOut
It's perfect for battery-powered Matter® projects in:
- Smart Home Automation: Devices like smart lighting, thermostats, and security systems using Matter.
- Remote Sensing and Control: Wireless control of devices in automation systems.
- Environmental Monitoring: Battery-powered sensors for indoor settings.
Getting Started with Seeed Studio XIAO MG24

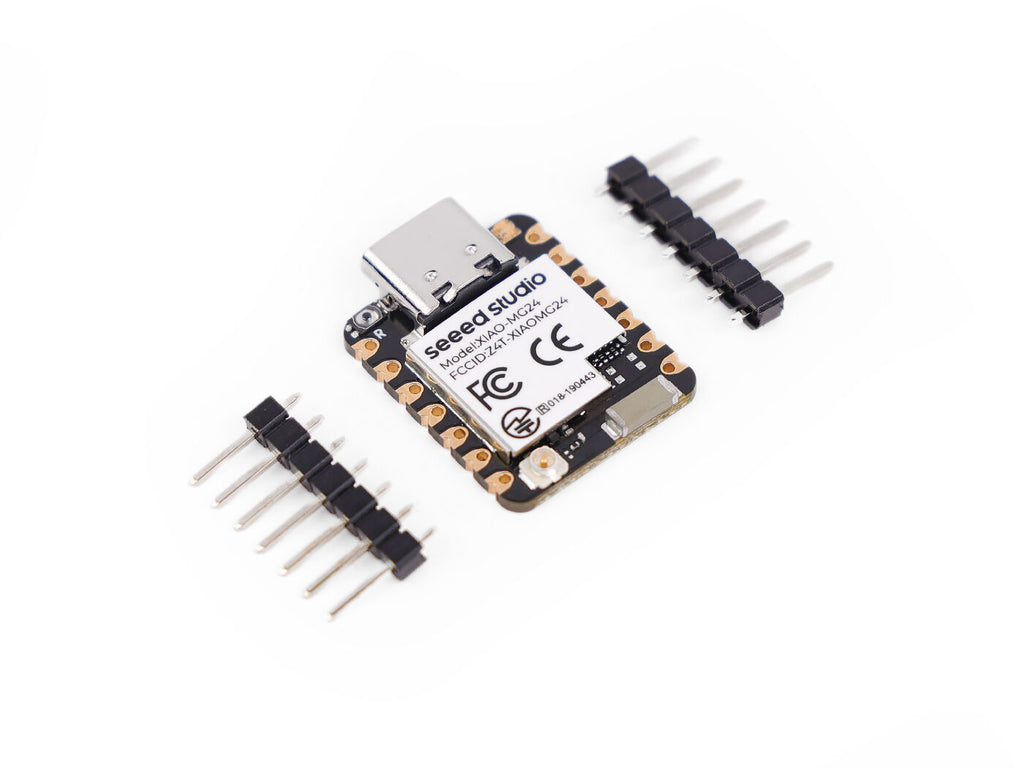

Seeed Studio XIAO MG24 | x1 |
7 Pin Header | x2 |
| HSCODE | 8543709990 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
