- Versatile Microcontroller: Incorporate the Nordic nRF52840 chip with FPU, operating up to 64 MHz, mounted multiple development ports, supported by Arduino / CircuitPython / Micropython
- Powerful LoRa Performance: Long-range LoRa on Semtech SX1262, supports 868/915 MHz bands.
- Dual-core communication: It supports both Bluetooth and LoRa dual modes, enabling cross-domain interconnection.

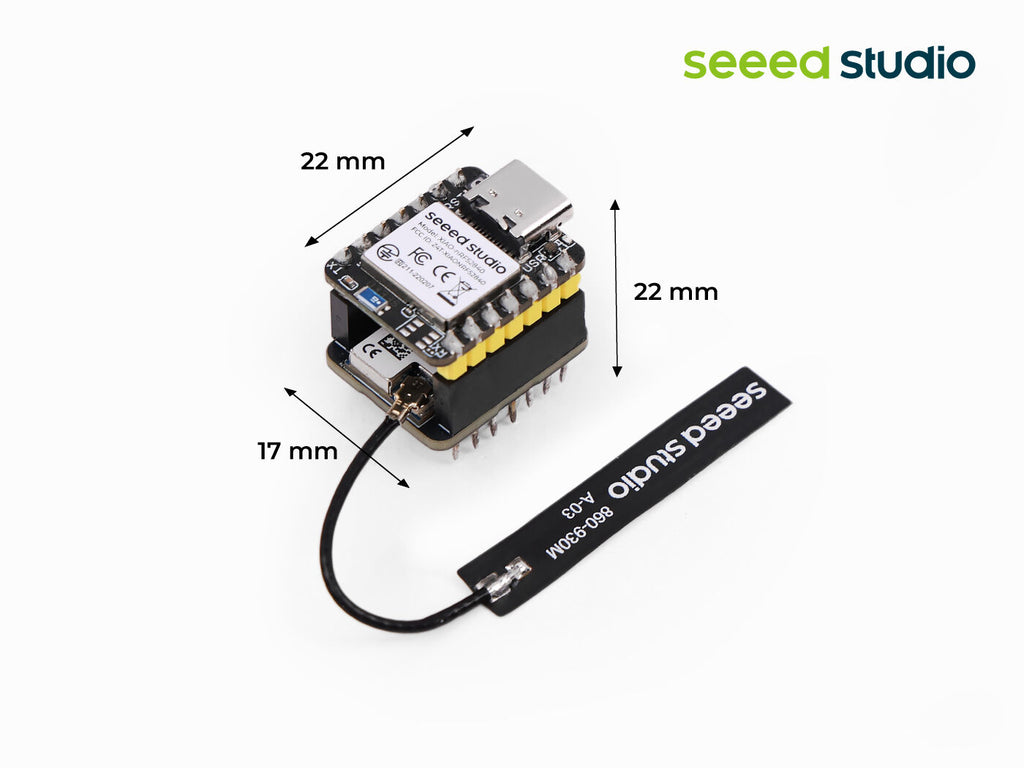

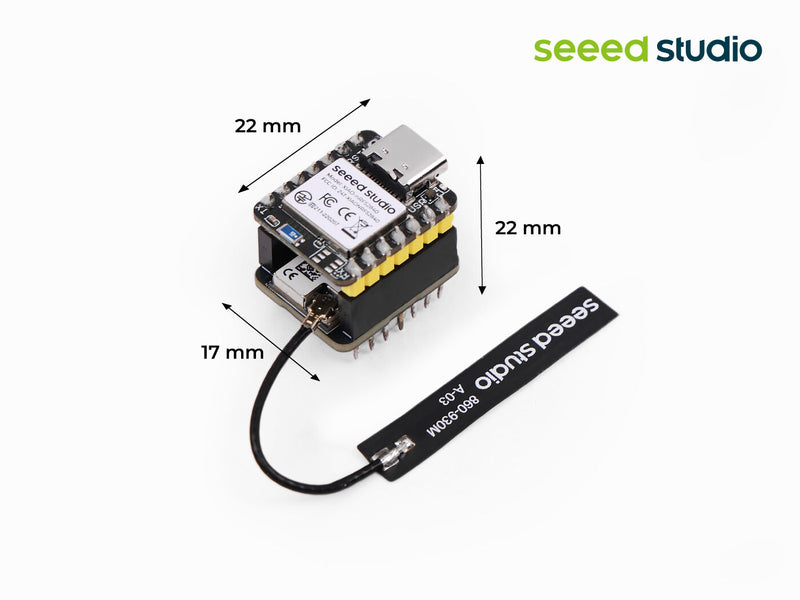

- With dimensions of only 8mm × 22mm × 23mm, it features an integrated antenna design.
XIAO nRF52840 | Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz |
Wio-SX1262 | Based on Semtech SX1262, supports 862-930MHz |
Wireless | Bluetooth 5.0/NFC |
Interface | XIAO nRF52840:1x UART, 1x IIC, 1x SPI(connect to SX1262),1x NFC, 1x SWD, 11x GPIO(PWM), 6x ADC |
Wio-SX1262: 1xUser button, 1xSPI(connect to XIAO nRF52840) | |
Power | Input voltage (Type-C): 5V Input voltage (BAT): 4.2V |
Charging battery current: 50mA/100mA | |
Standby power consumption: <5uA | |
Working Temperature | -40°C ~ 65°C |
Dimensions | 21 x 17.8mm |
XIAO nRF52840
- Onboard
- PinOut
Wio-SX1262
- Onboard

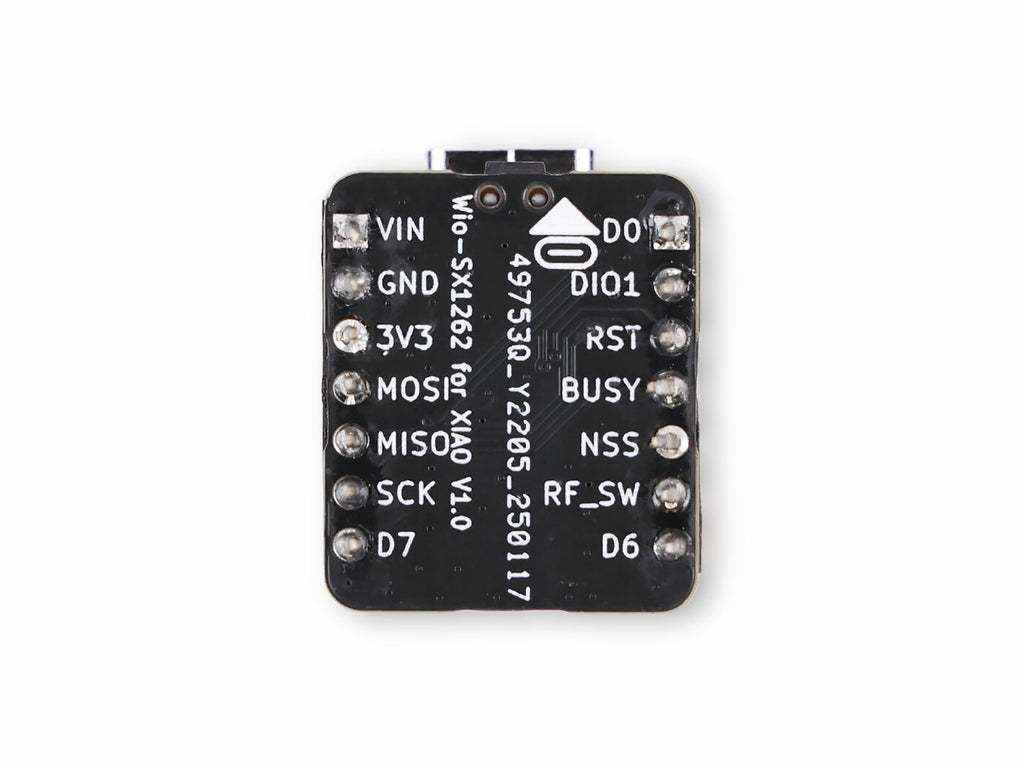

- PinOut
- Meshtastic Node&Router: An ultra-small node that can serve as a portable device or as a fixed router to expand the Meshtastic network.
- LoRa/LoRaWAN Sensor: A mini LoRaWAN sensor, ideal for beginners exploring LoRa/LoRaWAN.
For example, when combined with a GPS module (such as the XIAO L76K), it can be used to track the locations of logistics vehicles, livestock, and valuable equipment. Thanks to the long-distance coverage of LoRa (2-5 km in urban areas and over 10 km in suburban areas), it can reduce the cost of base station deployment.
Schematic Diagram Wio-SX1262 for XIAO
Seeed Studio XIAO nRF52840 BLE Communication Distance Test Report
Seeed Studio XIAO nRF52840 CE | FCC | MIC
Schematic diagram of Wio-SX1262 for XIAO

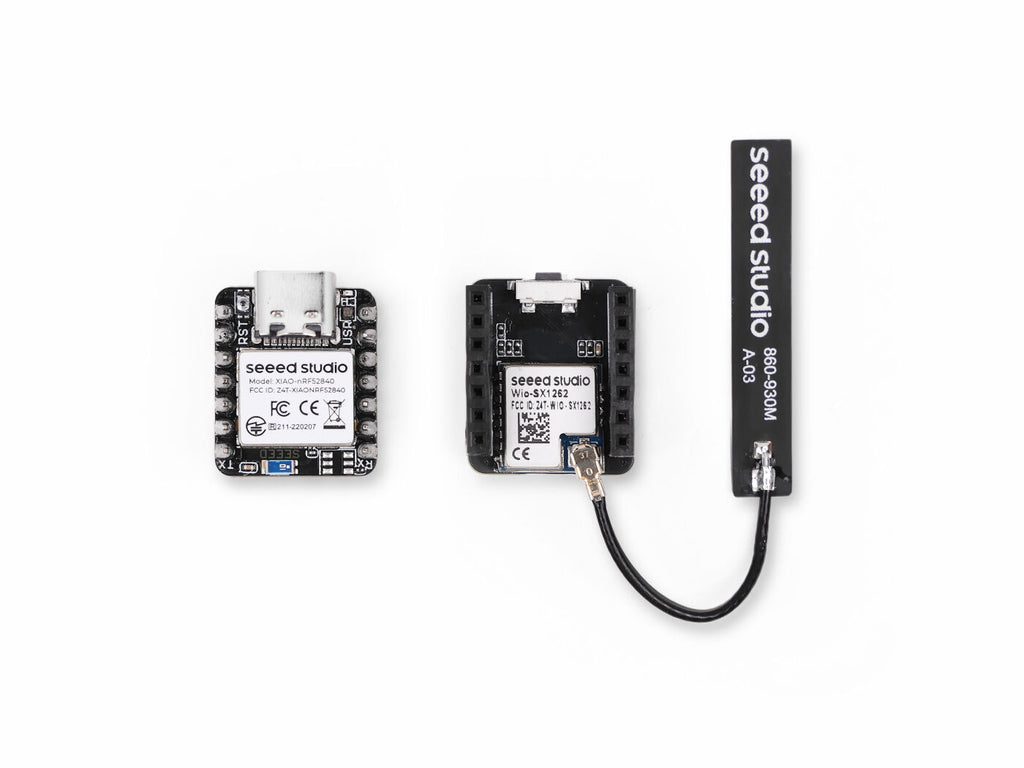

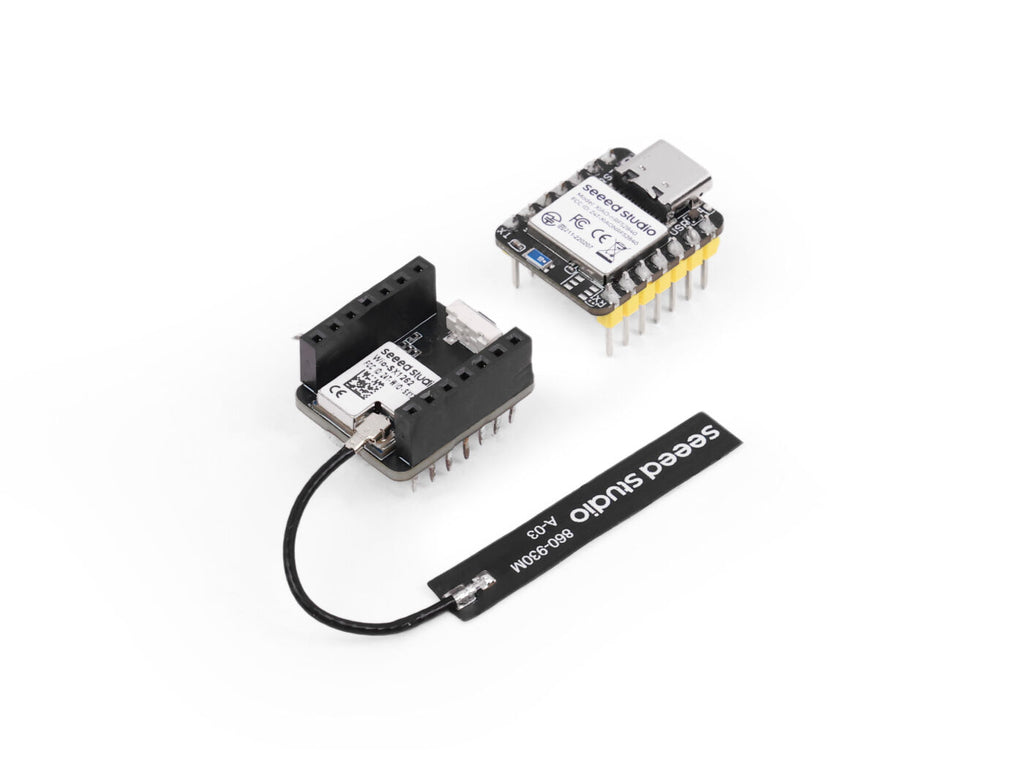

XIAO nRF52840 | x1 |
Wio-SX1262 extension board | x1 |
LoRa antenna | x1 |
| HSCODE | 8543709990 |
| USHSCODE | 8543708800 |
| UPC | |
| EUHSCODE | 8543709099 |
| COO | CHINA |
