- Cutting Beast: Cuts all-color acrylic (20mm in one pass), wood, leather, and more.
- Super Production: 660mm x 355mm" bed size, 600mm/s, smart batch processing.
- Exclusive Innovation: Dual cameras, 3m Auto Passthrough, 3D curve engraving.
- Safety: AI fire detection, FREE Fire Safety Set
- Exhaust Fan: New and improved Exhaust Fan
How to Choose a Desktop CO2 Laser Cutter？

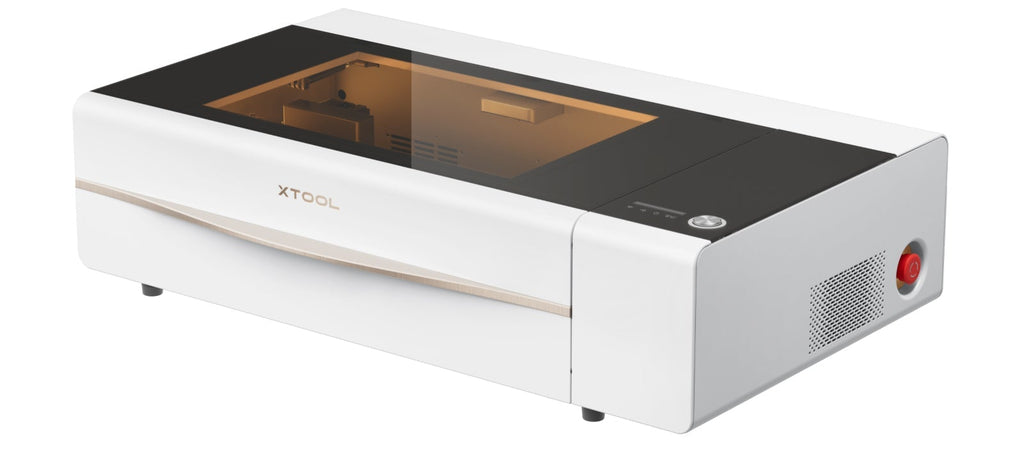

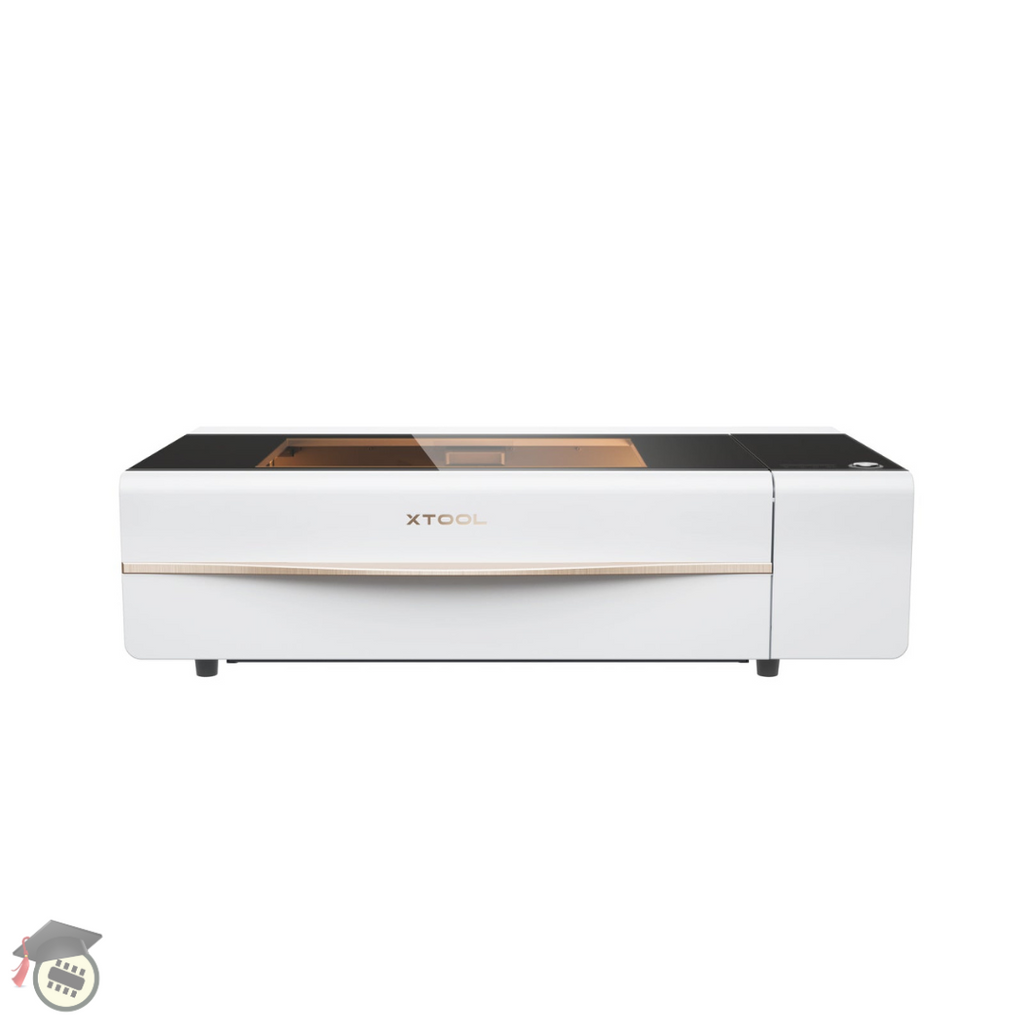

xTool P2S
Flagship Model of Desktop CO2 Laser Cutters
1. In both bitmap engraving and fill engraving modes, the engraving speed can reach up to 600mm/s.
2. According to xTool lab test data, distance tests conducted on low reflectivity materials, achieving an accuracy of 0.001 inches.
3. 26” x 14” bed size refers to the maximum area for material placement, while the working area is 23.6” x 12”.
4. 10 sets of Conveyor Rails are required to achieve the 118'' processing length.
5. It allows engraving on angled surfaces (up to 45 degrees), but performance may vary depending on use.

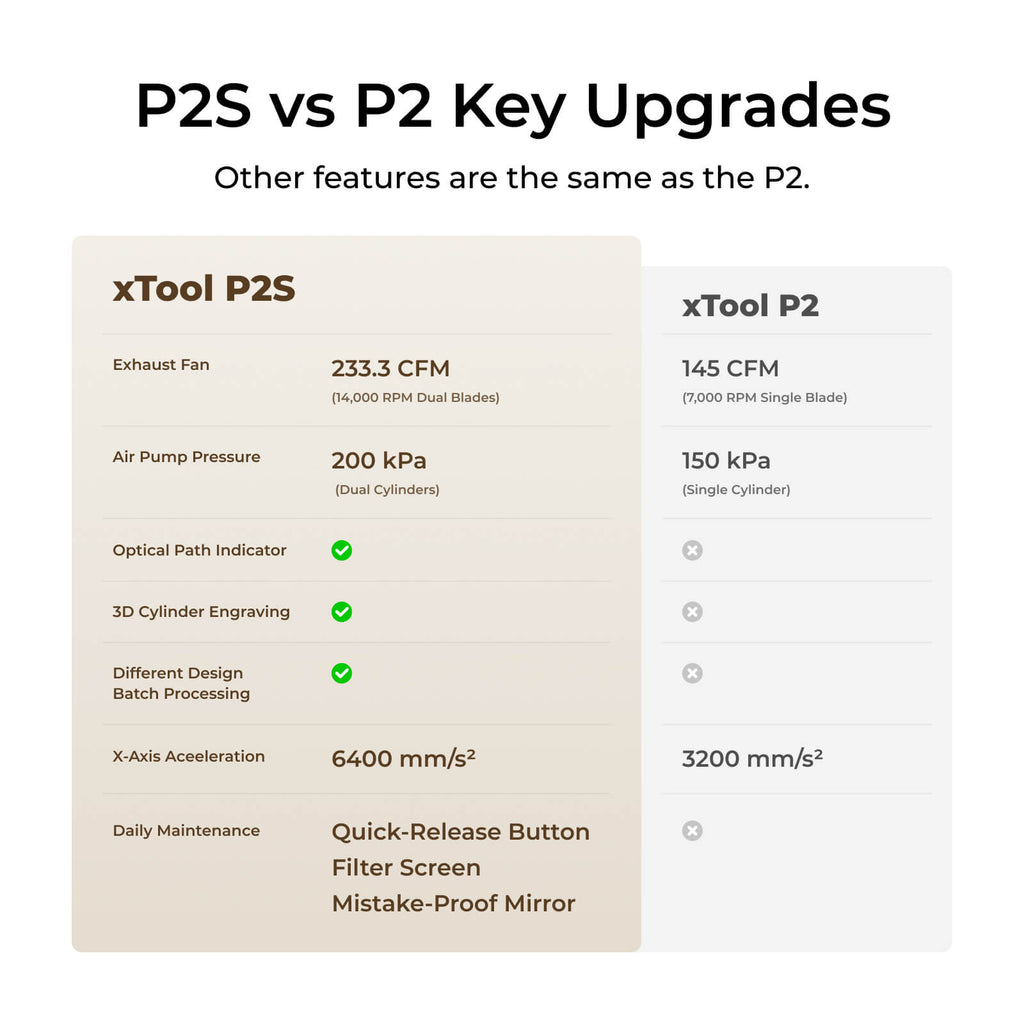

4 Key Upgrades in the P2S.
Based on user feedback, we've enhanced both hardware and software to make the best desktop co2 laser becomes better.
Optimized Airflow
Stronger Exhaust Fan & Air Pump
Easy Maintenance
Optical Path Solution ＆ Routine Cleaning
New Features
Cylinder Engraving ＆ Batch Processing 2.0
Higher-Speed Engraving
Faster X-Axis
Materials Unlocked, Creativity Unbounded.
The xTool P2S can engrave and cut across hundreds of materials. Your creativity is no longer limited by materials.
Game-ChangingEfficiency with YourPersonal Factory.
As a daily tool, product performance becomes particularly important. The xTool P2S boasts a leading 55W output and a large work area, perfect for handling diverse projects with ease.
Max 600mm/s engraving speed

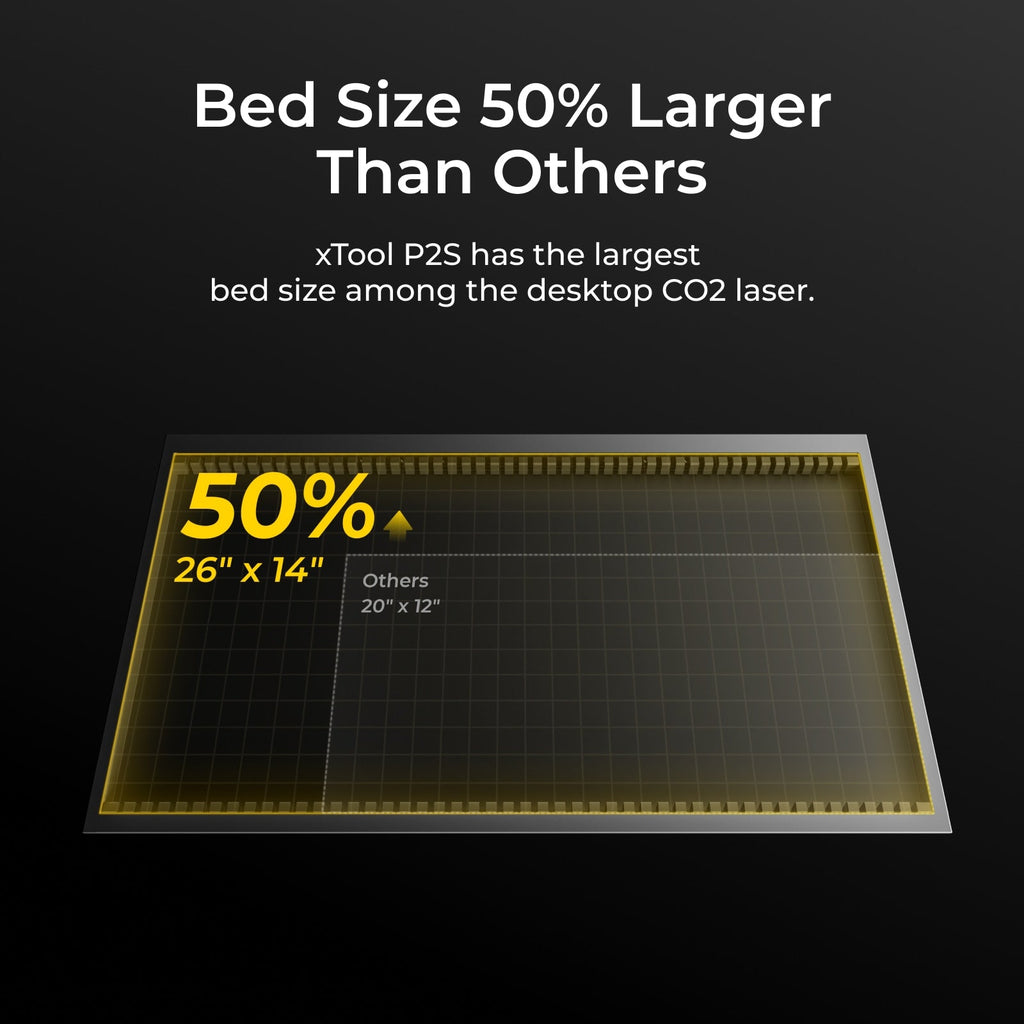

Up to 26 x 14 inches bed size
Up to 500% faster
cutting on materials* *According to xTool lab test data, the xTool P2S cuts 500% faster than other 40w diode laser machines.
Max 600mm/s
for enhanced performance* *Compared to the Laser Box, the xTool P2S has a 37% increase in output.

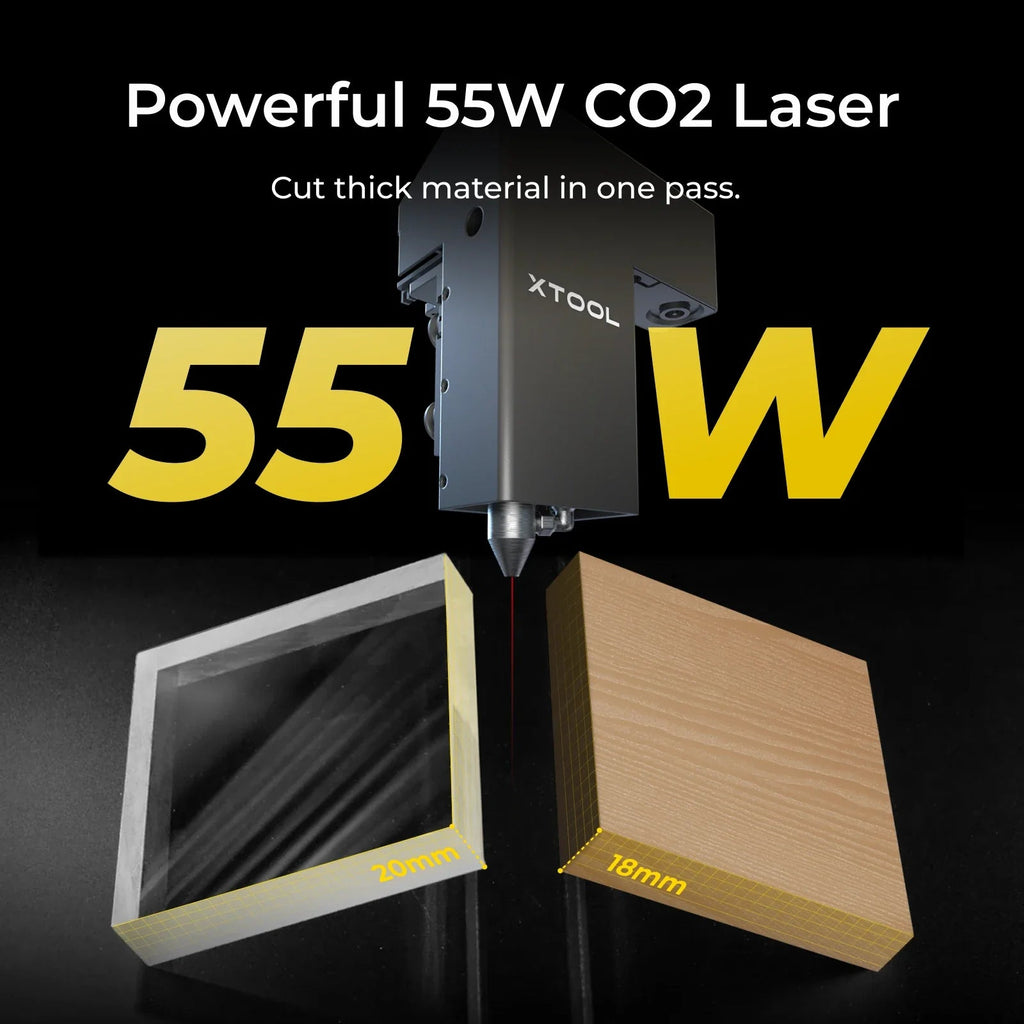

Cut Through Thick Materials Like Butter.
The CO2 laser's higher power and superior absorption rate enable it to effortlessly cut through thick materials like 20mm acrylic and 18mm black walnut, along with 100+ other materials in a single pass, achieving the best cutting results.
Unveil the Distinct Features.

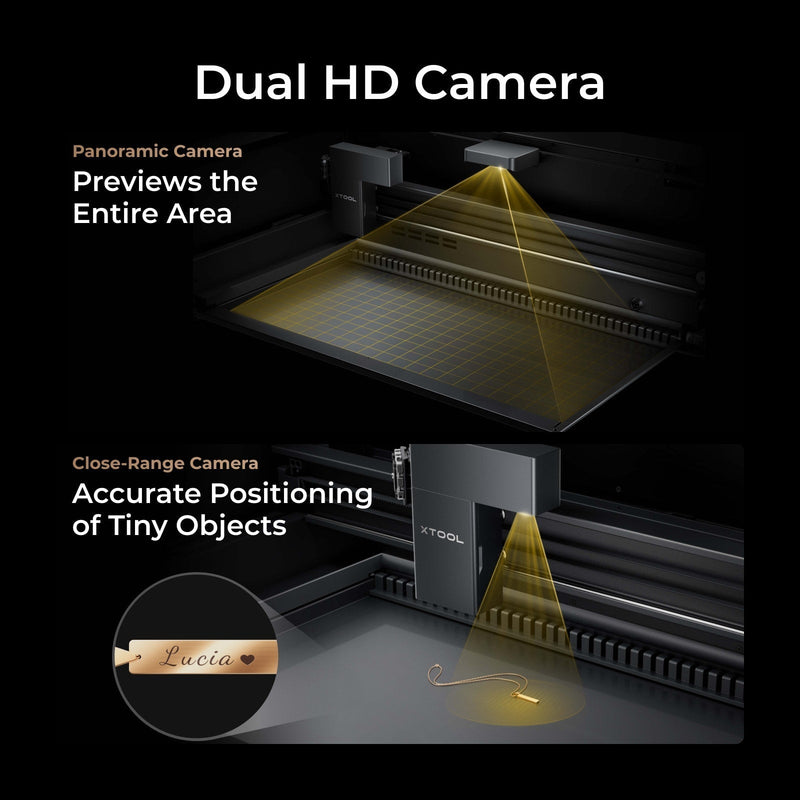

Dual HD Camera
Accurate Positioning of Tiny Objects.
The xTool P2S boasts an ultra-high dual 16MP resolution. Not only can you preview your overall design in real-time, but you can also see the detailson the material, ensuring error-free results
3D Curve™ Engraving
Engrave with Ease on Curved Surfaces.
xTool P2S's 3D Curve™ Engraving feature automatically creates perfect 3D models, expanding your creative possibilities with a variety of curved materials.

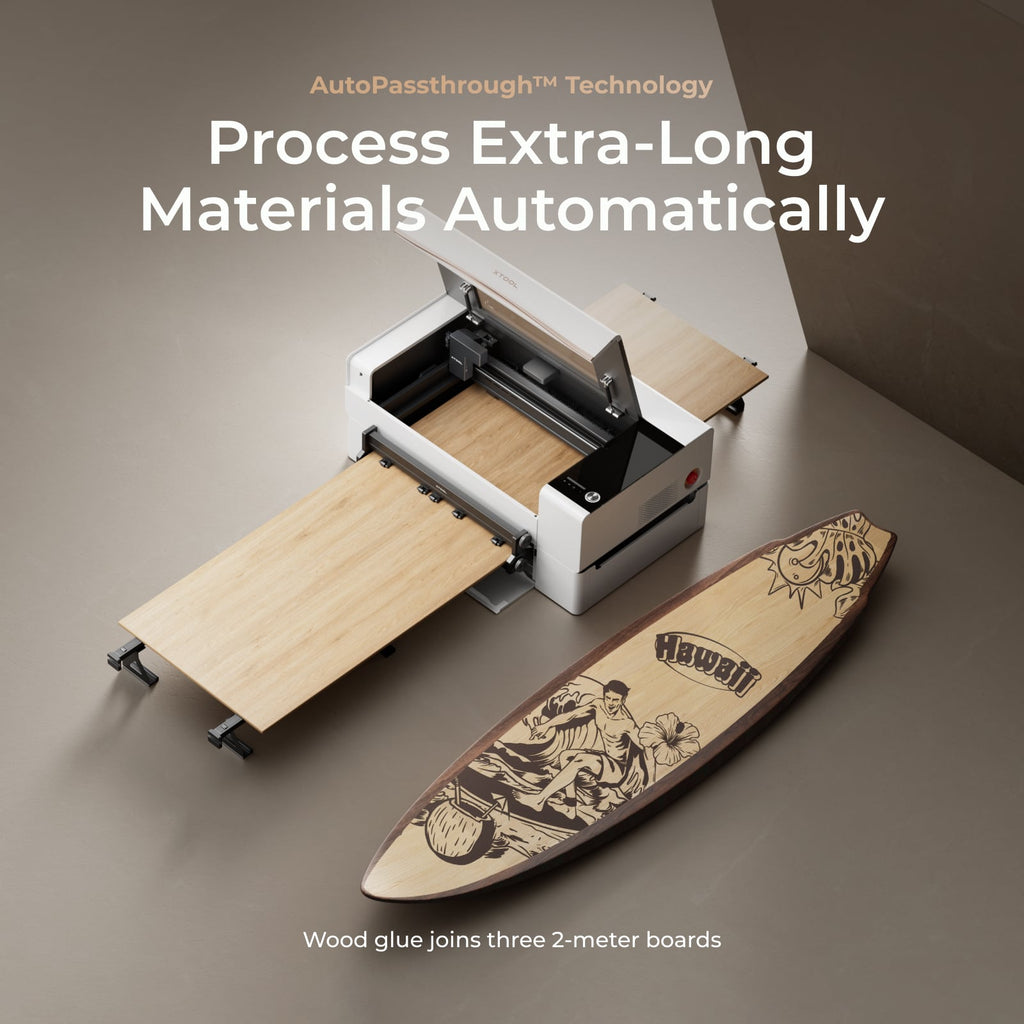

AutoPassthrough™ Technology
Process Materials Up to 3m Automatically.
Our AutoPassthrough™ Technology allows for seamless, precision engraving and cutting on materials up to 3 metres long.
LiDAR Ranging System
Autofocus with 0.001'' Precision.
Our integrated laser sensing technology (utilizes LiDAR and dGPU) achieves 100% autofocus and maintains distance measurement precision within 0.001'', ensuring cut-through every time.
Smart Fill for Efficiency.
With one click, multiple objects inside the workspace can be automatically recognized and intelligently filled with patterns on them. Add Colors, Boost Sales with xTool Screen Printer
As Simple as 1-2-3
Transform your ideas into amazing works with a process that's
surprisingly straightforward and simple.
Set Your Materials Without Testings.
Covering all xTool Selected materials, ever-growing, tested across all machines and processing types. Say goodbye to time-consuming testing grids.
No ideas?
Use AI Design.
Type your words, and watch as AI instantly crafts the visual style you envision.
Your Safety,
Our Priority.
Stay Safe with AI
Fire Detection
Unlike other types of sensors (such as light and smoke sensors), it will not incorrectly identify sunlight exposure, objects resembling the shape of flames, or smoke.
Automatic Lock
The machine's lid automatically keeps locked up during use, enhancing safety for households with children or pets.
Emergency Stop Button
xTool P2S has a built-in emergency stop button for a quick shutdown in case of emergency.
Enclosed Design
With the enclosed design and the light-filtering lid, there is no need to worry about light or smoke leakage.
Multiple-Warning System
xTool features a multi-alert system to ensure machine safety, monitoring motherboard temperature, cooling system status, water levels, and more.
Class 1 Laser Option
The xTool P2S comes in both Class 4 and Class 1 variants, with Class 1 designed for high safety environments. Choose Class 1 for maximum safety.
Excellent Smoke Exhaust System
Utilizing built-in 145CFM exhaust fan, simply place the exhaust pipe outside the window, and watch as the machine efficiently removes the smoke.
Unlock the Full Potential of Your xTool P2S.
| xTool P2S | xTool P2 | |
|---|---|---|
| Bed Size | 26.7''×14.1''(680x360mm) | 26.7''×14.1''(680x360mm) |
| Working Space | 23.6"×12" (600×305mm) | 23.6"×12" (600×305mm) |
| Laser Power | 55W CO₂ Laser | 55W CO₂ Laser |
| Product Size | 39.4"×25.1"×10.6" (1000×639×268mm) | 39.4"×25.1"×10.6" (1000×639×268mm) |
| Product Weight | 45kg | 45kg |
| Max. Working Speed | 600mm/s (X-Axis Acceleration 6400mm/s²) | 600mm/s (X-Axis Acceleration 3200mm/s²) |
| Max. Working Height | With tray 2.5"(64mm), Without tray 2.7"(71mm), With riser base 8.5"(215mm) | With tray 2.5"(64mm), Without tray 2.7"(71mm), With riser base 8.5"(215mm) |
| Rotary Engraving Diameter | With riser base 0-180mm, Without riser base 3-50mm | With riser base 0-180mm, Without riser base 3-50mm |
| Z-Axis Movement | 3"(75mm) | 3"(75mm) |
| Operating Ambient Temperature | 10-30°C (10-86℉) *If the temperature drops below 10°C (50℉), please add antifreeze under the guidance in the user manual. | 10-30°C (10-86℉) *If the temperature drops below 10°C (50℉), please add antifreeze under the guidance in the user manual. |
| Storage Temperature | 10-45°C (50-113℉) | 10-45°C (50-113℉) |
| Air Assist | 200 kPa (Dual Cylinders) | 150 kPa (Single Cylinder) |
| Exhaust Fan | 233.3 CFM(14,000 RPM Dual Blades) | 145 CFM(7,000 RPM Single Blade) |
| Optical Path Indicator | Included | Not Available |
| Daily Maintenance | Quick-Release Fan Button, Magnetic Filter Screen, Mistake-Proof Laser Mirror | Not Available |
| Water-Cooling System | Capacity: 1.4L(0.37gal) | Capacity: 1.4L(0.37gal) |
| Ranging System | LiDAR Ranging System (Processing Precision：0.01mm) | LiDAR Ranging System (Processing Precision：0.01mm) |
| Camera Type | Panoramic Camera + Close-Range Camera | Panoramic Camera + Close-Range Camera |
| Number of Pixels (Effective) | 16MP×2 | 16MP×2 |
| Vision Precision | 0.3mm | 0.3mm |
| Image Resolution | 1000 DPI | 1000 DPI |
| Focus Mode | Autofocus | Autofocus |
| Software | xTool Creative Space / Lightburn | xTool Creative Space / Lightburn |
| Connection | WiFi & USB | WiFi & USB |
| Support File | SVG / DXF / JPG / JPEG / PNG / BMP,etc | SVG / DXF / JPG / JPEG / PNG / BMP,etc |
| Support Systems | Android / iOS / iPad / Windows / macOS | Android / iOS / iPad / Windows / macOS |
